P0A7A-122








P311 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A7A-122: Generator Inverter Performance

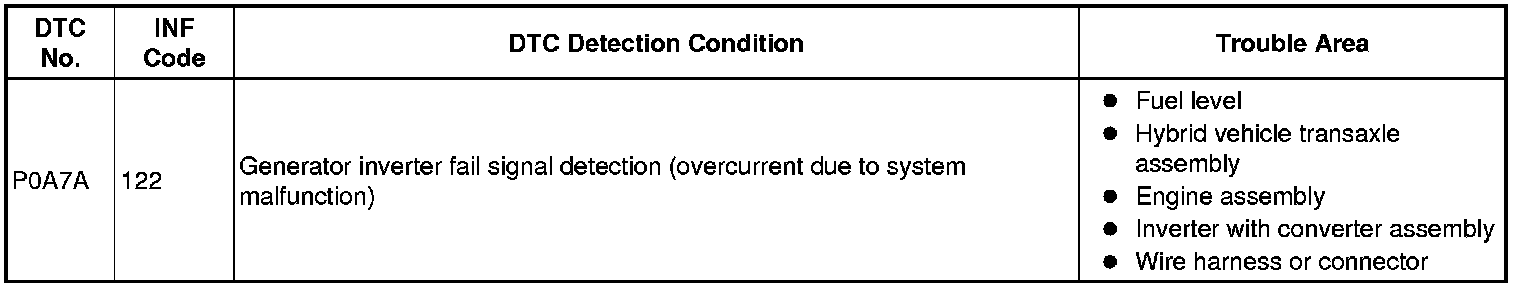

DTC P0A7A-122 - Generator Inverter Performance

DESCRIPTION

The inverter converts high-voltage direct current from the HV battery and alternating current for MG2 and MG1. The inverter contains a three-phase bridge circuit, which consists of six power transistors each for MG2 and MG1, that converts direct current to three-phase alternating current. The MG ECU controls the actuation of the power transistors. The inverter transmits information that is necessary for effecting control, such as the amperage and voltage, to the MG ECU.





The MG ECU uses a voltage sensor, which is built into the inverter, to detect boosted high voltage to allow control of the voltage boost.
The inverter voltage sensor outputs voltage that varies between 0 and 5 V in accordance with the changes in the high voltage. The higher the high voltage, the higher the output voltage, and the lower the high voltage, the lower the output voltage.
The MG ECU monitors the inverter voltage and detects malfunctions.

If the generator inverter circuit is opened or shorted, or if the circuit overheats, the information is transmitted from the inverter to the GFIV terminal of the MG ECU via the generator inverter fail signal line.






INSPECTION PROCEDURE
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT: Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK DTC OUTPUT (HV)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.

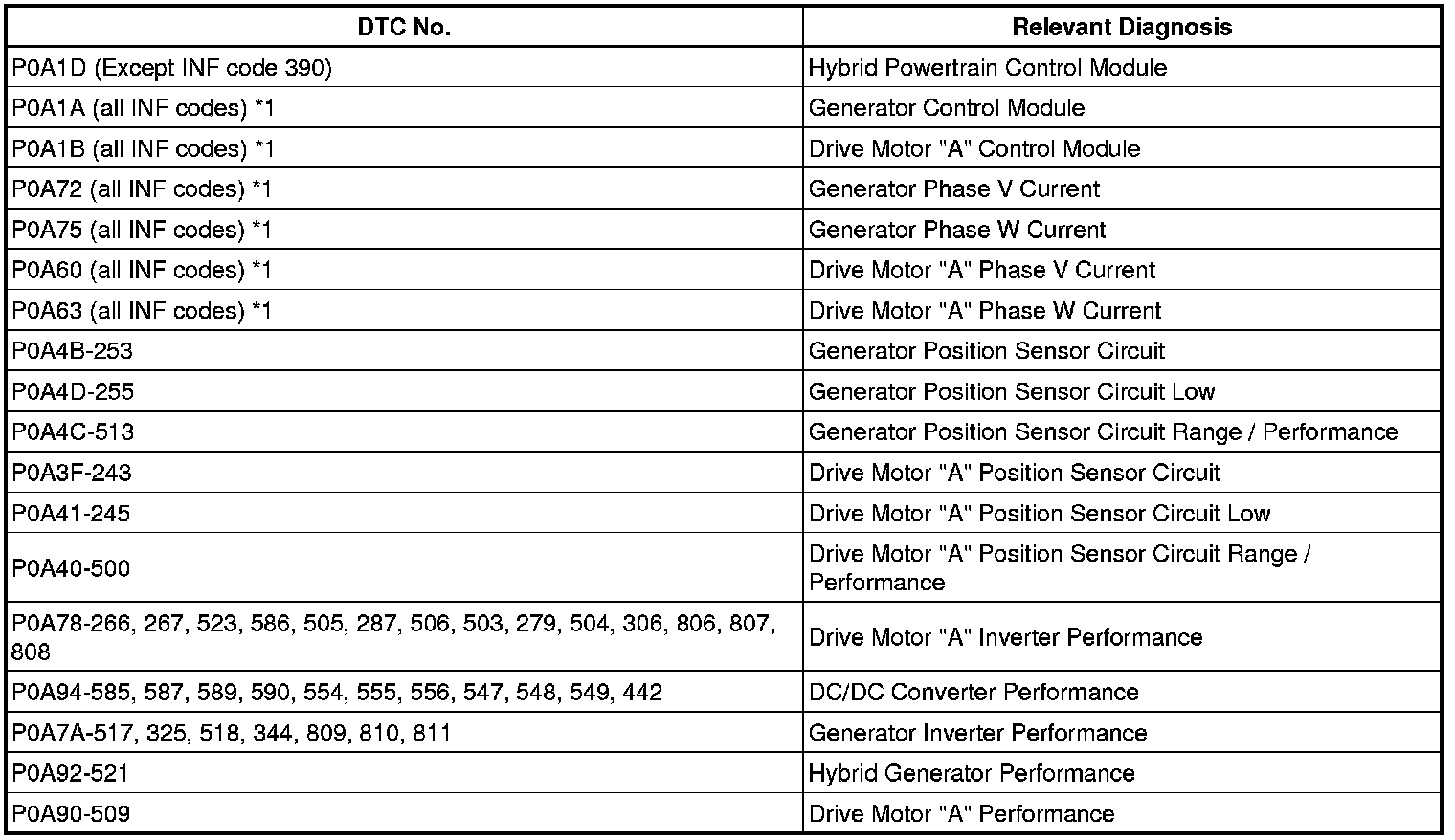

Result:





HINT:
- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic flowchart.
- Turning the power switch on (IG) with the service plug grip and inverter cover removed causes interlock switch system DTC P0A0D-350 to be output.
- P0A7A-122 may be output due to a malfunction which causes the DTCs in the table above to be output. In this case, first troubleshoot the output DTCs in the table above. Then, perform a reproduction test to check that no DTCs are output.

YES -- GO TO DTC CHART
NO -- Continue to next step.
2. CHECK AMOUNT OF GASOLINE
(a) Turn the power switch on (IG).
(b) Check the amount of fuel by referring to the fuel gauge in the meter.
OK:
Proper amount of fuel is in the tank.
NG -- REFUEL VEHICLE
OK -- Continue to next step.
3. CHECK ENGINE START
(a) Turn the power switch on (READY).
(b) Check if the engine starts.
HINT: Depressing the accelerator pedal with the shift lever in the P position will cause the engine to start.

OK:
The engine starts.
OK -- CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
NG -- Continue to next step.
4. INSPECT CRANKSHAFT PULLEY REVOLUTION (P POSITION)
(a) Turn the power switch off, move the shift lever to the P position, and lift up the vehicle.
(b) Turn the crankshaft pulley using hand tools to check if the crankshaft pulley can rotate.
CAUTION: Do not turn the power switch on (READY) while performing this inspection. Be sure to turn the power switch off before performing this inspection, to prevent the engine from starting.

OK:
The crankshaft pulley rotates.
(c) Lower the vehicle.
OK -- CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
NG -- Continue to next step.
5. INSPECT CRANKSHAFT PULLEY REVOLUTION (N POSITION)
(a) Lower the vehicle.
(b) Turn the power switch off, move the shift lever to the N position, and lift up the vehicle.
(c) Turn the crankshaft pulley using hand tools to check if the crankshaft pulley can rotate.
CAUTION: Do not turn the power switch on (READY) while performing this inspection. Be sure to turn the power switch off before performing this inspection, to prevent the engine from starting.

OK:
The crankshaft pulley rotates.
OK -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
NG -- REPAIR OR REPLACE ENGINE ASSEMBLY
6. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR) P0343
NG -- CONNECT SECURELY
OK -- Continue to next step.
7. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - GENERATOR RESOLVER) P0A1A
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
8. CHECK GENERATOR RESOLVER P0A1A
NG -- CHECK CONNECTOR CONNECTION CONDITION (GENERATOR RESOLVER CONNECTOR)
OK -- Continue to next step.
9. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLVER) P0A1B
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
10. CHECK MOTOR RESOLVER P0A1B
NG -- CHECK CONNECTOR CONNECTION CONDITION (MOTOR RESOLVER CONNECTOR)
OK -- Continue to next step.
11. CHECK INVERTER WITH CONVERTER ASSEMBLY (GENERATOR CABLE CONNECTION CONDITION) P0A1B
NG -- TIGHTEN TO SPECIFIED TORQUE
OK -- Continue to next step.
12. CHECK INVERTER WITH CONVERTER ASSEMBLY (MOTOR CABLE CONNECTION CONDITION) P0A1B
NG -- TIGHTEN TO SPECIFIED TORQUE
OK -- Continue to next step.
13. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MG1) P0A1B
NG -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
OK -- Continue to next step.
14. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MG2) P0A1B
NG -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY
15. CHECK CONNECTOR CONNECTION CONDITION (GENERATOR RESOLVER CONNECTOR) P0A1A
NG -- CONNECT SECURELY
OK -- Continue to next step.
16. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - GENERATOR RESOLVER) P0A1A
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
17. CHECK CONNECTOR CONNECTION CONDITION (MOTOR RESOLVER CONNECTOR) P0A1B
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
18. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLVER) P0A1B
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
