P0A80

HYBRID BATTERY CONTROL: HYBRID BATTERY SYSTEM: P0A80-123: Replace Hybrid Battery Pack

DTC P0A80-123 - Replace Hybrid Battery Pack

DESCRIPTION
The hybrid vehicle control ECU controls the SOC (state of charge) of the HV battery at a constant level while driving. The HV battery is composed of 34 modules, and each module consists of six 1.2 V cells in series. The battery smart unit monitors battery block voltage at 17 locations. Each battery block is composed of 2 modules in a set.









HINT: P0A80-123 cannot be set unless the vehicle is driven for approximately 10 minutes after clearing the DTCs. (Turn the power switch off and perform a road test again after the first road test because this DTC is a 2 trip detection DTC.)

MONITOR DESCRIPTION

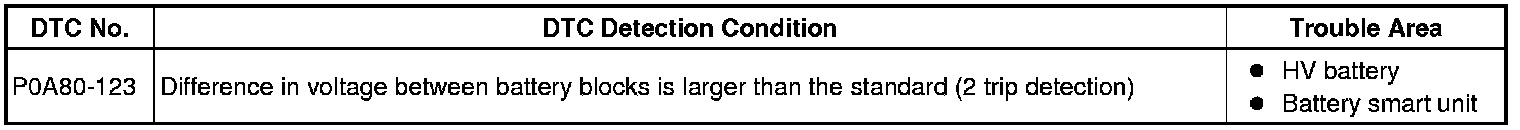

The battery smart unit, which monitors the voltage of the battery blocks, determines that a malfunction has occurred if a voltage difference between the battery blocks exceeds the standard. When the DTC detection condition is satisfied, the HV control ECU will illuminate the MIL and set a DTC.

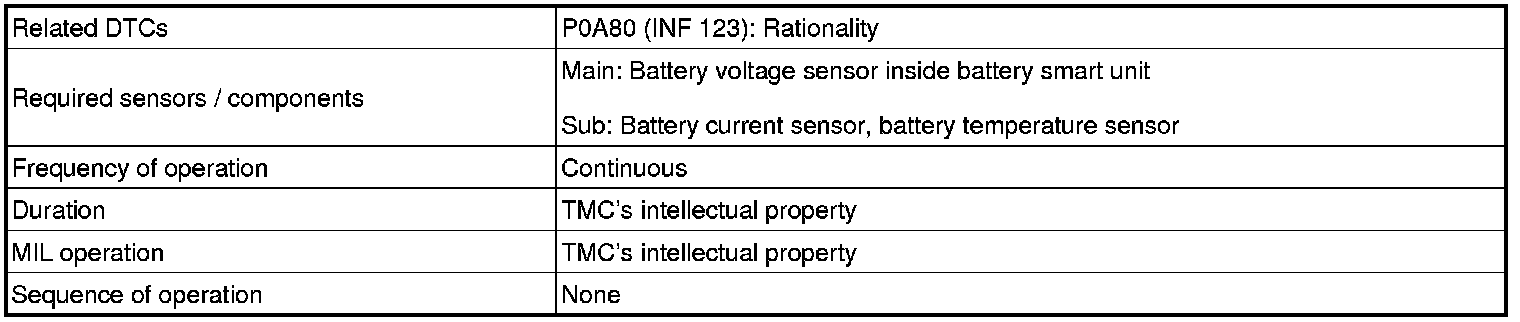

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTCS (DTC P0A1F-123 IS OUTPUT)
(a) Connect Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.
Result:
DTC P0A1F-123 is output.
YES -- GO TO INSPECTION PROCEDURE RELEVANT TO OUTPUT DTC
NO -- Continue to next step.
2. CHECK BATTERY SMART UNIT
(a) Ensure the safety of the areas in front and at the back of the vehicle.
(b) Connect Techstream to the DLC3.
(c) Turn the power switch on (READY).
(d) Select the following menu items: Powertrain / Hybrid Control / Data List / Battery Block Vol - V01 to V17.
(e) Fully warm up the engine and turn the air conditioning off.
(f) Firmly depress the brake pedal with your left foot.
(g) Move the shift lever to the D position.
(h) Record each battery block voltage in the data list ("Battery Block Vol - V01 to V17") while fully depressing the accelerator pedal.

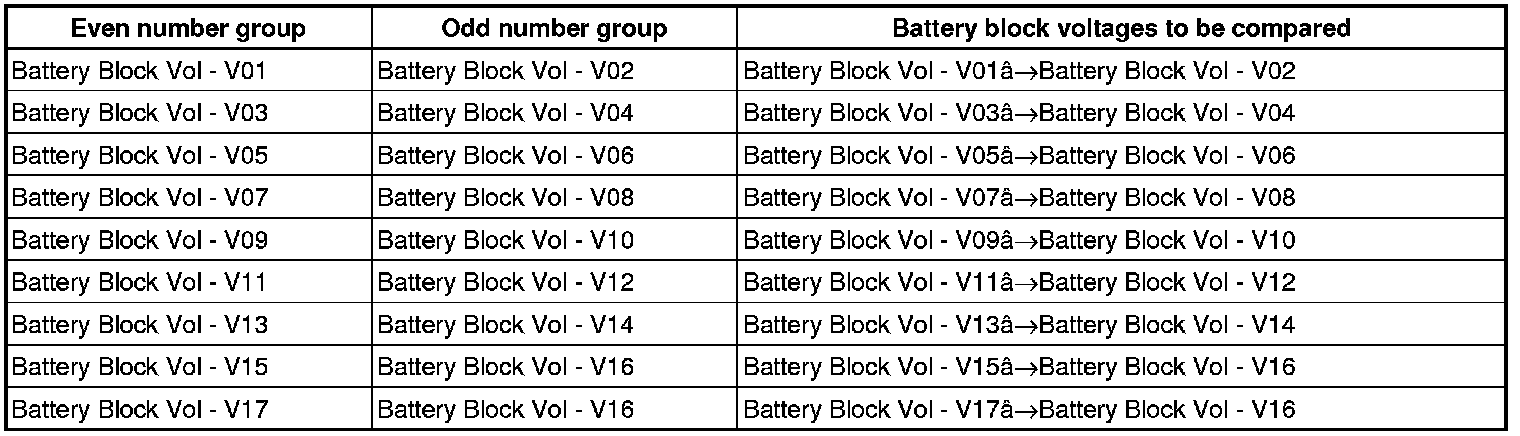

(i) Compare the battery block voltages ("Battery Block Vol - V01 to V17") between the even and odd number groups in each combination shown in the table below.





(j) Check if the difference in voltage of each combination is 0.3 V or more.

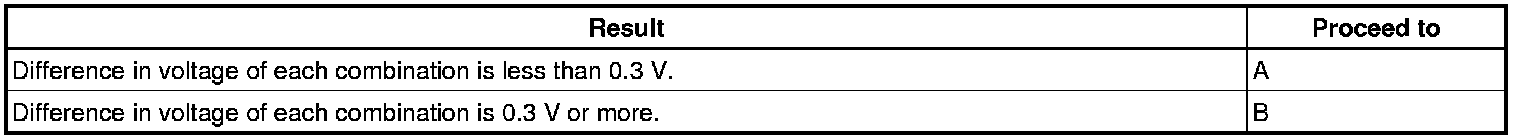

Result:





HINT: Difference in voltage of each combination may be 0.3 V or more due to a battery smart unit internal error.

B -- REPLACE BATTERY SMART UNIT
A -- REPLACE HV BATTERY
