P311 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A94-589,P0A94-590: DC / DC Converter Performance

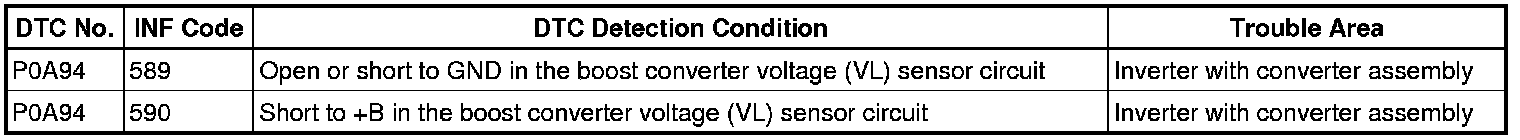

DTC P0A94-589 - DC / DC Converter Performance

DTC P0A94-590 - DC / DC Converter Performance

DESCRIPTION

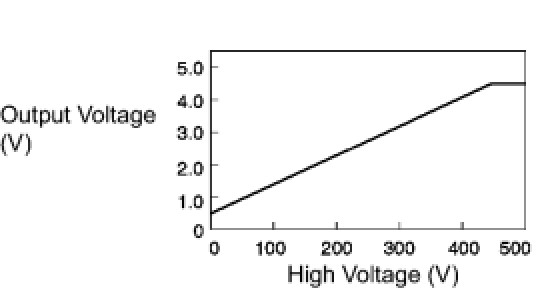

The MG ECU uses a voltage sensor that is built into the boost converter to detect pre-boost high voltage (VL) to allow boost control. The boost converter voltage sensor outputs a voltage that varies between 0 and 5 V in accordance with changes in the high voltage. The higher the high voltage, the higher the output voltage. Conversely, the lower the high voltage, the lower the output voltage. The MG ECU monitors the boost converter voltage sensor signal line and detects a malfunction.









MONITOR DESCRIPTION

The MG ECU monitors the boost converter voltage (VL) sensor circuit. If the MG ECU detects an open or short in the VL sensor circuit, the hybrid vehicle control ECU will illuminate the MIL and set a DTC.

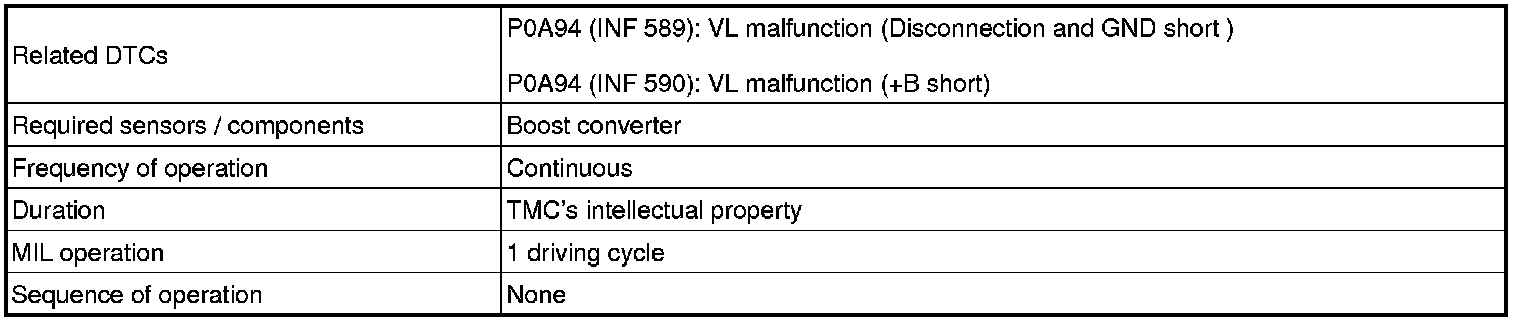

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT: Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. REPLACE INVERTER WITH CONVERTER ASSEMBLY
NEXT -- COMPLETED
