P3004-133

P311 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A1D-390,P3004-133: Hybrid Powertrain Control Module

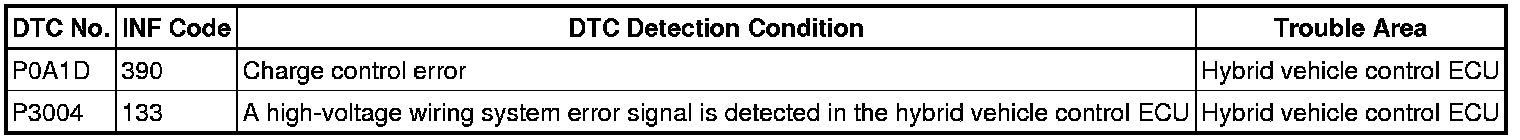

DTC P0A1D-390 - Hybrid Powertrain Control Module

DTC P3004-133 - Power Cable Malfunction

DESCRIPTION

The hybrid vehicle control ECU monitors its internal operation and detects malfunctions.






MONITOR DESCRIPTION

When the hybrid vehicle control ECU detects that the HV battery has received too much charge, the hybrid vehicle control ECU will illuminate the MIL and set a DTC.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT: Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK DTC OUTPUT (HV)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.
Result:
DTCs other than P0A1D-390 and P3004-133 are output.
YES -- GO TO DTC CHART
NO -- REPLACE HYBRID VEHICLE CONTROL ECU
