P3147-242

P311 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P3147-240,P3147-242: Transmission Malfunction

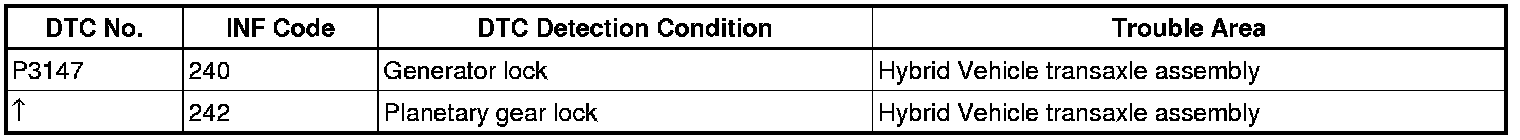

DTC P3147-240 - Transmission Malfunction

DTC P3147-242 - Transmission Malfunction

DESCRIPTION

The HV transaxle assembly consists of the planetary gear unit, MG1, and MG2. The gear unit uses the planetary gear to split engine output in accordance with a driving request while the vehicle is driven or the HV battery is charged. MG2 assists engine output while increasing vehicle driving force. MG2 also converts the energy, which is consumed in the form of heat during normal braking, into electrical energy and recover it into the HV battery to effect regenerative braking. MG1 supplies power, which is used for charging the HV battery or driving the MG2. It also controls the stepless transmission function of the transaxle by regulating the amount of electricity generated to change MG1 speed. In addition, the MG1 is used as a starter motor to start the engine. The transmission input damper absorbs the shock generated when the driving force from the engine is transmitted.






INSPECTION PROCEDURE
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT: Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK DTC OUTPUT (HV)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.
Result:
DTCs other than P3147-240 and P3147-242 are output.
YES -- GO TO DTC CHART
NO -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
