U0001

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: U0001: High Speed CAN Communication Circuit

DTC U0001 - High Speed CAN Communication Circuit

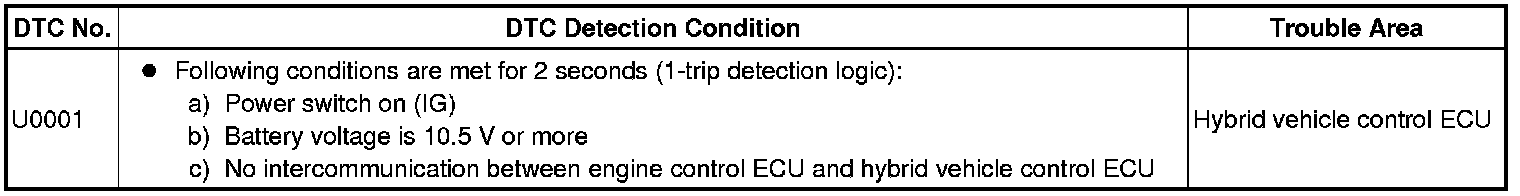

DESCRIPTION

There are two primary control roles for the hybrid vehicle control ECU. One role is engine control, the other role is hybrid system control. In the hybrid vehicle control ECU, there is a section equivalent to the ECM which is responsible for engine control, and a section referred to as the hybrid vehicle control ECU that is responsible for hybrid system control. These two exchange signals using CAN communication.
If there is a problem with this communication, a DTC is set.

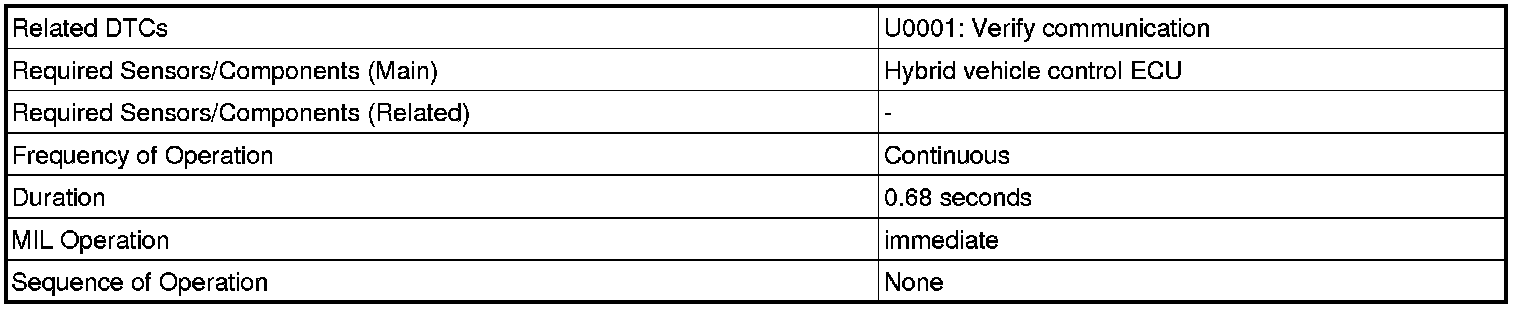

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC U0001)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus: Powertrain / Engine / Trouble Code.
(e) Read the DTCs.

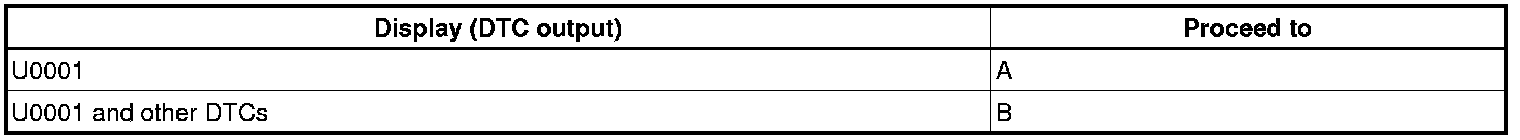

Result:






B -- GO TO DTC CHART
A -- REPLACE HYBRID VEHICLE CONTROL ECU
