Pinout Values and Diagnostic Parameters








NAVIGATION: NAVIGATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

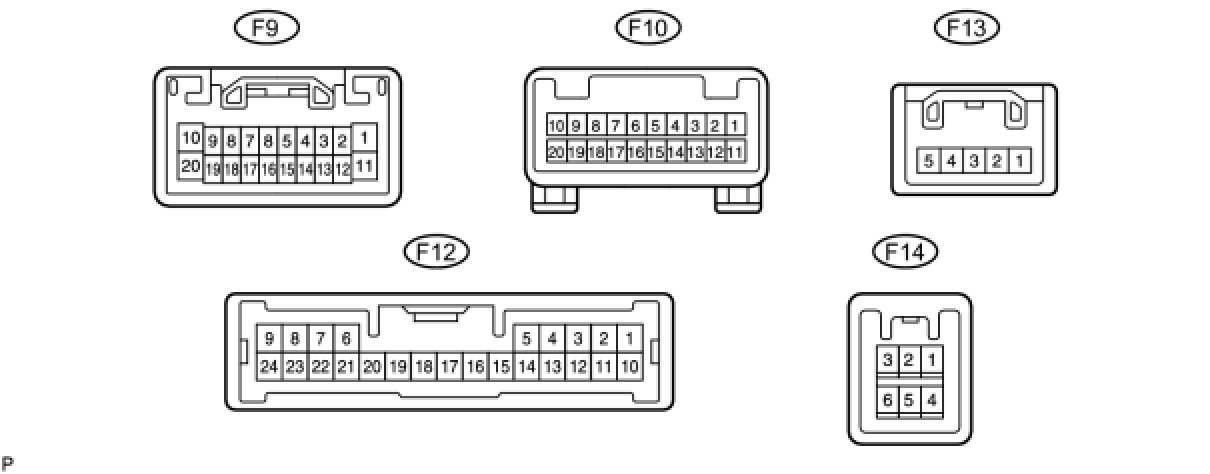

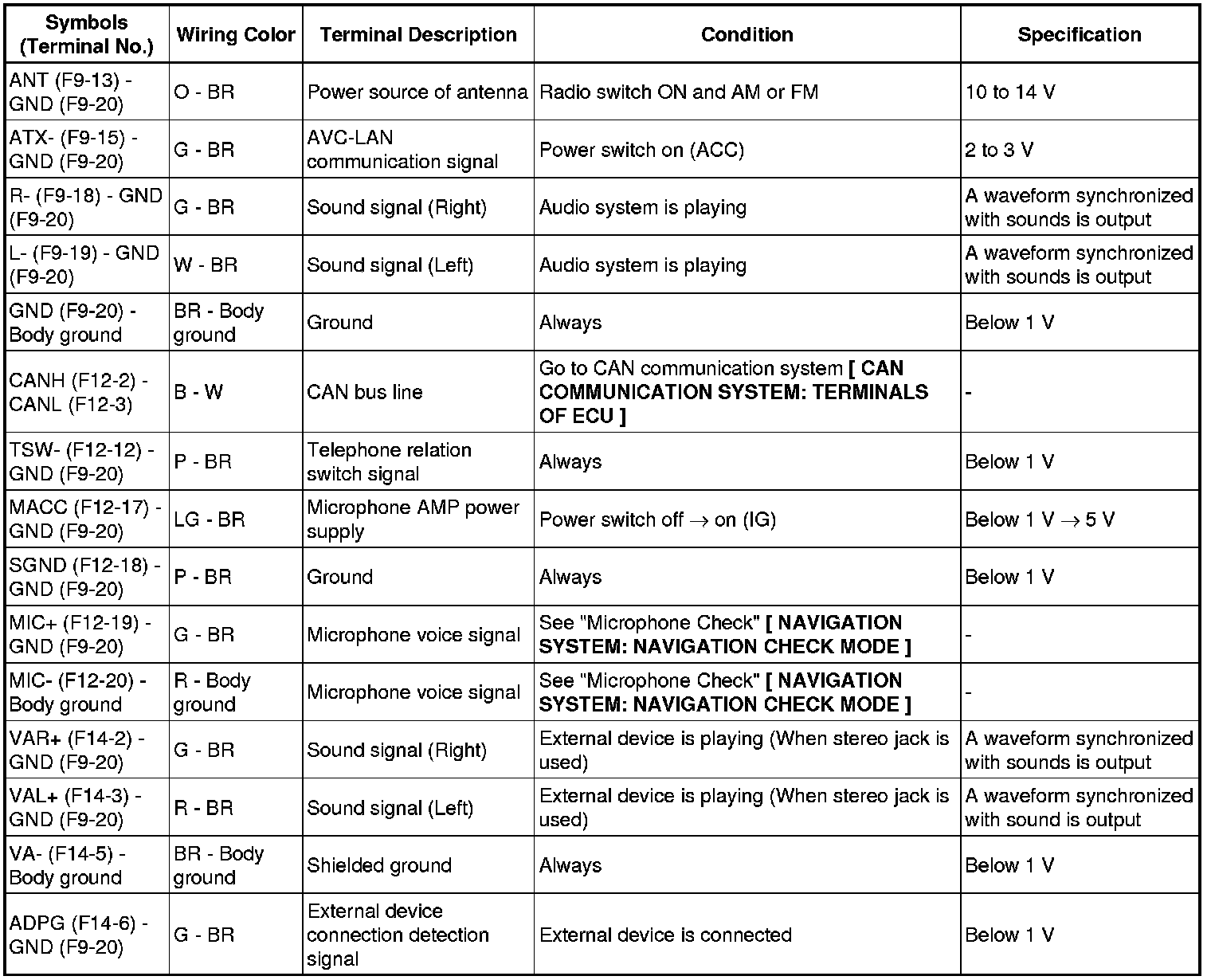

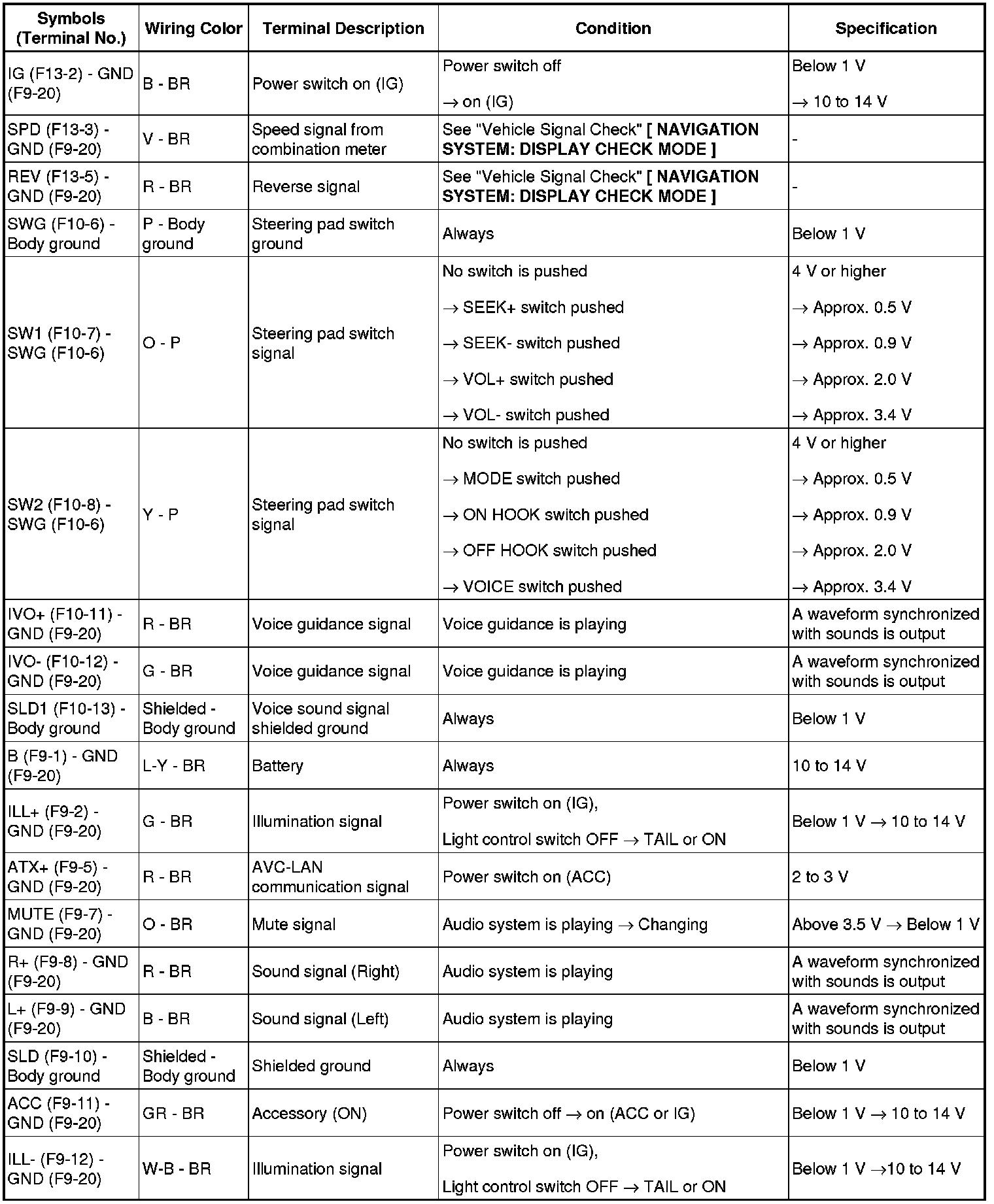

1. NAVIGATION RECEIVER ASSEMBLY













2. STEREO COMPONENT AMPLIFIER Pinout Values and Diagnostic Parameters
