Removal

AUDIO / VISUAL: FRONT SIDE SPEAKER: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH Disassembly
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG Disassembly
3. REMOVE ASSIST GRIP COVER Disassembly
4. REMOVE COURTESY LIGHT ASSEMBLY Disassembly
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
6. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP Disassembly
7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 4 bolts and front No. 1 speaker assembly.
NOTICE: Do not touch the cone part of the speaker.

8. REMOVE FRONT PILLAR GARNISH Removal

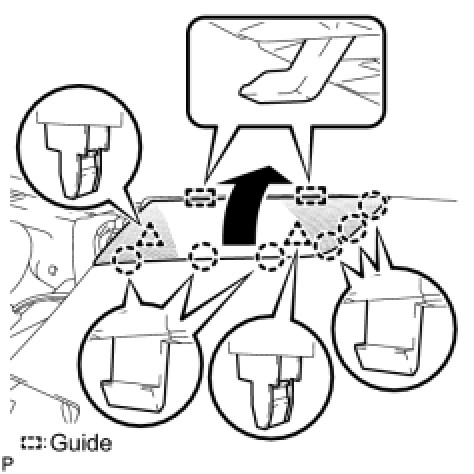

9. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY





(a) Engage the 6 claws and 2 clips.
(b) Remove the instrument panel No. 2 speaker panel sub-assembly.
10. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY





(a) Remove the 2 bolts and front No. 2 speaker assembly.
(b) Disconnect the connector.
