AUDIO / VISUAL: REAR SIDE SPEAKER: INSTALLATION

INSTALLATION

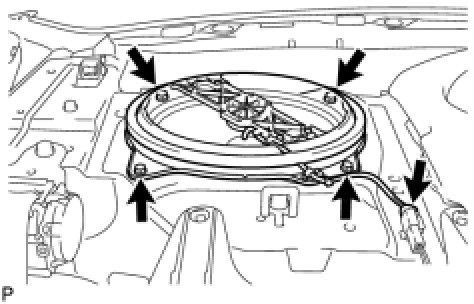

1. INSTALL REAR SPEAKER ASSEMBLY (for RH Side)





(a) Install the rear speaker assembly with the 4 bolts.
(b) Connect the connector.
(c) Install the partition pad.

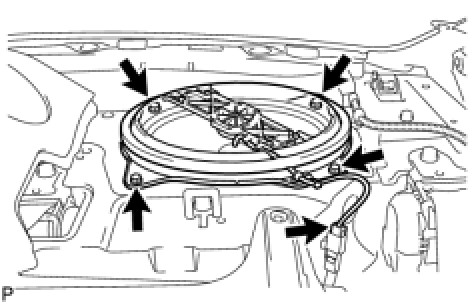

2. INSTALL REAR SPEAKER ASSEMBLY (for LH Side)





(a) Install the rear speaker assembly with the 4 bolts.
(b) Connect the connector.
(c) Install the partition pad.
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation
4. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Installation
5. INSTALL REAR SEAT SHOULDER BELT COVER Installation
6. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Installation
7. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Installation
8. INSTALL ROOF SIDE INNER GARNISH LH Installation
9. INSTALL ROOF SIDE INNER GARNISH RH Installation
10. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH Installation
11. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
12. INSTALL REAR DOOR SCUFF PLATE LH Installation
13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
14. INSTALL REAR DOOR SCUFF PLATE RH Installation
15. INSTALL REAR SIDE SEATBACK ASSEMBLY LH Installation
16. INSTALL REAR SIDE SEATBACK ASSEMBLY RH
17. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Installation
18. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Installation
19. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
20. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
21. INSTALL REAR SEAT HEADREST ASSEMBLY
