Pinout Values and Diagnostic Parameters

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

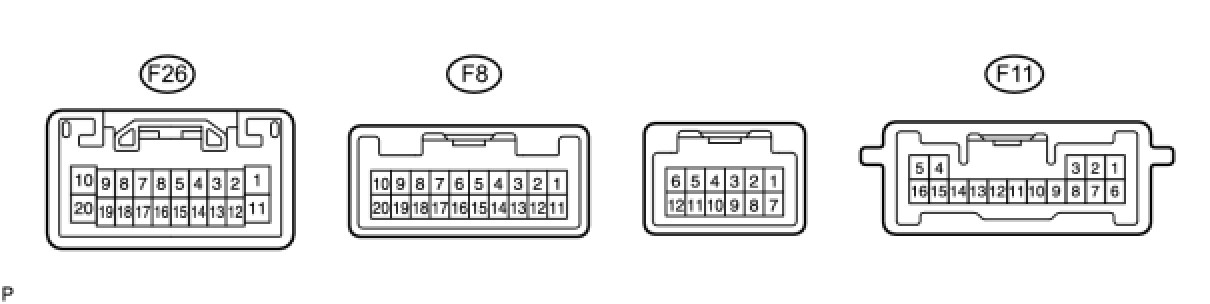

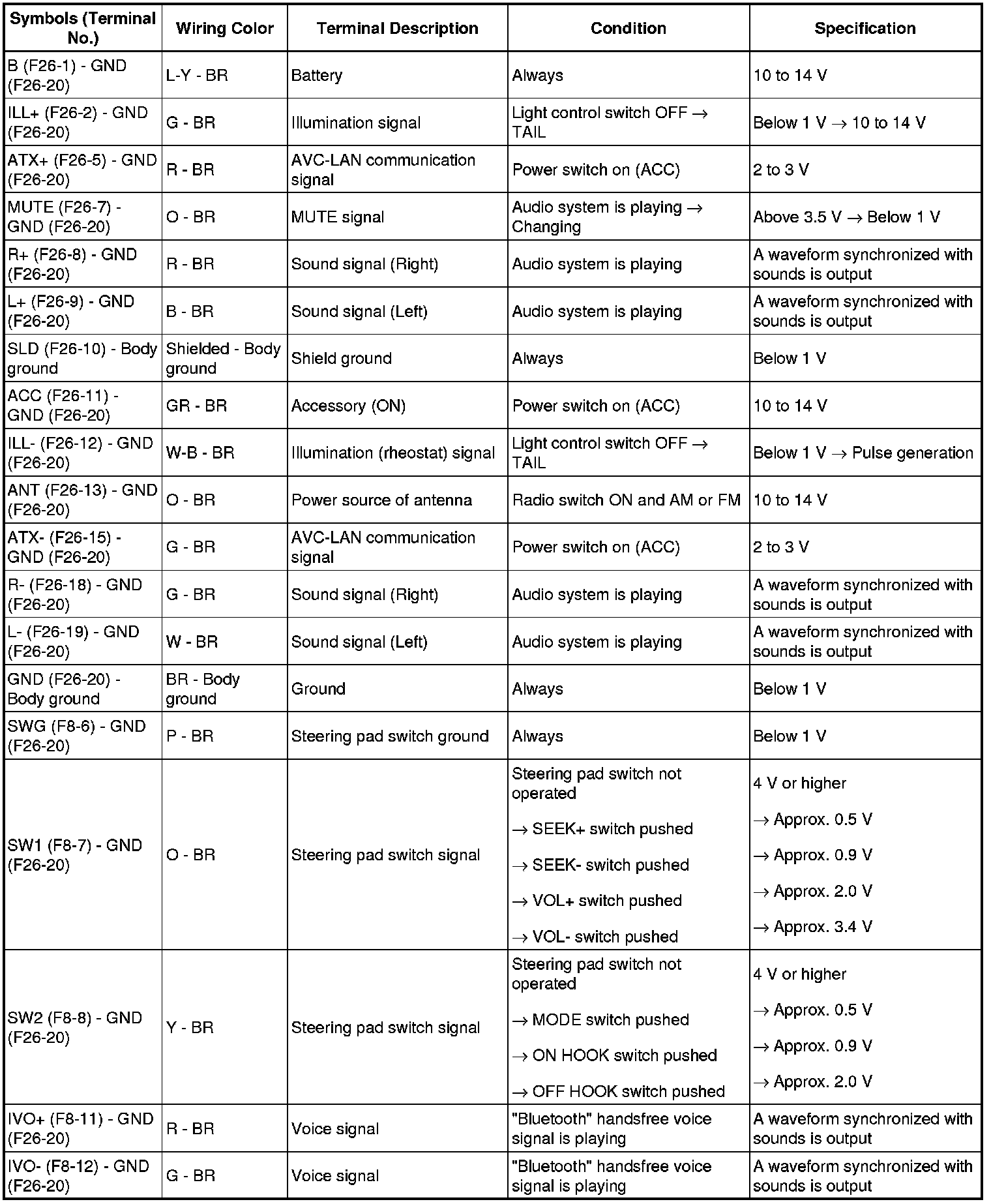

1. RADIO RECEIVER (for Premium Model)

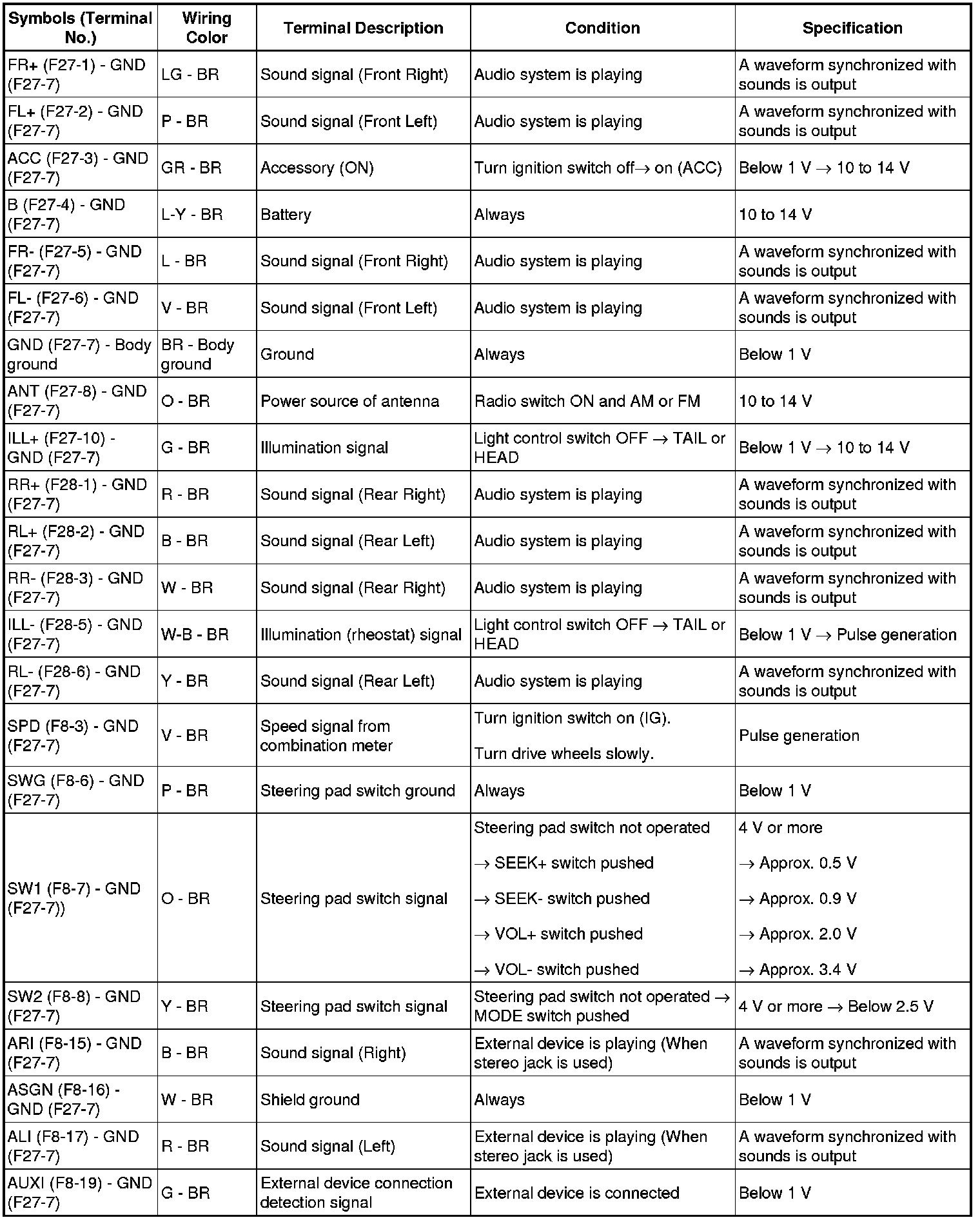

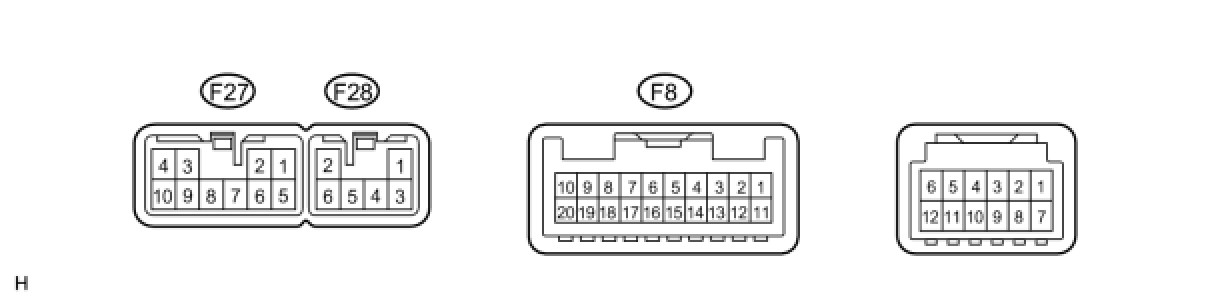

2. RADIO RECEIVER (for Standard Model)

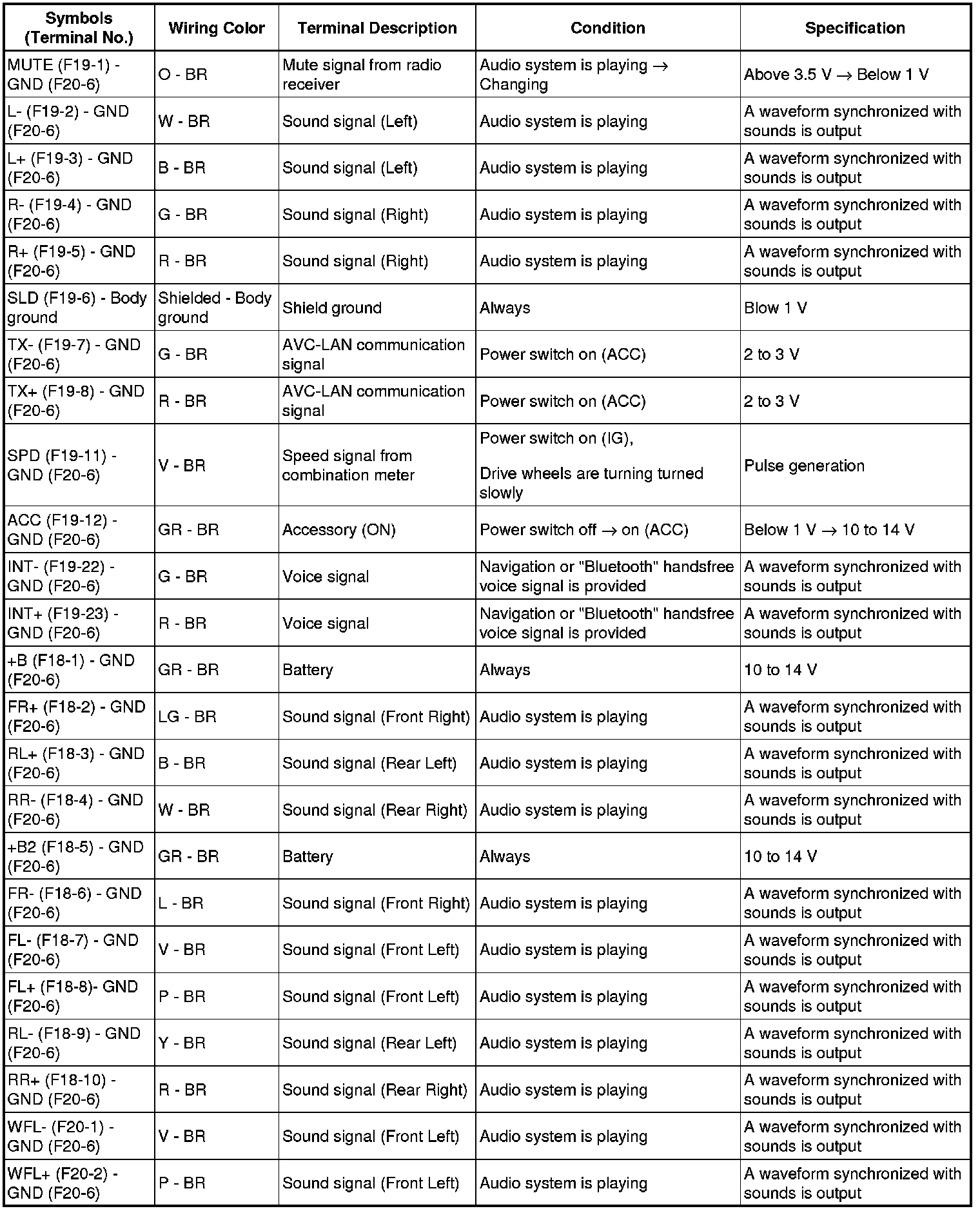

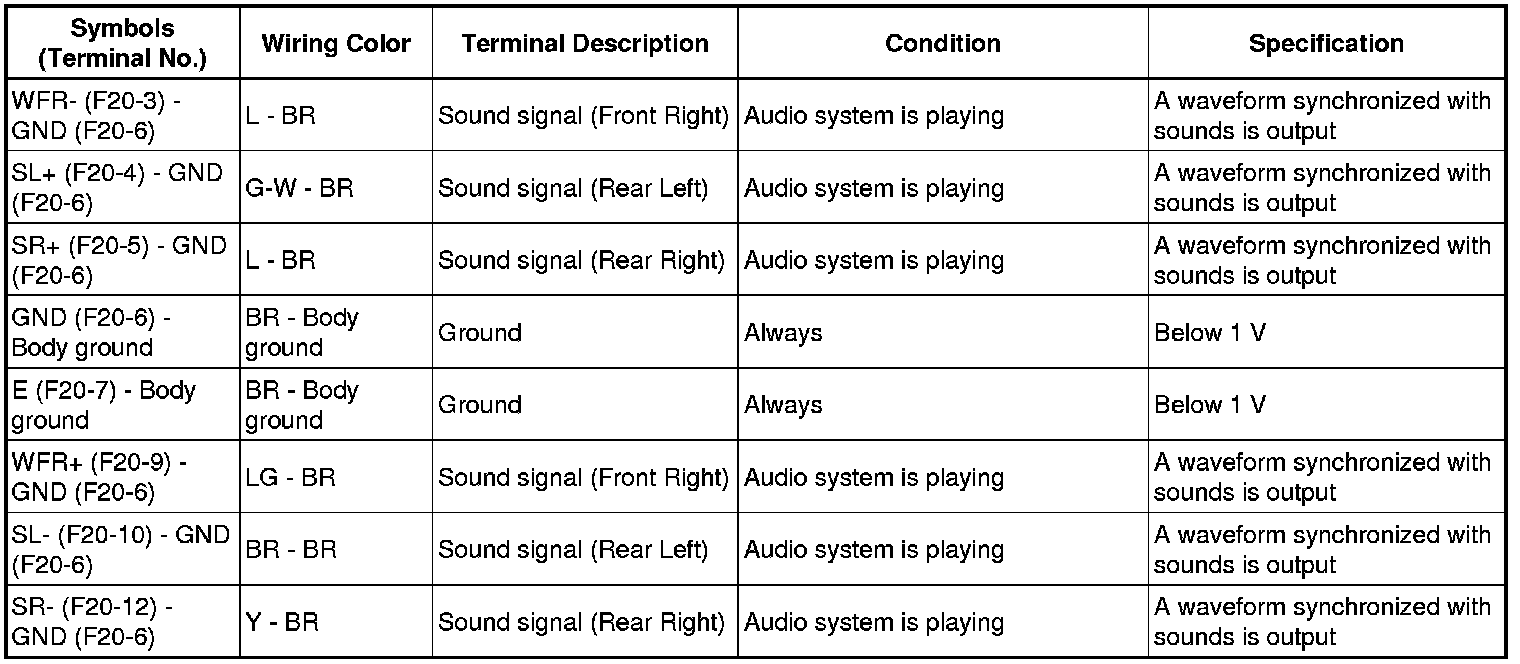

3. STEREO COMPONENT AMPLIFIER (for Premium Model)
