EXTERIOR: FRONT BUMPER: REMOVAL

REMOVAL

1. REMOVE FRONT BUMPER ASSEMBLY





(a) Put protective tape around the front bumper assembly.





(b) Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.
HINT: Use the same procedures for the RH side and LH side.

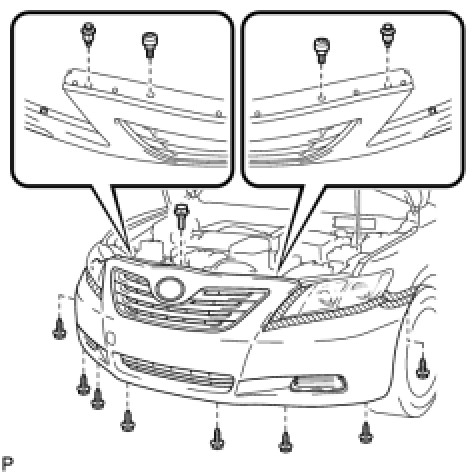

(c) Remove the 8 screws, 2 clips, 2 radiator grille protectors and bolt.





(d) Disengage the 2 claws and disconnect the front bumper assembly as shown in the illustration.
HINT: Use the same procedures for the RH side and LH side.

(e) Remove the front bumper assembly.
