Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Body and Frame
>>
Bumper
>>
Rear Bumper
>>
Service and Repair
>>
Components
Components

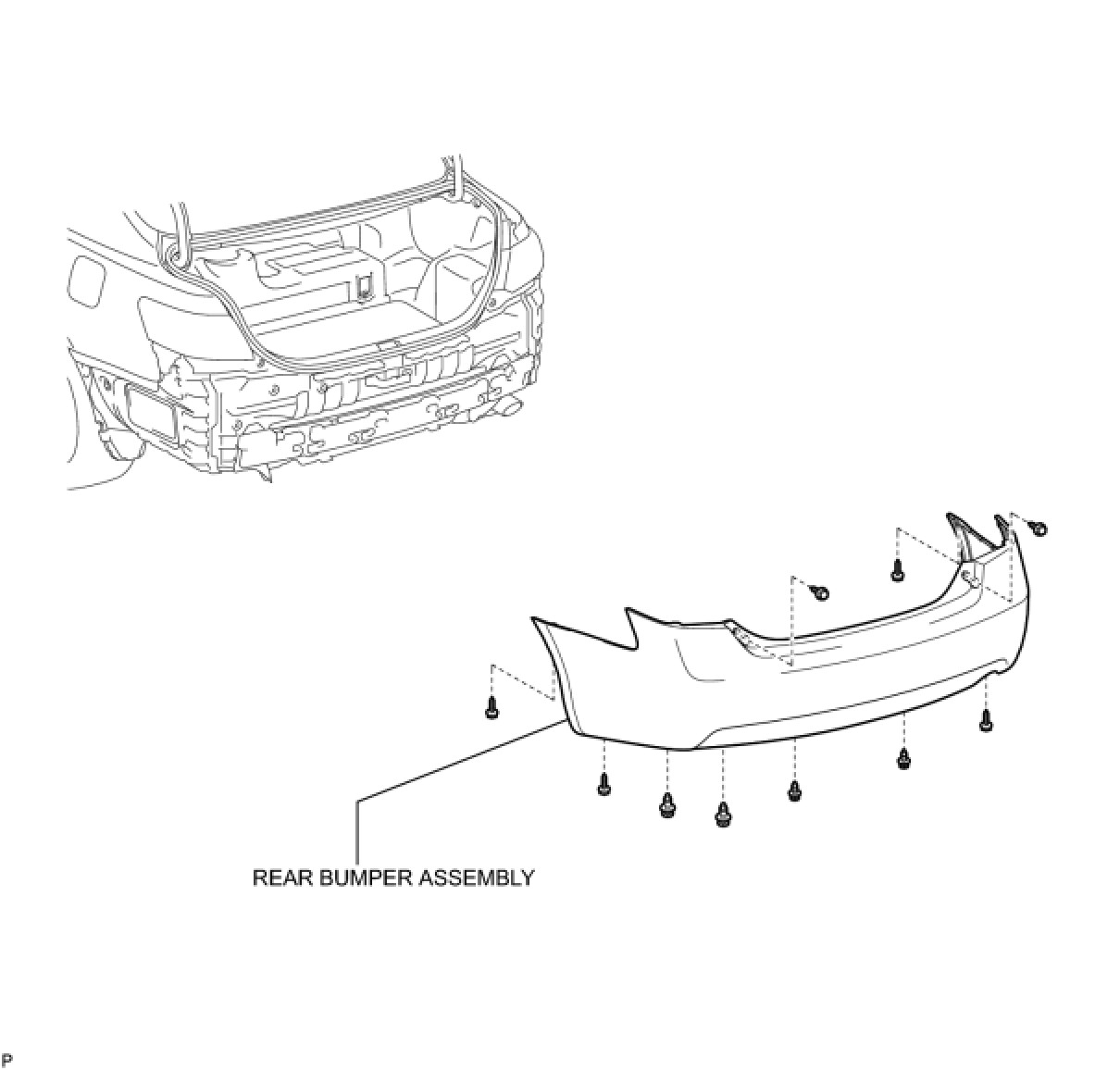

EXTERIOR: REAR
BUMPER
: COMPONENTS

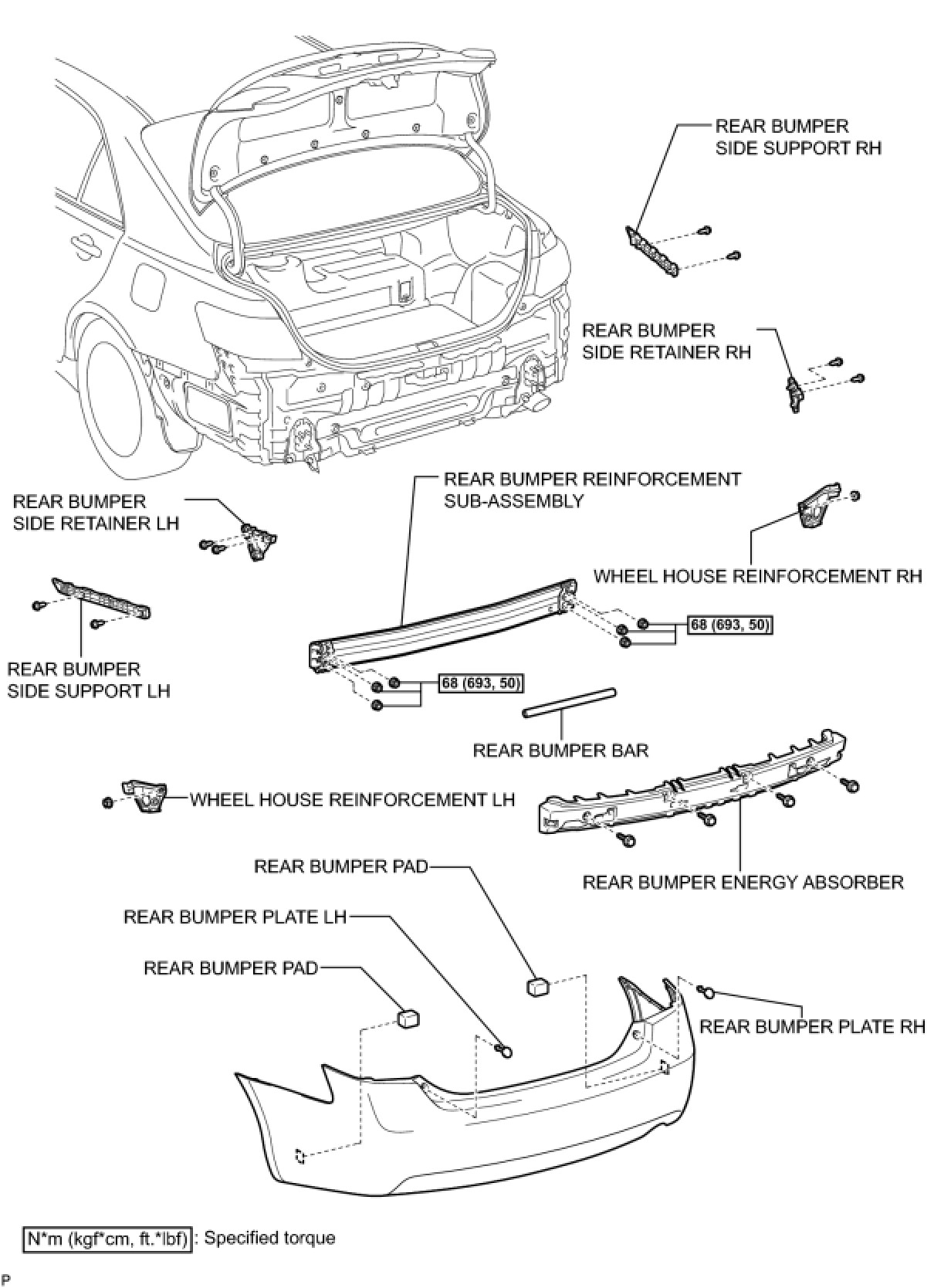

COMPONENTS
ILLUSTRATION
