Disassembly

EXTERIOR: REAR BUMPER: DISASSEMBLY

DISASSEMBLY

1. REMOVE REAR BUMPER PLATE LH
2. REMOVE REAR BUMPER PLATE RH
3. REMOVE REAR BUMPER PAD





(a) Remove the rear bumper pad.
HINT: Use the same procedures for the RH side and LH side.

4. REMOVE REAR BUMPER SIDE SUPPORT LH





(a) Remove the 2 screws.
(b) Disengage the 3 claws and remove the rear bumper side support LH.
5. REMOVE REAR BUMPER SIDE SUPPORT RH
6. REMOVE REAR BUMPER SIDE RETAINER LH





(a) Remove the 2 screws.
(b) Disengage the 3 claws and remove the rear bumper side retainer LH.
7. REMOVE REAR BUMPER SIDE RETAINER RH
8. REMOVE WHEEL HOUSE REINFORCEMENT LH





(a) Remove the nut and wheel house reinforcement LH.
9. REMOVE WHEEL HOUSE REINFORCEMENT RH

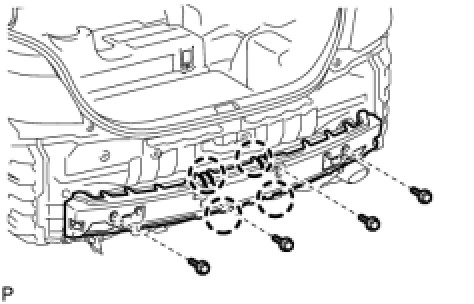

10. REMOVE REAR BUMPER ENERGY ABSORBER





(a) Remove the 4 bolts.
(b) Disengage the 4 claws and remove the rear bumper energy absorber.
11. REMOVE REAR BUMPER BAR





(a) Remove the rear bumper bar from the rear bumper energy absorber.

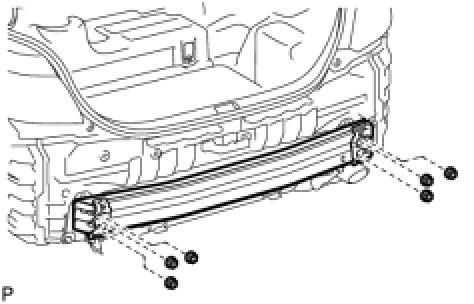

12. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY





(a) Remove the 6 nuts and rear bumper reinforcement sub-assembly.
