Aerodynamics

Aerodynamics

To improve aerodynamic performance, the following measures have been taken.

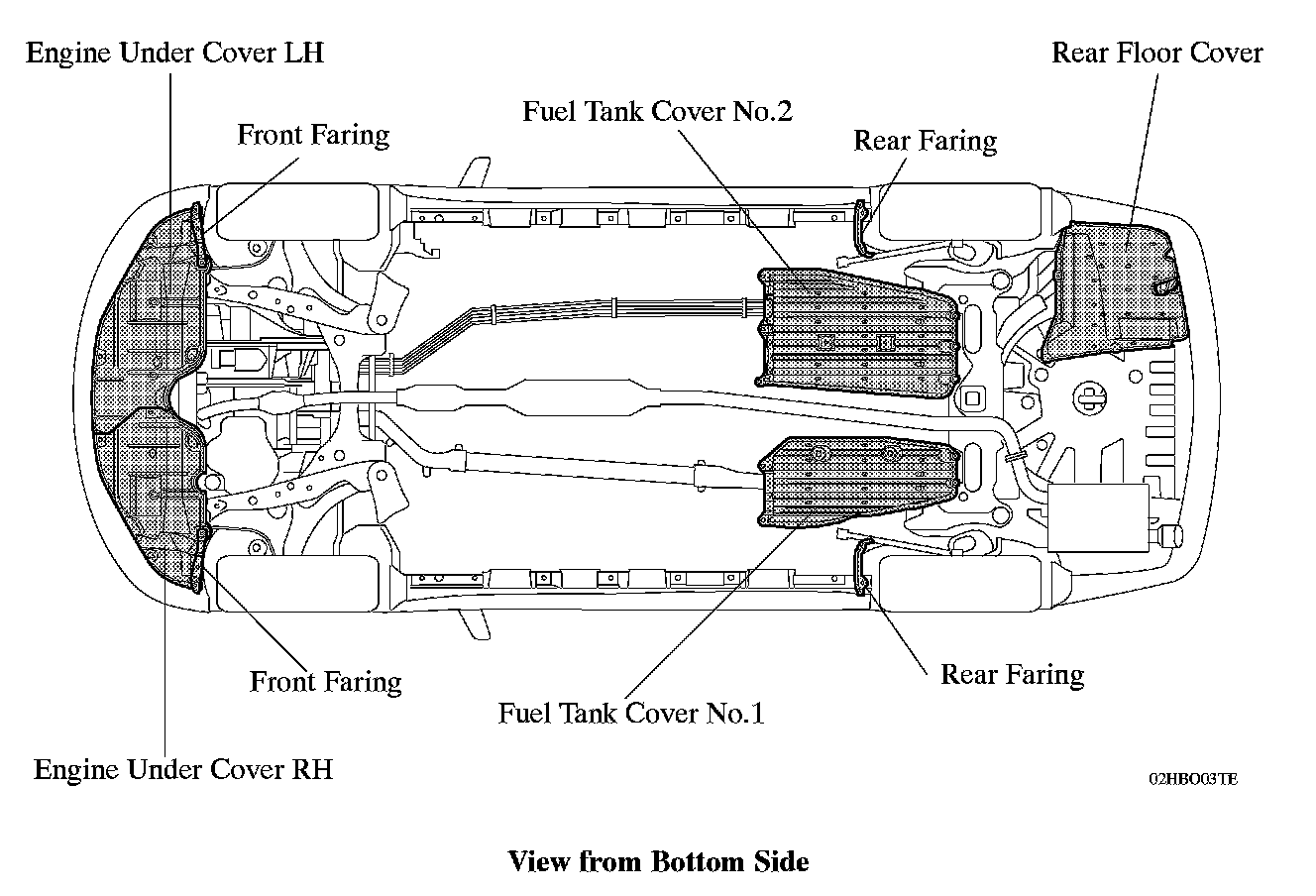

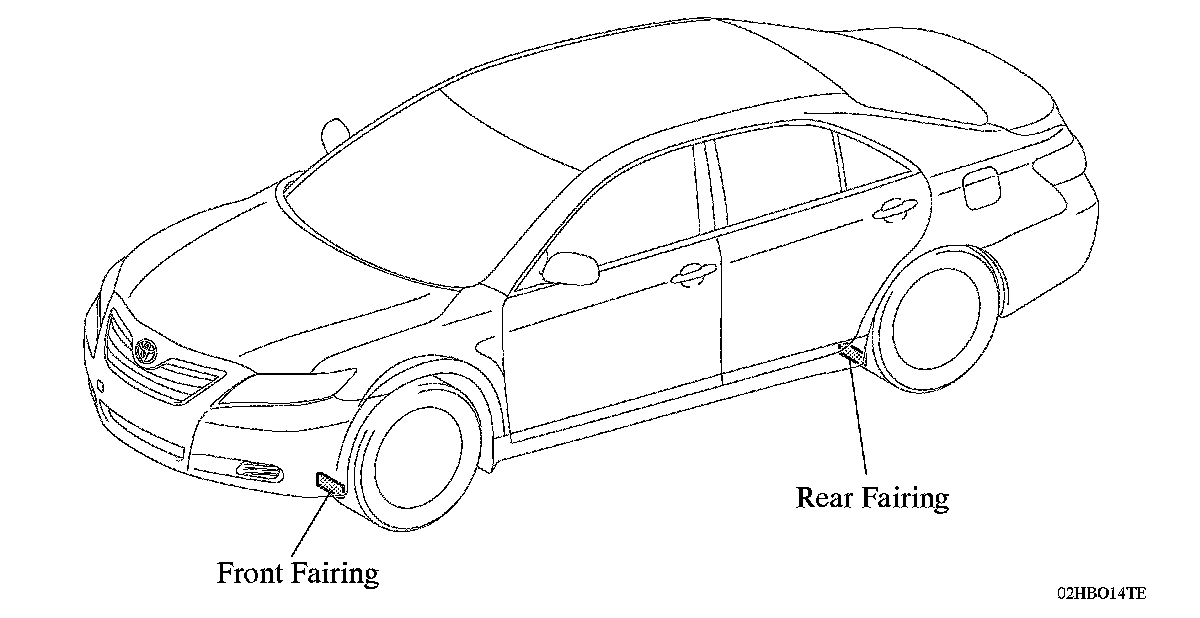

^ Front and rear fairings are provided to smooth out the airflow around the tires and reduce the air resistance while the vehicle is in motion.

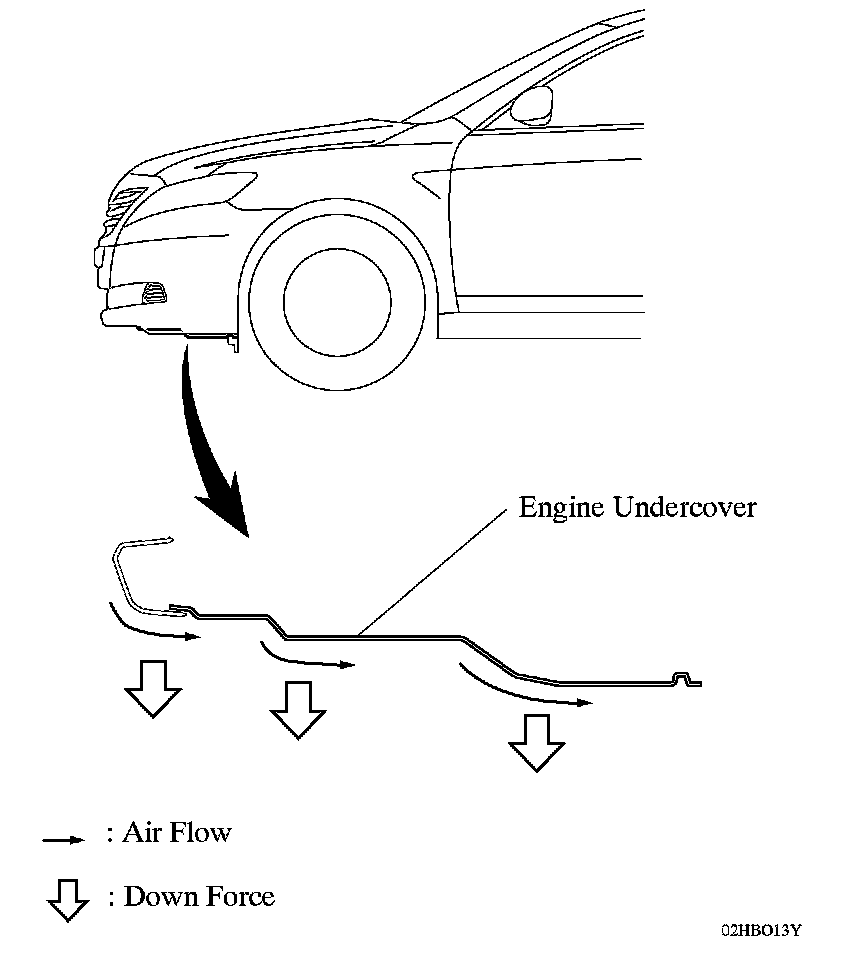

^ The engine undercover has been formed into a step shape to increase the velocity of the air flowing underneath the vehicle. This creates a vacuum and suppresses the lift force, thus, excellent maneuverability and stability have been achieved.





^ The use of the rectification parts and the flat vehicle bottom provides smooth airflow underneath the vehicle.
