ENGINE HOOD / DOOR: FUEL LID OPENER MOTOR ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE SPARE WHEEL COVER CLAMP
3. REMOVE SPARE WHEEL COVER ASSEMBLY
4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal
5. REMOVE REAR FLOOR FINISH PLATE Removal
6. REMOVE LUGGAGE COMPARTMENT REAR TRIM COVER Removal
7. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH Removal
8. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

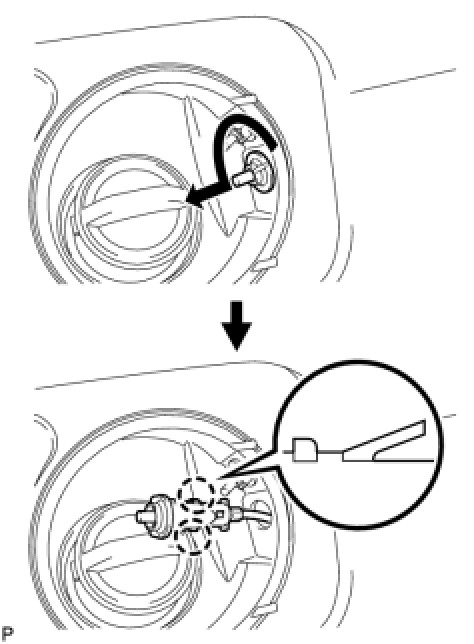

(a) Turn the fuel filler opening lid lock retainer as shown in the illustration and pull it toward the front of the vehicle.
(b) Disengage the 2 claws and remove the fuel filler opening lid lock retainer.
9. REMOVE FUEL LID OPENER MOTOR ASSEMBLY

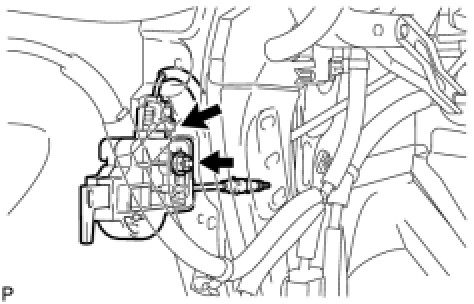

(a) Remove the nut and fuel lid opener motor assembly.
(b) Disconnect the connector.
