Fuel Door Release Actuator: Testing and Inspection

ENGINE HOOD / DOOR: FUEL LID OPENER MOTOR ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT FUEL LID MOTOR ASSEMBLY

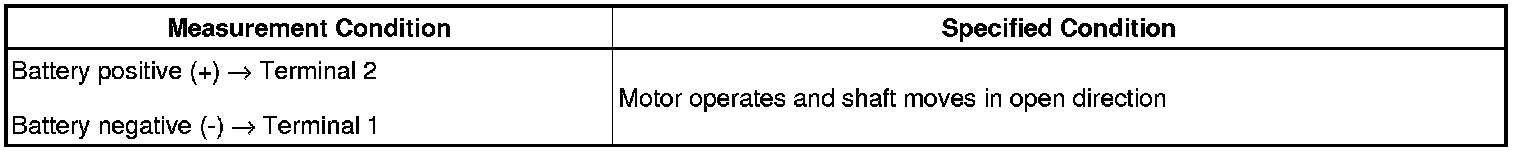

(a) Apply battery voltage to the lock control and check the motor operates in the open direction.
Standard:





If the result is not as specified, replace the fuel lid opener motor assembly.
(b) Check the shaft stroke.
Standard:
10.3 mm (0.406 in.) or more
If the result is not as specified, replace the fuel lid opener motor assembly.
