ENGINE HOOD / DOOR: FUEL LID OPENER SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

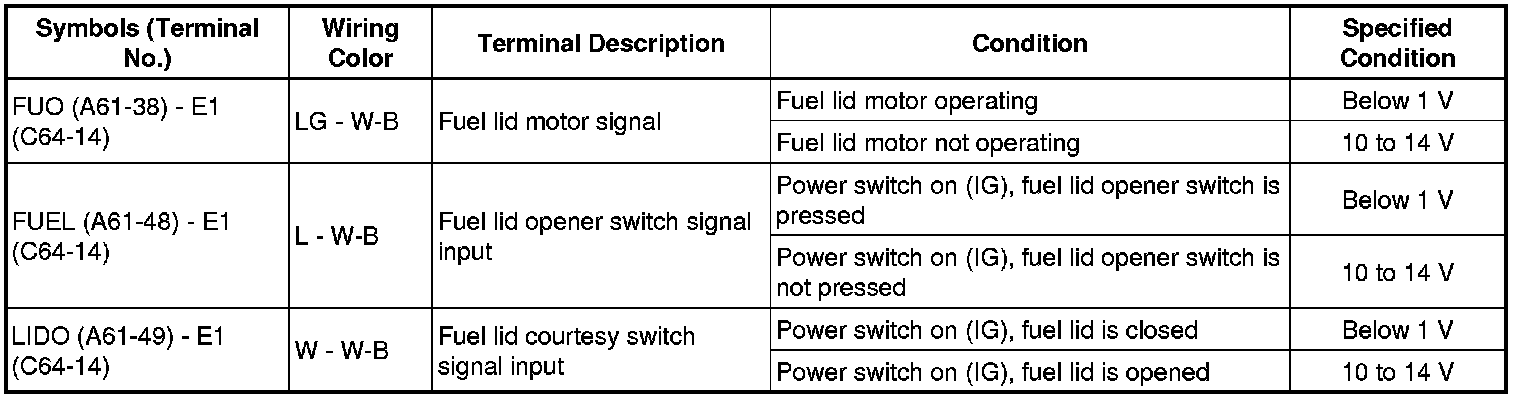

1. HYBRID VEHICLE CONTROL ECU

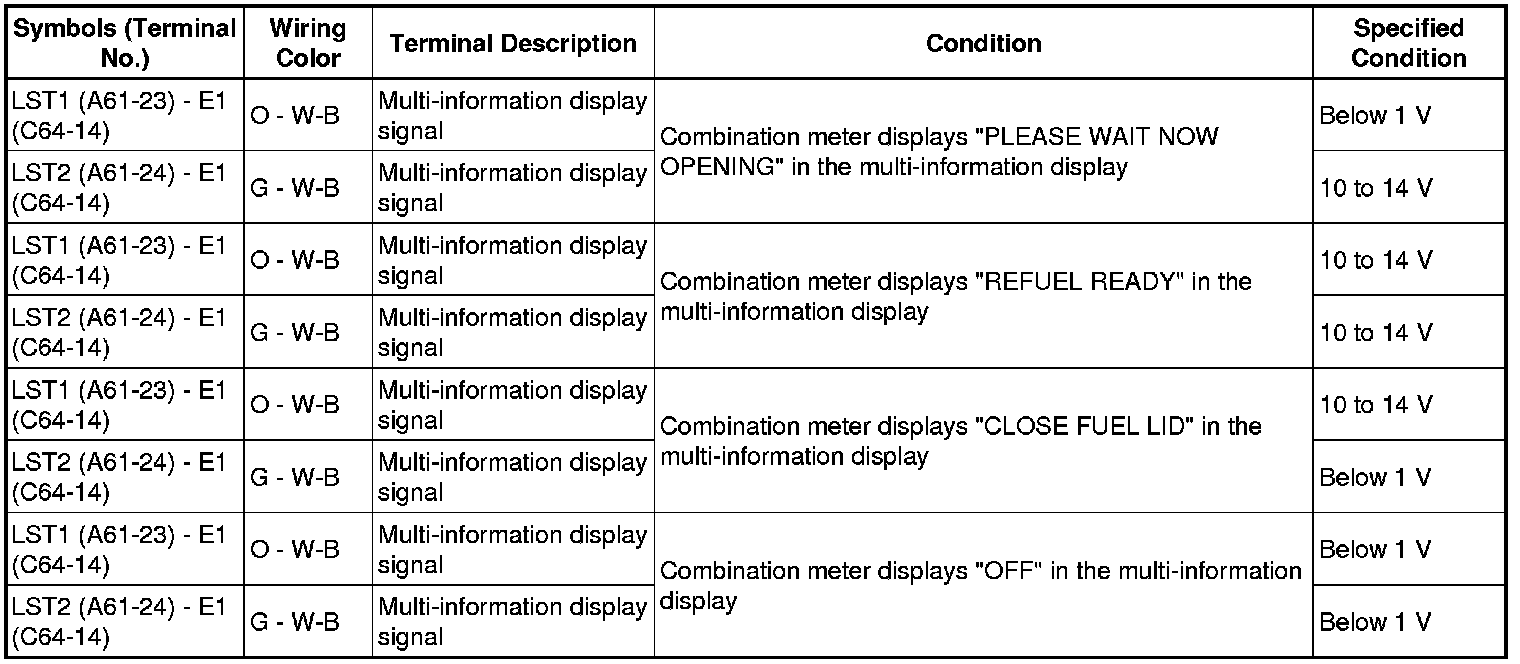

Multi-information display:
