Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Service and Repair
>>
Components
Components
ENGINE
HOOD

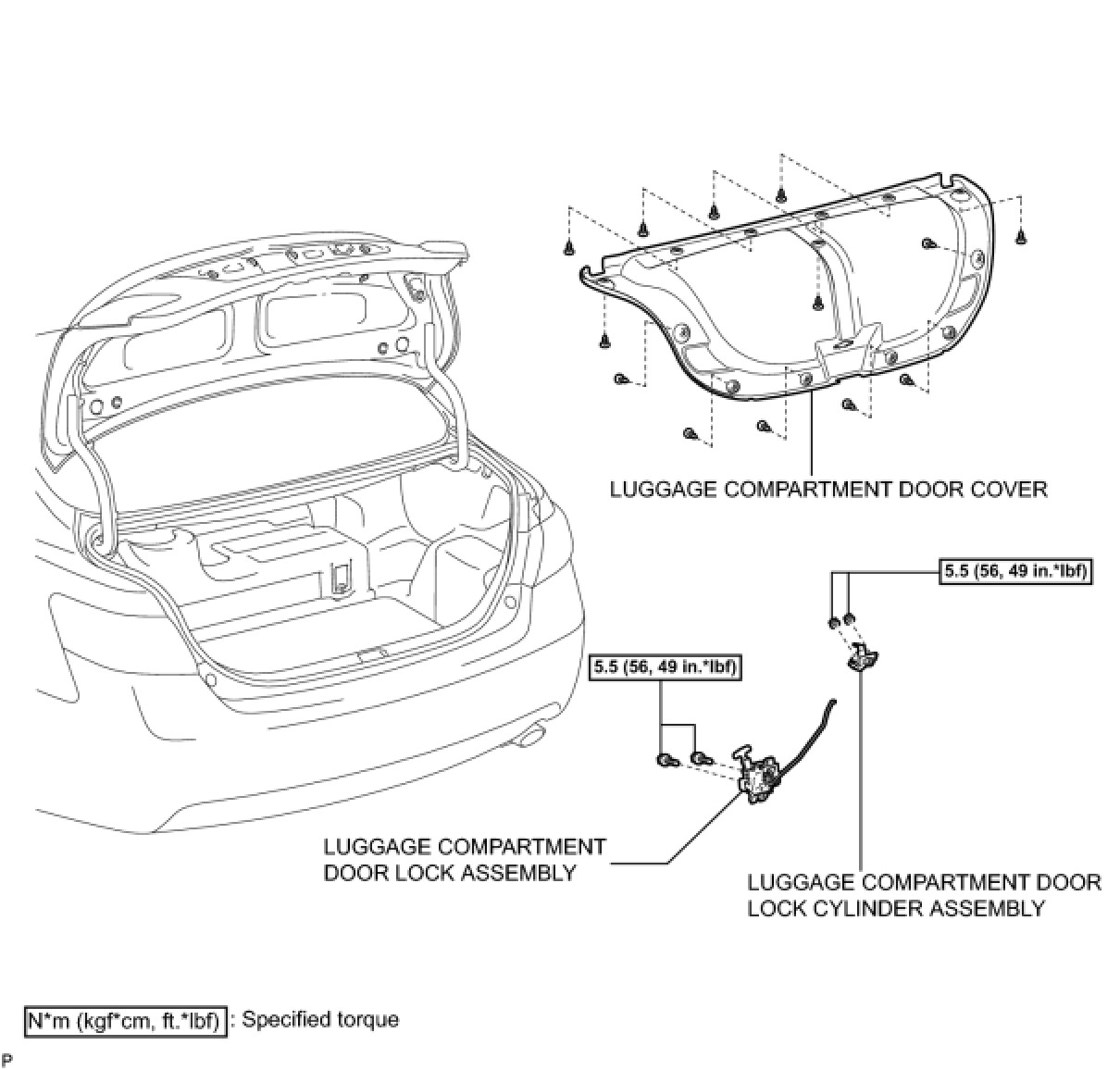

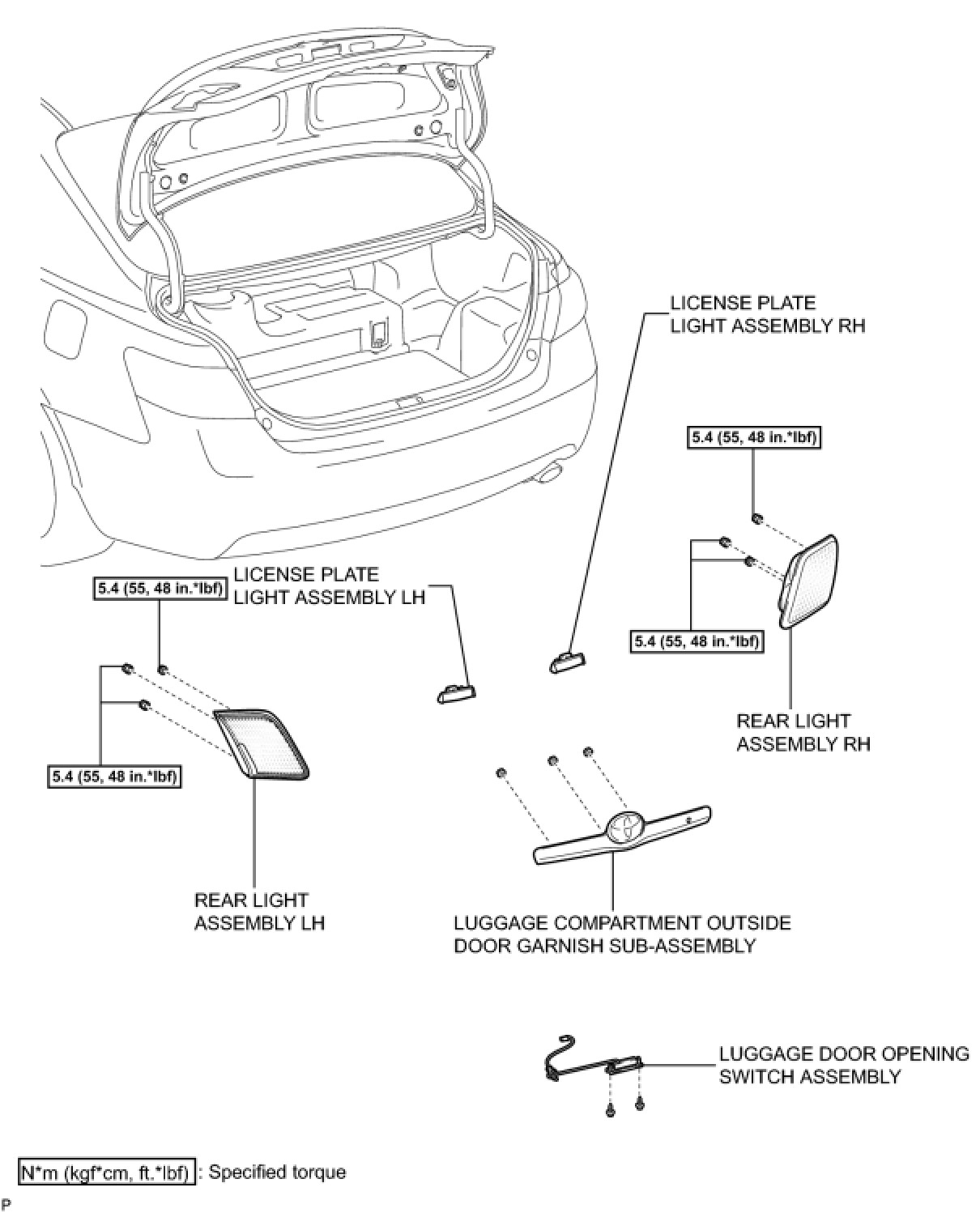

/ DOOR: LUGGAGE COMPARTMENT DOOR: COMPONENTS
COMPONENTS
ILLUSTRATION
