Component Tests and General Diagnostics

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY
(a) Check that the clearance measurements of areas A through F are within each standard range.

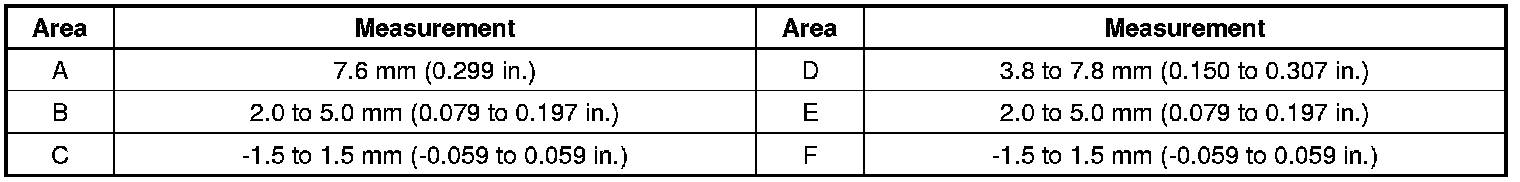

Standard clearance:
