ENGINE HOOD / DOOR: LUGGAGE DOOR HINGE TORSION BAR: INSTALLATION

INSTALLATION
HINT: After installing the torsion bar, use your hand to open and close the luggage door. Make sure the luggage door can open and close smoothly.

1. INSTALL LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT

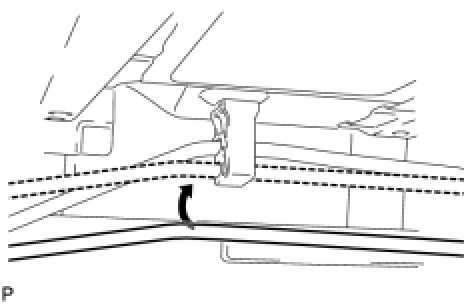

(a) Install the luggage compartment door torsion bar support as shown in the illustration.
2. INSTALL LUGGAGE DOOR HINGE TORSION BAR LH





(a) Set the tip of the luggage door hinge torsion bar LH in the center installation hole. The upper and lower installation holes are used for adjustment.





(b) Connect the luggage door hinge torsion bar LH to the right side of the vehicle body as shown in the illustration.

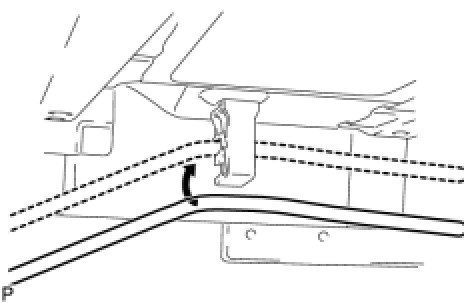

(c) Connect the luggage door hinge torsion bar LH to the luggage compartment door torsion bar support as shown in the illustration.





(d) Using SST, install the luggage door hinge torsion bar LH to the luggage door hinge and the left side of the vehicle body as shown in the illustration.
SST: 09804-24010
3. INSTALL LUGGAGE DOOR HINGE TORSION BAR RH





(a) Set the tip of the luggage door hinge torsion bar RH in the center installation hole. The upper and lower installation holes are used for adjustment.





(b) Connect the luggage door hinge torsion bar RH to the left side of the vehicle body as shown in the illustration.





(c) Connect the luggage door hinge torsion bar RH to the luggage compartment door torsion bar support as shown in the illustration.





(d) Using SST, install the luggage door hinge torsion bar RH to the luggage door hinge and the right side of the vehicle body as shown in the illustration.
SST: 09804-24010
4. INSTALL NO. 2 HV BATTERY INTAKE DUCT Installation
5. INSTALL NO. 1 HV BATTERY INTAKE DUCT Installation
6. INSTALL LUGGAGE COMPARTMENT FRONT TRIM COVER
7. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER LH





(a) Install the luggage compartment inner trim cover LH with the 2 clips.
8. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH





(a) Install the luggage compartment inner trim cover RH with the 2 clips.
9. INSTALL LUGGAGE TRIM SERVICE HOLE COVER Installation
10. INSTALL LUGGAGE COMPARTMENT REAR TRIM COVER





(a) Install the luggage compartment rear trim cover.
11. INSTALL REAR FLOOR FINISH PLATE





(a) Engage the 7 clips and install the rear floor finish plate.
12. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK





(a) Install the 2 No. 1 luggage compartment trim hooks with the 2 screws.
13. INSTALL SPARE WHEEL COVER ASSEMBLY
14. INSTALL SPARE WHEEL COVER CLAMP
15. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
16. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation
17. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Installation
18. INSTALL REAR SEAT SHOULDER BELT COVER Installation
19. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Installation
20. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Installation
21. INSTALL ROOF SIDE INNER GARNISH LH Installation
22. INSTALL ROOF SIDE INNER GARNISH RH Installation
23. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH Installation
24. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Installation
25. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
26. INSTALL REAR DOOR SCUFF PLATE LH Installation
27. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
28. INSTALL REAR DOOR SCUFF PLATE RH Installation
29. INSTALL REAR SIDE SEATBACK ASSEMBLY LH Installation
30. INSTALL REAR SIDE SEATBACK ASSEMBLY RH
31. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Installation
32. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Installation
33. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
34. INSTALL REAR SEAT HEADREST ASSEMBLY
35. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
