ENGINE HOOD / DOOR: LUGGAGE DOOR HINGE TORSION BAR: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY Removal
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY Removal
4. REMOVE SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Removal
5. REMOVE SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Removal
6. REMOVE REAR SIDE SEATBACK ASSEMBLY LH Removal
7. REMOVE REAR SIDE SEATBACK ASSEMBLY RH Removal
8. REMOVE REAR DOOR SCUFF PLATE LH Removal
9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR SCUFF PLATE RH Removal
11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
12. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Removal
13. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH Removal
14. REMOVE ROOF SIDE INNER GARNISH LH Removal
15. REMOVE ROOF SIDE INNER GARNISH RH Removal
16. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Removal
17. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Removal
18. REMOVE REAR SEAT SHOULDER BELT COVER Removal
19. REMOVE REAR SEAT SHOULDER BELT HOLE COVER Removal
20. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal
21. REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER
22. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
23. REMOVE SPARE WHEEL COVER CLAMP
24. REMOVE SPARE WHEEL COVER ASSEMBLY
25. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

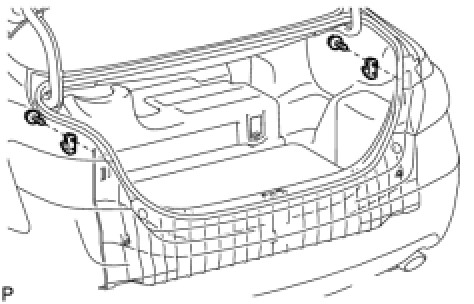

(a) Remove the 2 screws and the 2 No. 1 luggage compartment trim hooks.
26. REMOVE REAR FLOOR FINISH PLATE





(a) Disengage the 7 clips and remove the rear floor finish plate.
27. REMOVE LUGGAGE COMPARTMENT REAR TRIM COVER

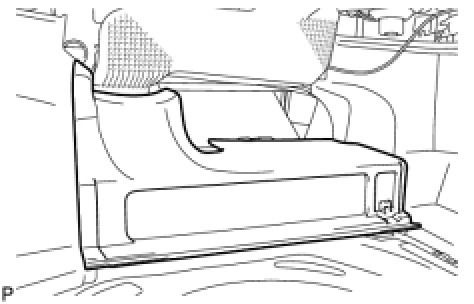

(a) Remove the luggage compartment rear trim cover.
28. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH

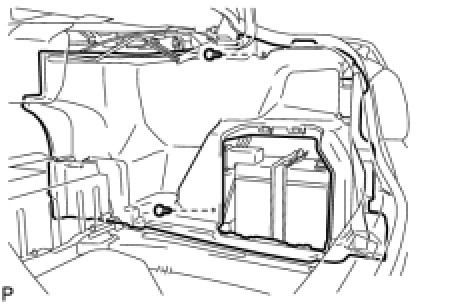

(a) Remove the 2 clips and the luggage compartment inner trim cover LH.
29. REMOVE LUGGAGE TRIM SERVICE HOLE COVER Removal
30. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH

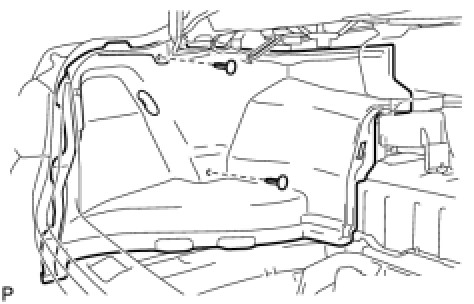

(a) Remove the 2 clips and the luggage compartment inner trim cover RH.
31. REMOVE NO. 1 HV BATTERY INTAKE DUCT Removal
32. REMOVE NO. 2 HV BATTERY INTAKE DUCT Removal
33. REMOVE LUGGAGE DOOR HINGE TORSION BAR RH

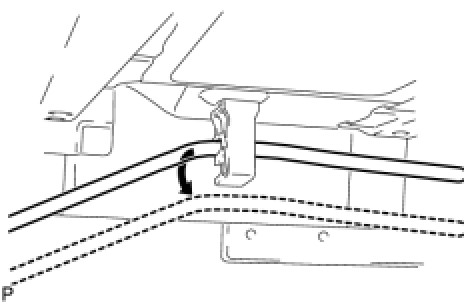

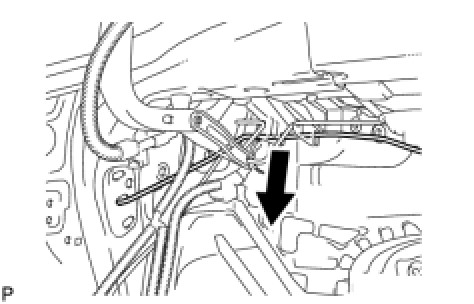

(a) Disconnect the luggage door hinge torsion bar RH from the luggage compartment door torsion bar support as shown in the illustration.

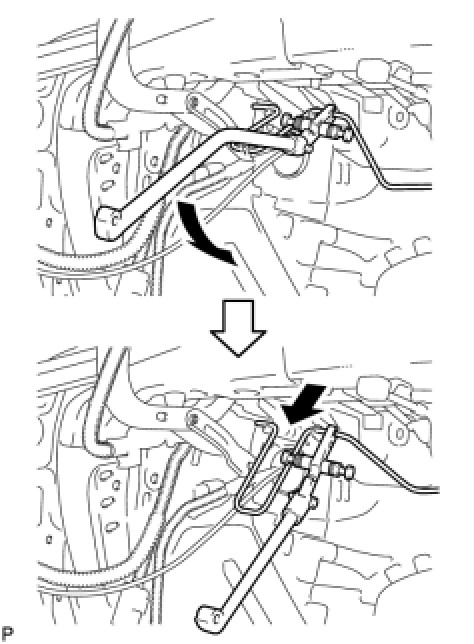

(b) Using SST, disconnect the luggage door hinge torsion bar RH from the luggage door hinge and the right side of the vehicle body as shown in the illustration.
SST: 09804-24010

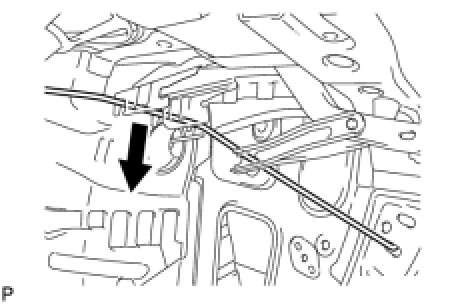

(c) Remove the luggage door hinge torsion bar RH from the left side of the vehicle body as shown in the illustration.
34. REMOVE LUGGAGE DOOR HINGE TORSION BAR LH

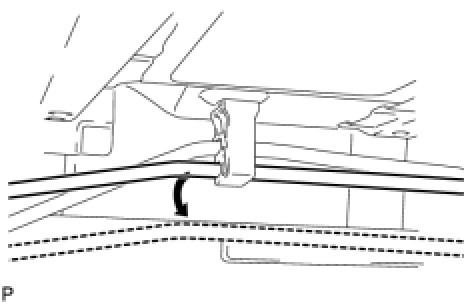

(a) Disconnect the luggage door hinge torsion bar LH from the luggage compartment door torsion bar support as shown in the illustration.





(b) Using SST, disconnect the luggage door hinge torsion bar LH from the luggage door hinge and the left side of the vehicle body as shown in the illustration.
SST: 09804-24010





(c) Remove the luggage door hinge torsion bar LH from the right side of the vehicle body as shown in the illustration.
35. REMOVE LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT

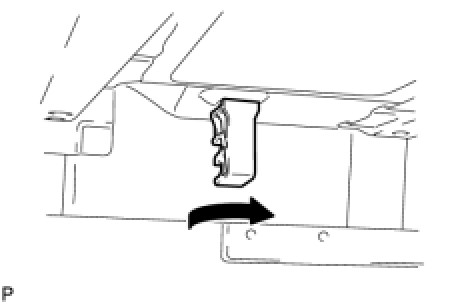

(a) Remove the luggage compartment door torsion bar support as shown in the illustration.
