Installation

EXTERIOR: NAME PLATE: INSTALLATION

INSTALLATION
HINT: When installing the name plate, heat the vehicle body and name plate using a heat light.

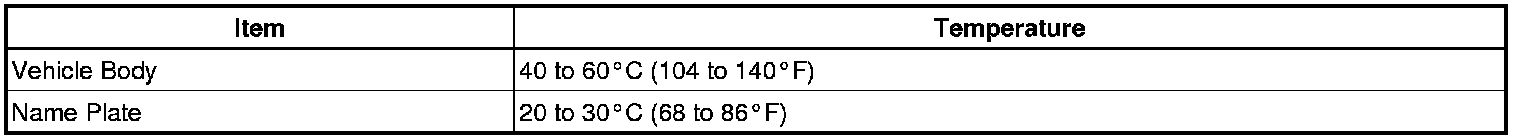

Heating temperature:





NOTICE: Do not heat the vehicle body and name plate excessively.

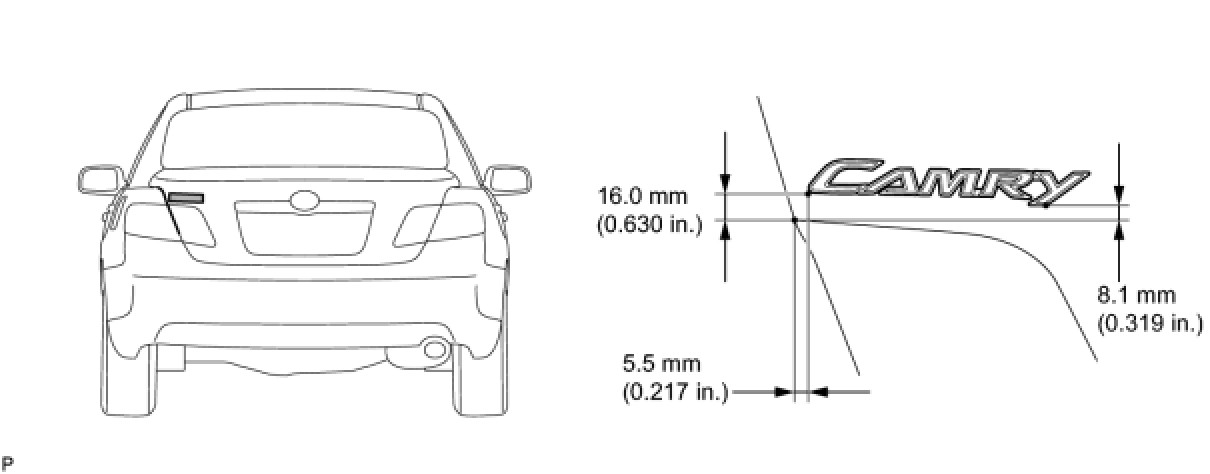

1. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Clean the name plate. (If reusing the name plate)
(1) Using a heat light, heat the name plate.
(2) Remove the double-sided tape from the name plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the name plate.
(c) Install the name plate.




(1) Using a heat light, heat the vehicle body and name plate.
(2) Remove the release paper from the name plate.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.
(3) Install the name plate.

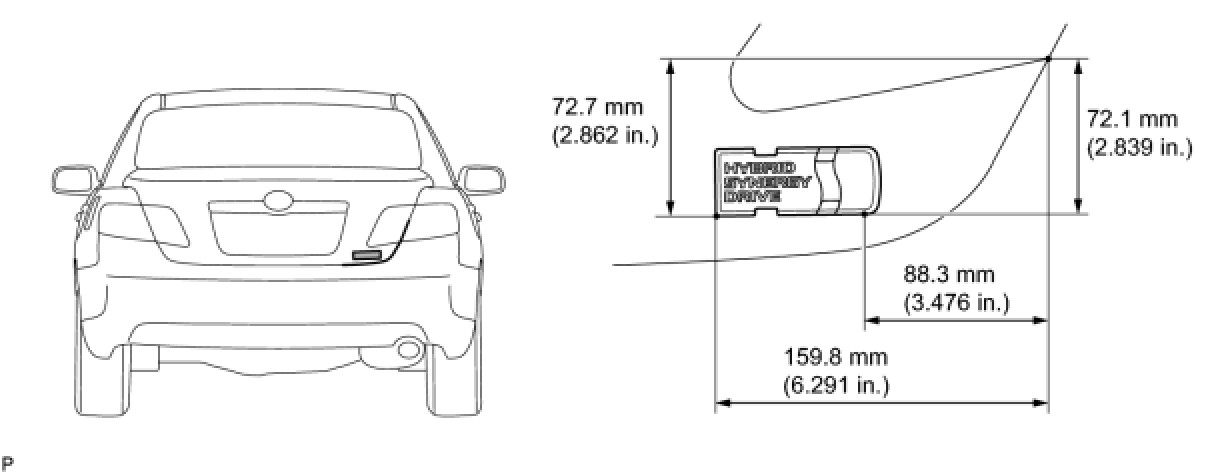

2. INSTALL BACK DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Clean the name plate. (If reusing the name plate)
(1) Using a heat light, heat the name plate.
(2) Remove the double-sided tape from the name plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the name plate.
(c) Install the name plate.
(1) Using a heat light, heat the vehicle body and name plate.
(2) Remove the release paper from the name plate.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.
(3) Install the name plate.





3. INSTALL SIDE PANEL EMBLEM
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Clean the side panel emblem. (If reusing the side panel emblem)
(1) Using a heat light, heat the side panel emblem.
(2) Remove the double-sided tape from the side panel emblem.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the side panel emblem.
(c) Install the side panel emblem.
(1) Using a heat light, heat the vehicle body and side panel emblem.
(2) Remove the release paper from the side panel emblem.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.
(3) Install the side panel emblem.

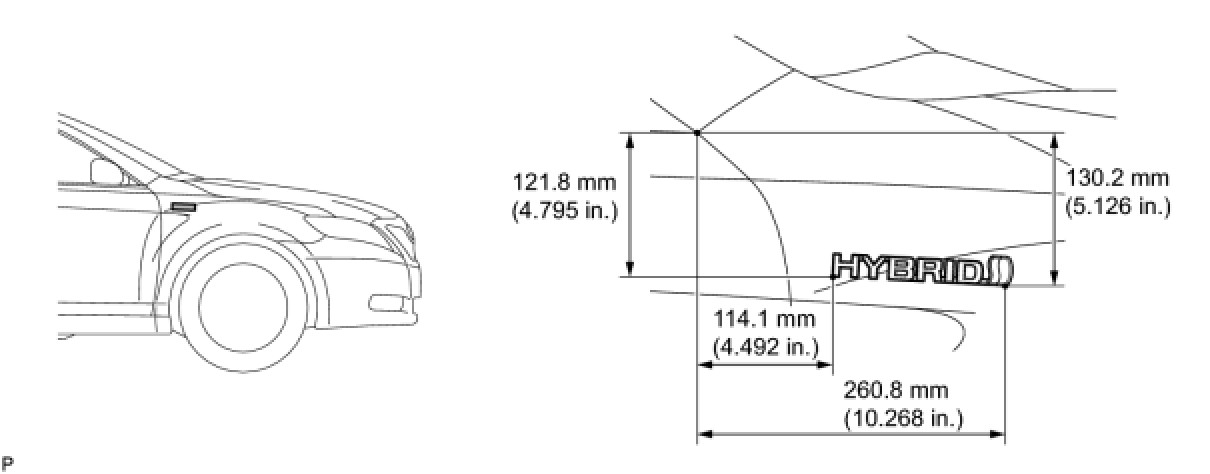

For LH side:

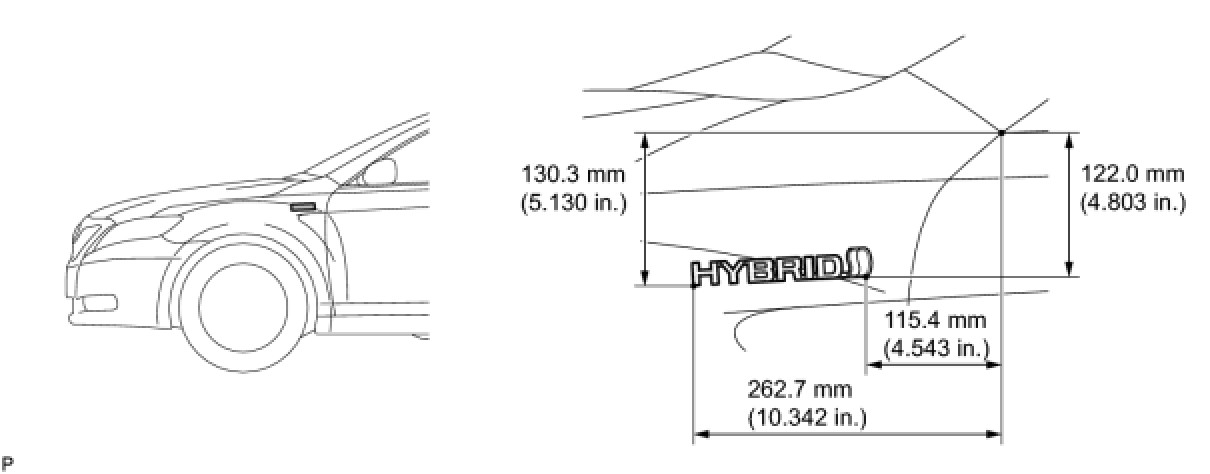

For RH side:
