Removal

EXTERIOR: NAME PLATE: REMOVAL

REMOVAL
HINT: When removing the name plate, heat the vehicle body and name plate using a heat light.

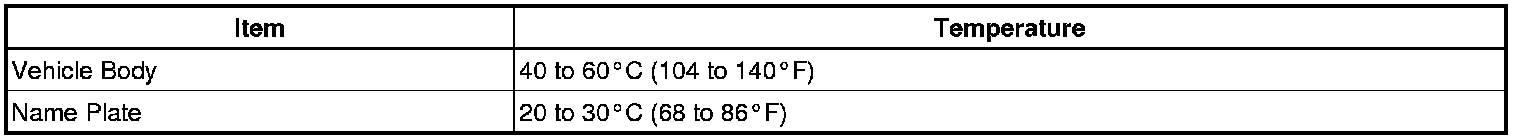

Heating temperature:





NOTICE: Do not heat the vehicle body and name plate excessively.

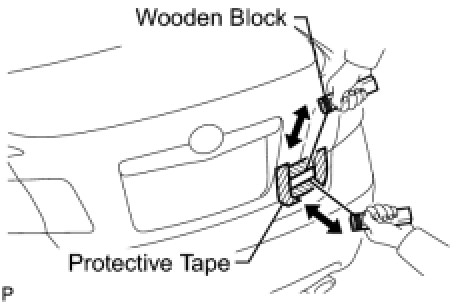

1. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Insert a piano wire between the vehicle body and name plate.
(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
(d) Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body.
NOTICE:
- If reusing the name plate, take care not to damage the name plate.
- Be careful not to damage the vehicle body.

(e) Remove the name plate.

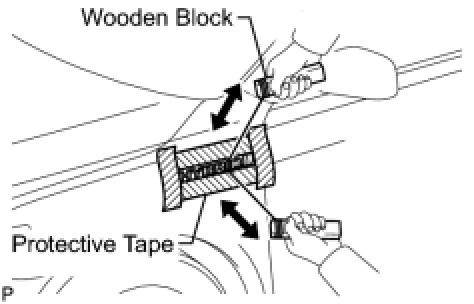

2. REMOVE BACK DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Insert a piano wire between the vehicle body and name plate.
(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
(d) Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body.
NOTICE:
- If reusing the name plate, take care not to damage the name plate.
- Be careful not to damage the vehicle body.

(e) Remove the name plate.

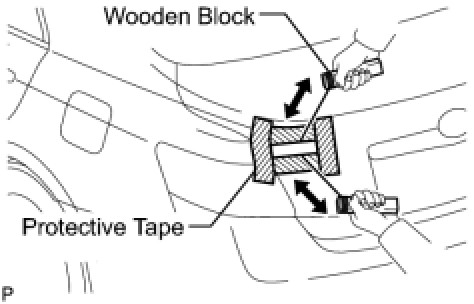

3. REMOVE SIDE PANEL EMBLEM





(a) Put protective tape around the side panel emblem.
(b) Insert a piano wire between the vehicle body and side panel emblem.
(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
(d) Pull the piano wire and scrape off the double-sided tape that holds the side panel emblem to the vehicle body.
NOTICE:
- If reusing the side panel emblem, take care not to damage the side panel emblem.
- Be careful not to damage the vehicle body.

(e) Remove the side panel emblem.
