INSTRUMENT PANEL: REAR CONSOLE BOX: INSTALLATION

INSTALLATION

1. INSTALL CONSOLE BOX ASSEMBLY

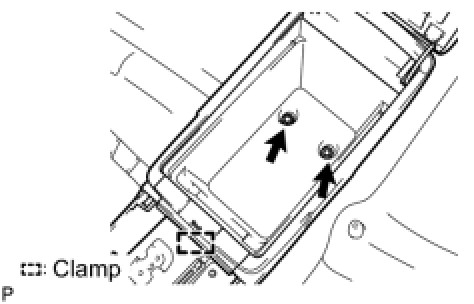

(a) Install the 2 screws.

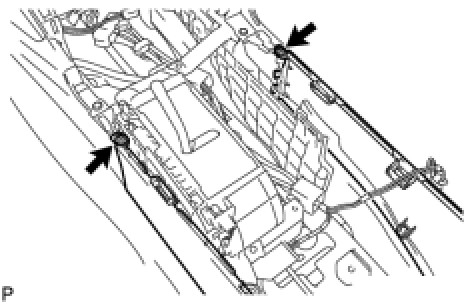

(b) Install the console box assembly with the 2 bolts.
(c) Engage the clamp.
2. INSTALL CONSOLE BOX CARPET (for TMC Made) Installation
3. INSTALL CONSOLE BOX CARPET (for TMMK Made) Installation
4. INSTALL CONSOLE BOX POCKET (for TMC Made) Installation
5. INSTALL CONSOLE BOX POCKET (for TMMK Made) Installation
6. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for TMC Made) Installation
7. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for TMMK Made) Installation
8. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for TMC Made) Installation
9. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for TMMK Made) Installation
10. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMC Made) Installation
11. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMMK Made) Installation
12. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMC Made) Installation
13. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMMK Made) Installation
14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
