Reassembly

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD (for TMMK Made): REASSEMBLY

REASSEMBLY

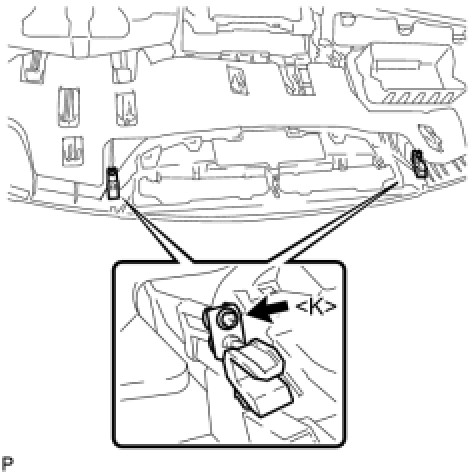

1. INSTALL NO. 1 INSTRUMENT PANEL PIN





(a) Install the 2 No. 1 instrument panel pins with the 2 screws [K].
2. INSTALL PLASMACLUSTER Installation
3. INSTALL GLOVE BOX LIGHT ASSEMBLY





(a) Engage the 2 claws and install the glove box light assembly.
4. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY Installation
5. INSTALL NAVIGATION ANTENNA ASSEMBLY Installation
6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY Installation
7. INSTALL NO. 2 HEATER TO REGISTER DUCT





(a) Install the No. 2 heater to register duct with the 2 screws [B] or [K].
8. INSTALL NO. 3 HEATER TO REGISTER DUCT





(a) Install the No. 3 heater to register duct with the 3 screws [B] or [K].

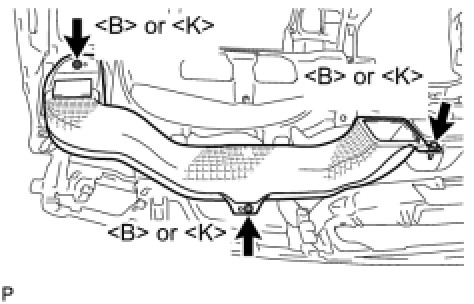

9. INSTALL NO. 1 HEATER TO REGISTER DUCT





(a) Install the No. 1 heater to register duct with the 3 screws [B] or [K].

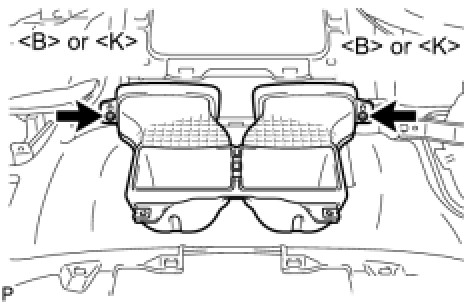

10. INSTALL DEFROSTER NOZZLE ASSEMBLY





(a) Install the defroster nozzle assembly with the 3 screws [B] or [K].

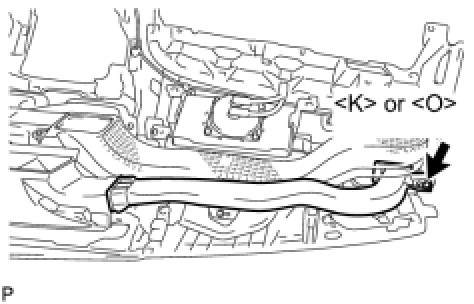

11. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT





(a) Install the side No. 2 defroster nozzle duct with the screw [K] or [O].

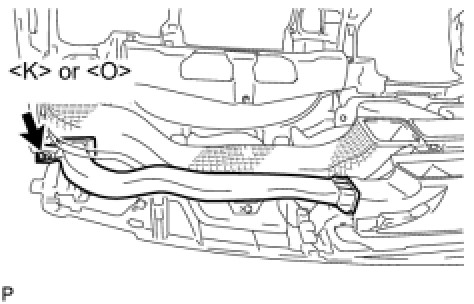

12. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT





(a) Install the side No. 1 defroster nozzle duct with the screw [K] or [O].
