DOOR LOCK: REAR DOOR LOCK: REMOVAL

REMOVAL

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG Disassembly
2. REMOVE DOOR ASSIST GRIP COVER Disassembly
3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP Disassembly
5. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY Disassembly
6. REMOVE REAR DOOR SERVICE HOLE COVER Disassembly
7. REMOVE REAR DOOR LOCK ASSEMBLY





(a) Using a "torx" socket wrench (T30), remove the 3 screws.
(b) Move the rear door lock assembly downward and pull the release plate out of the rear door outside handle frame.
(c) Remove the door lock wiring harness seal from the rear door lock assembly.

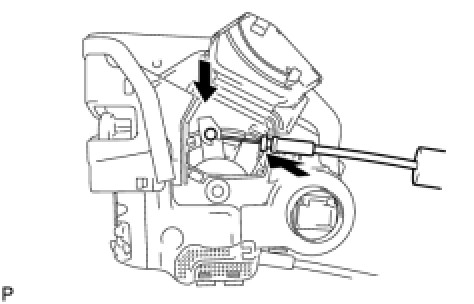

(d) Using a screwdriver, disengage the claw.
HINT: Tape the screwdriver tip before use.





(e) Remove the rear door inside locking cable assembly.

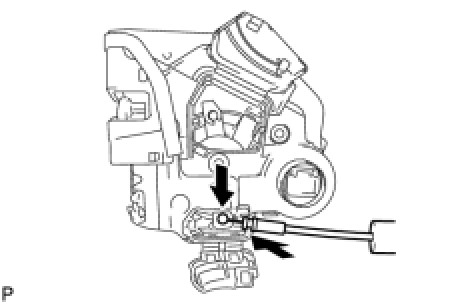

(f) Using a screwdriver, disengage the 3 claws.
HINT: Tape the screwdriver tip before use.





(g) Remove the rear door inside locking cable assembly.
