Seats: Description and Operation

SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM

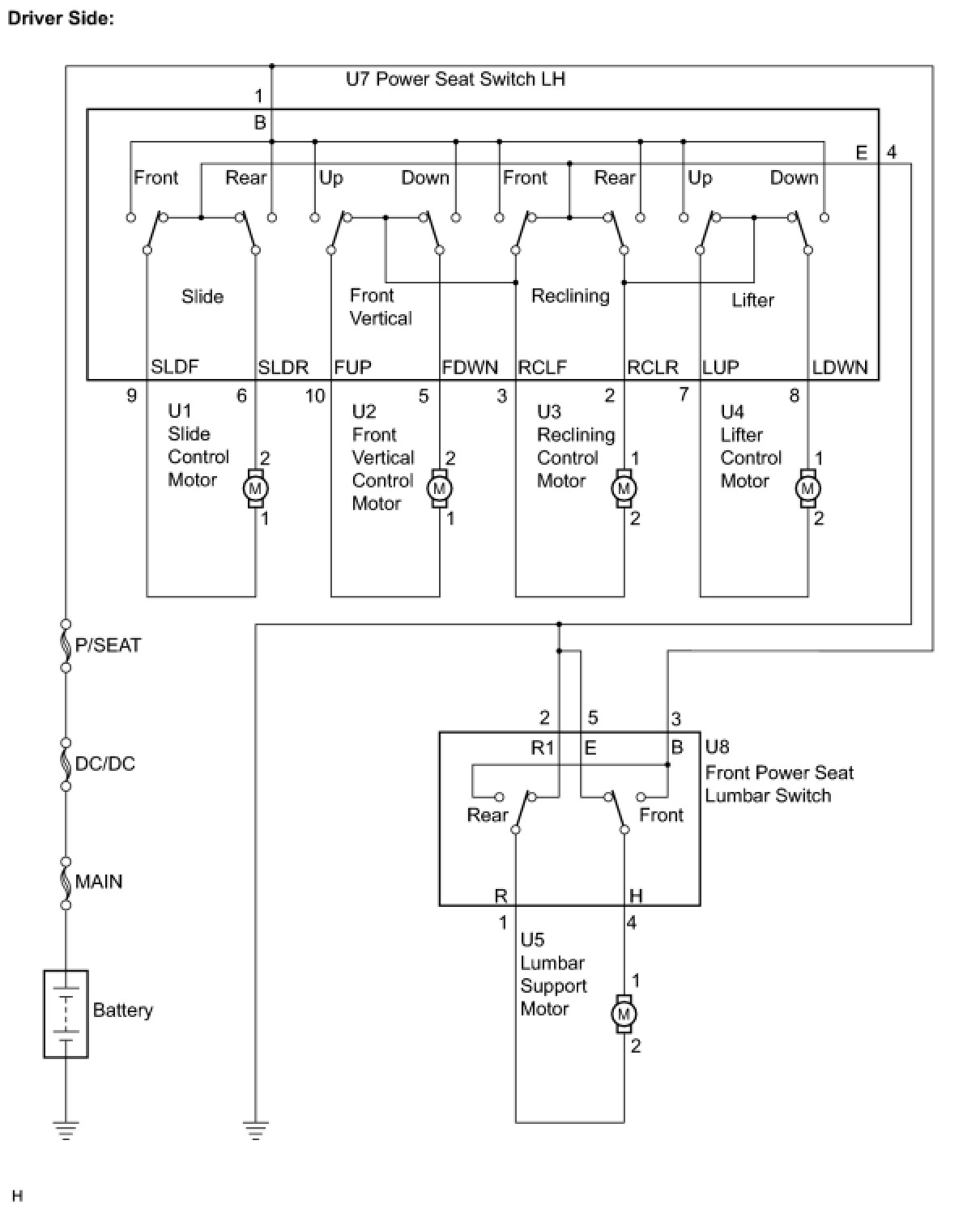

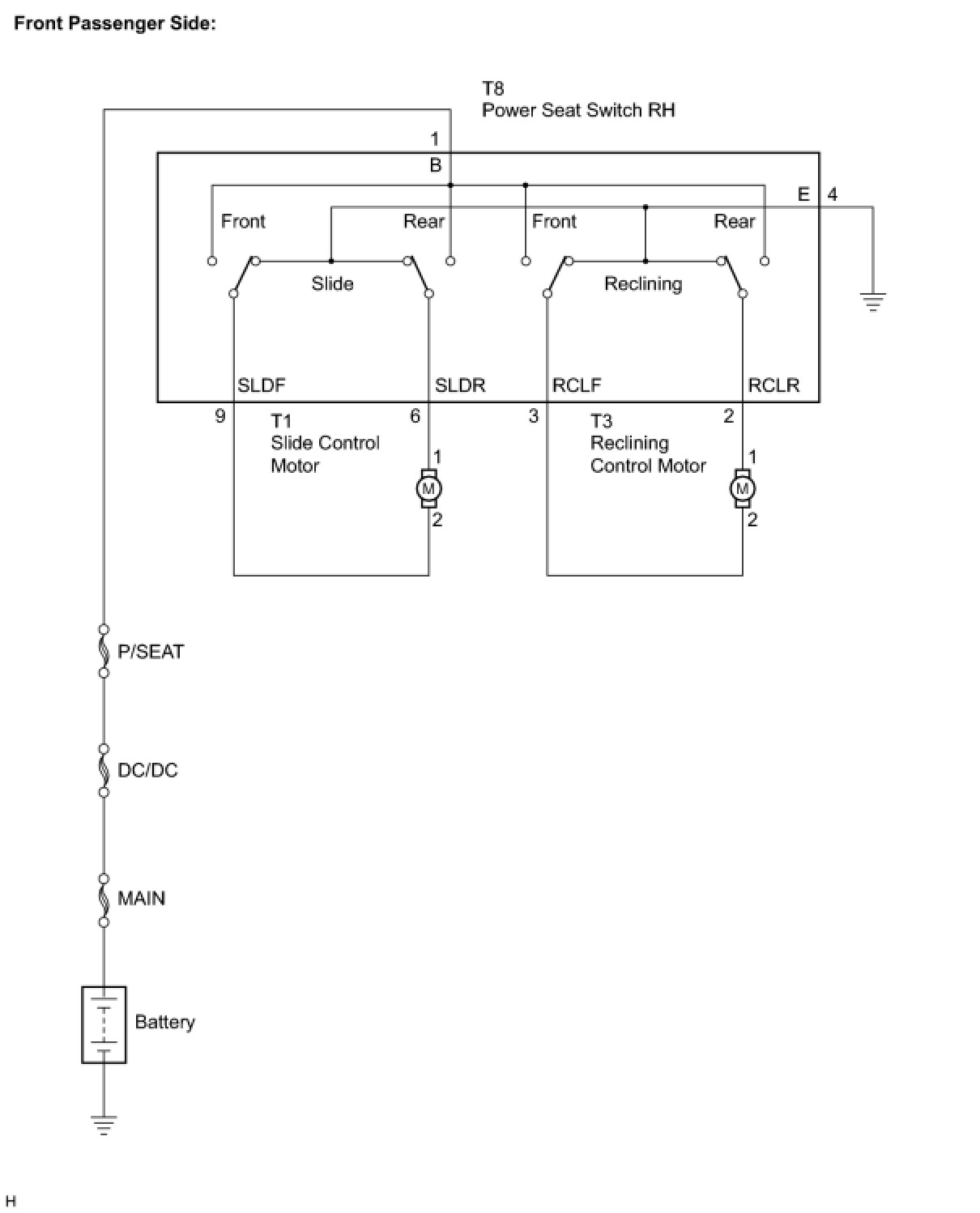

SYSTEM DIAGRAM










SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. FRONT POWER SEAT CONTROL SYSTEM DESCRIPTION
The driver seat and front passenger seat are equipped with slide, reclining, lifter, front vertical, and lumbar support adjustment functions.

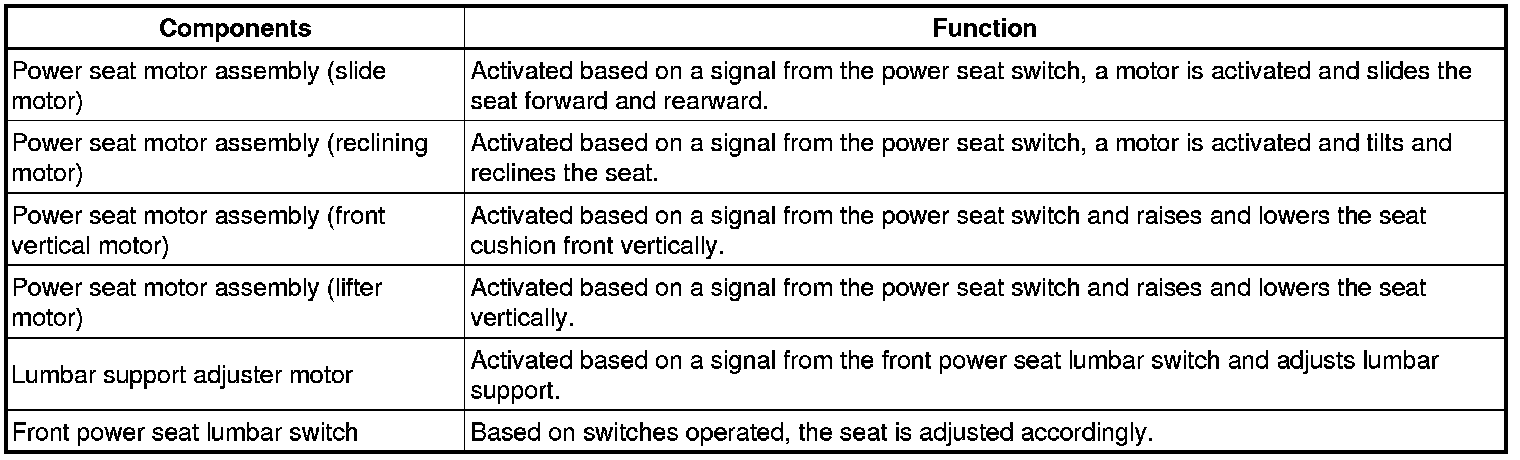

2. FUNCTION OF MAIN COMPONENTS
The following functions are available:
