Home >> Toyota >> 2009 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Exploded Views >> Rear Seat

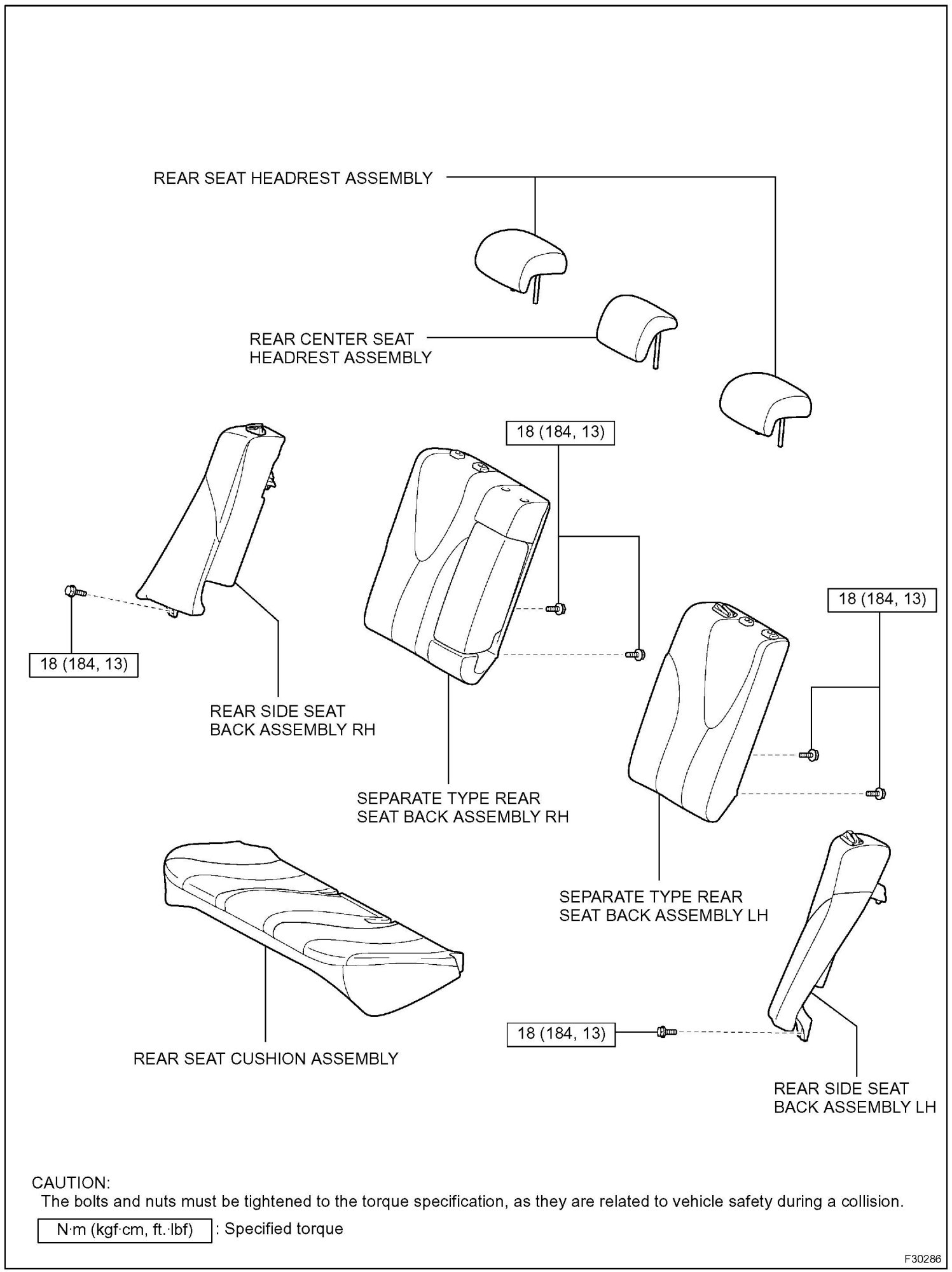

Rear Seat
