Reassembly

SEAT: FRONT SEAT ASSEMBLY (for Manual Seat): REASSEMBLY

REASSEMBLY
NOTICE: Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

1. INSTALL OCCUPANT DETECTION ECU Installation
2. INSTALL RECLINING ADJUSTER INSIDE COVER LH
3. INSTALL RECLINING ADJUSTER INSIDE COVER RH
4. INSTALL RECLINING ADJUSTER INSIDE COVER LH
5. INSTALL RECLINING ADJUSTER INSIDE COVER RH
6. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

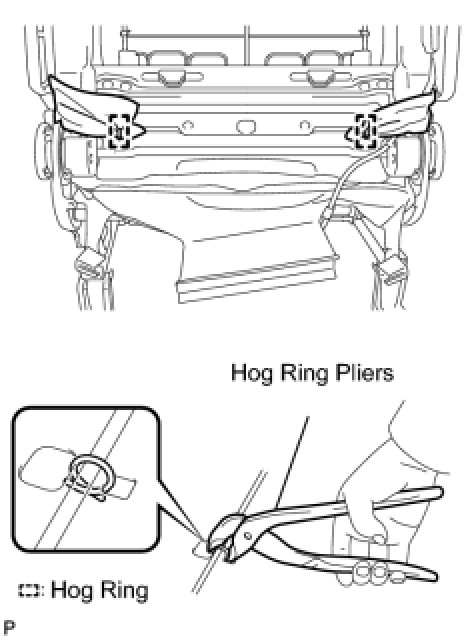

(a) Using hog ring pliers, install the separate type front seatback cover to the front separate type seatback pad with 10 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

7. INSTALL FRONT SEATBACK COVER WITH PAD





(a) Fully cover the airbag with the 2 seatback cover brackets and tighten the nut.
Torque: 5.5 Nm (56 kgf-cm, 49in-lbf)
NOTICE :
- For vehicles with side airbags, the seatback cover must be securely installed. Otherwise, the side airbags may not deploy properly.
- Make sure that the strap is not twisted after installing the bracket.
- Install the bracket securely.

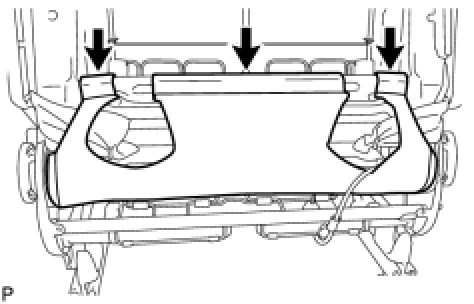

(b) Using hog ring pliers, install the front seatback cover with pad to the seat frame with 2 new hog rings, and attach the hooks.





(c) Engage the 3 hooks.
8. INSTALL FRONT SEAT HEADREST SUPPORT
9. INSTALL FRONT SEAT HEADREST SUPPORT
10. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY
11. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

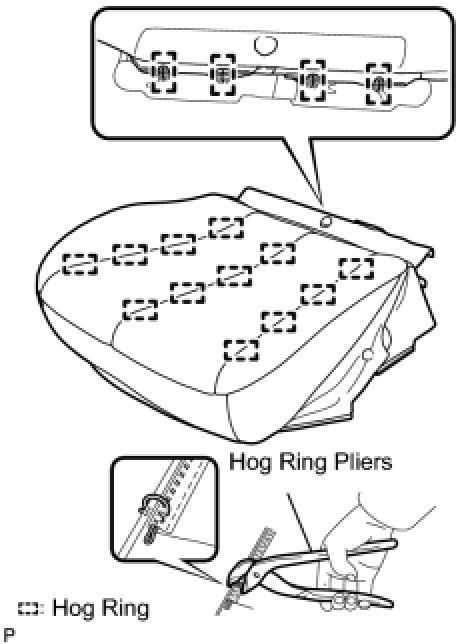

(a) Using hog ring pliers, install the separate type front seat cushion cover to the seat cushion pad with 16 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

12. INSTALL FRONT SEAT CUSHION COVER WITH PAD
13. INSTALL FRONT INNER SEAT CUSHION SHIELD
14. INSTALL FRONT SEAT INNER BELT ASSEMBLY Installation
15. INSTALL LOWER SEAT TRACK SPACER
16. INSTALL FRONT SEAT CUSHION SHIELD
17. INSTALL RECLINING ADJUSTER RELEASE HANDLE
