Reassembly

SEAT: REAR SEAT ASSEMBLY: REASSEMBLY

REASSEMBLY

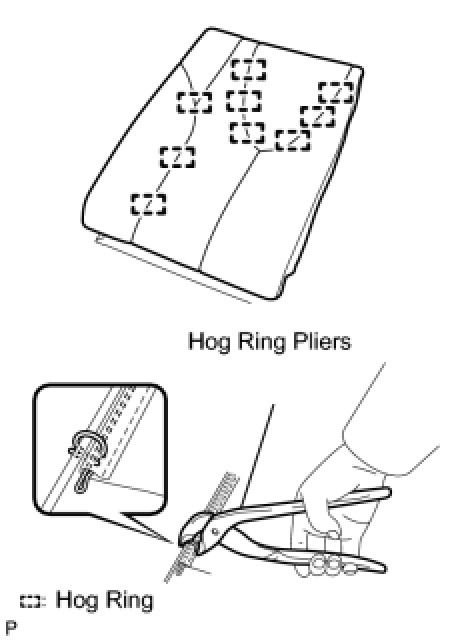

1. INSTALL REAR SEPARATE TYPE SEATBACK COVER (for LH Side)





(a) Using hog ring pliers, install the rear separate type seatback cover with 9 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

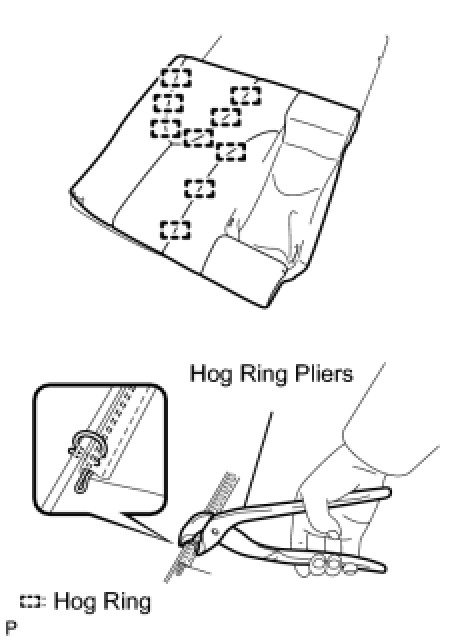

2. INSTALL REAR SEPARATE TYPE SEATBACK COVER (for RH Side)





(a) Using hog ring pliers, install the rear separate type seatback cover to the seatback pad with 9 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.





(b) Using hog ring pliers, install the rear separate type seatback cover to the seatback pad with 7 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

3. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY RH
4. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY LH

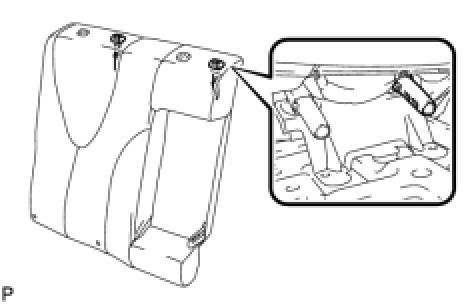

5. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)





(a) Engage the 2 claws to install the 2 front seat headrest supports.

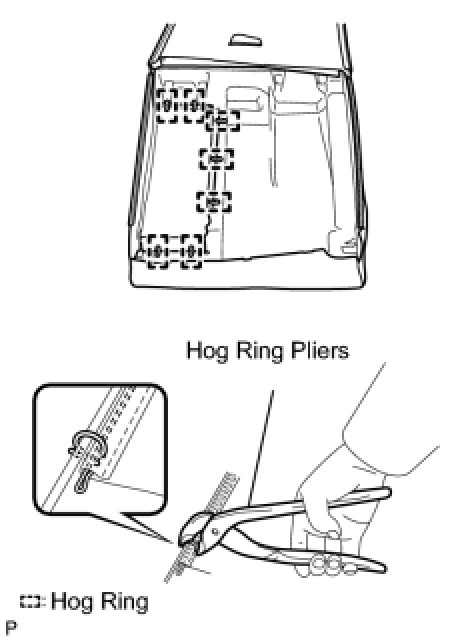

(b) Using hog ring pliers, install the rear separate type seatback cover to the seatback frame with 6 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

6. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)





(a) Engage the 2 claws to install the 2 front seat headrest supports.

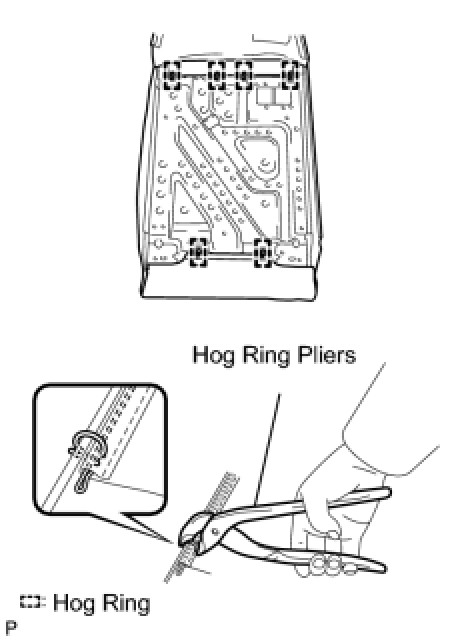

(b) Using hog ring pliers, install the rear separate type seatback cover to the seatback frame with 7 new hog rings.
NOTICE :
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

7. INSTALL REAR SEATBACK LOCK BEZEL UPPER
8. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)
9. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)
10. INSTALL REAR SEATBACK LOCK BEZEL UPPER (for RH Side)
11. INSTALL REAR SEAT SHOULDER BELT GUIDE RH
12. INSTALL REAR SEAT SHOULDER BELT GUIDE LH
13. INSTALL REAR SEAT BELT HOOK
14. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY
15. INSTALL REAR SEATBACK HINGE COVER
16. INSTALL NO. 1 SEAT ARMREST CAP
17. INSTALL REAR BENCH TYPE SEAT CUSHION COVER

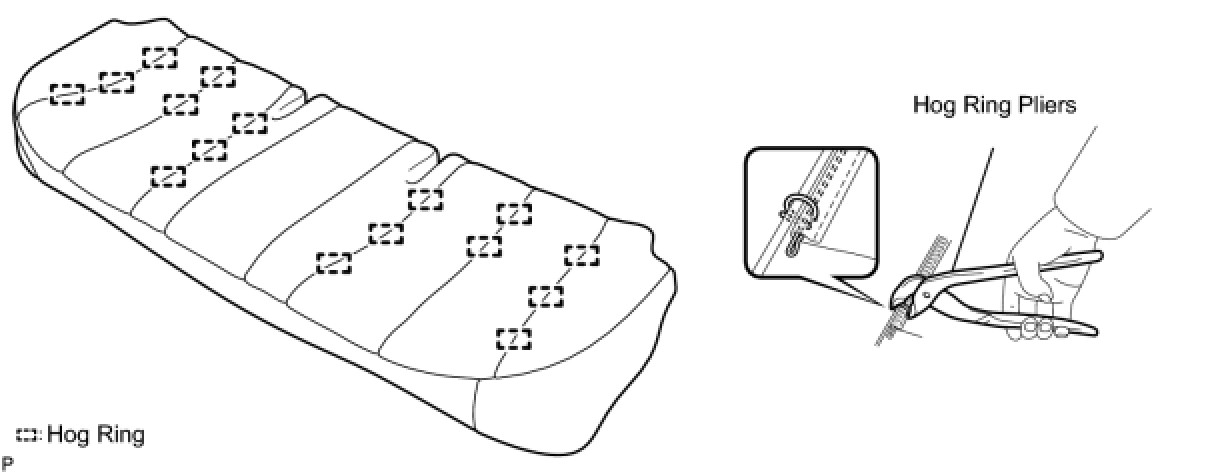

(a) Using hog ring pliers, install 16 new hog rings.




NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

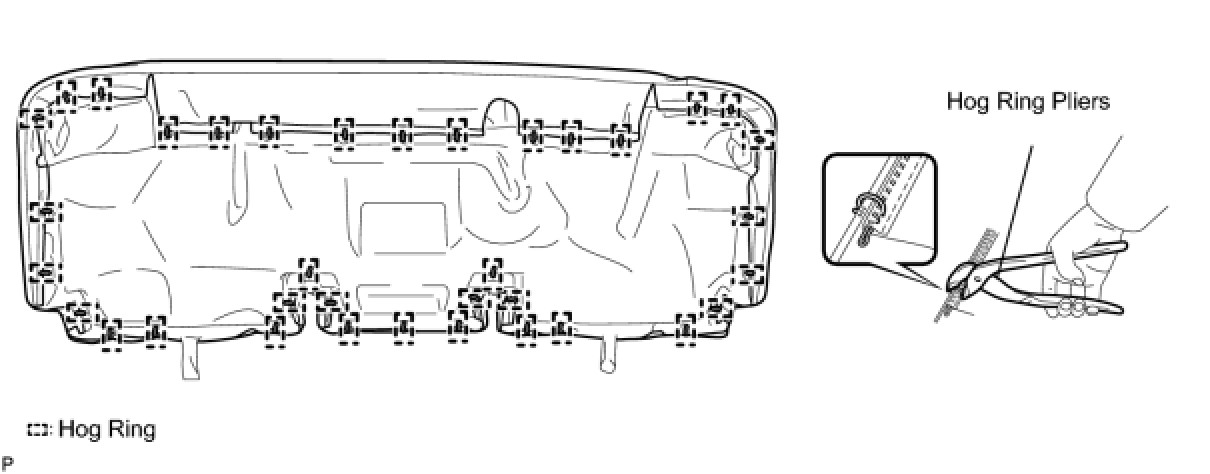

(b) Using hog ring pliers, install the rear bench type seat cushion cover to the seat cushion pad with 36 new hog rings.




NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
