BRAKE CONTROL: BRAKE ACTUATOR: DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 1 BRAKE ACTUATOR BRACKET

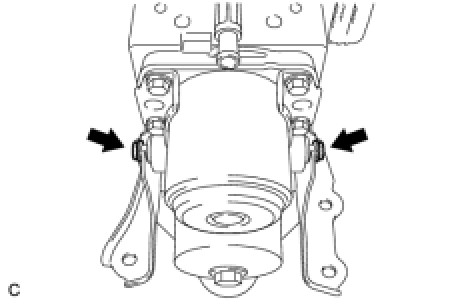

(a) Remove the 2 nuts and brake actuator assembly from the No. 1 brake actuator bracket.
