Reassembly








BRAKE CONTROL: BRAKE ACTUATOR: REASSEMBLY

REASSEMBLY

1. INSTALL NO. 1 BRAKE ACTUATOR BRACKET

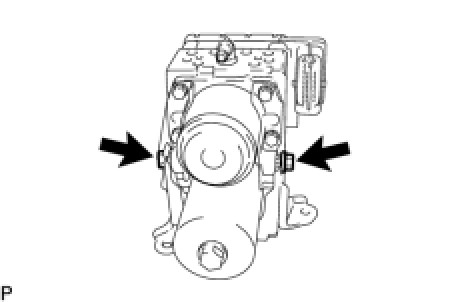

(a) Install the brake actuator assembly to the No. 1 brake actuator bracket with the 2 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71in-lbf)
NOTICE: Do not remove the hole plug before connecting the brake line because a new brake actuator assembly is filled with brake fluid.
