Removal

BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1 Removal
3. REMOVE REAR FLOOR FINISH PLATE Removal
4. REMOVE LUGGAGE COMPARTMENT REAR TRIM COVER Removal
5. REMOVE LUGGAGE TRIM SERVICE HOLE COVER Removal
6. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH Removal

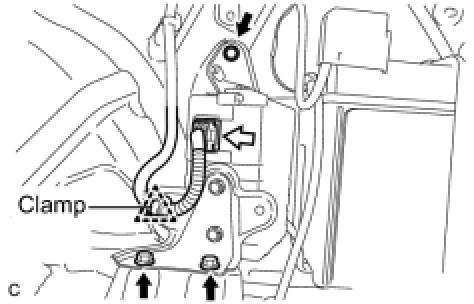

7. REMOVE BRAKE CONTROL POWER SUPPLY WITH BRACKET





(a) Disconnect the brake control power supply connector and separate the clamp.
(b) Remove the 3 bolts and brake control power supply with bracket.

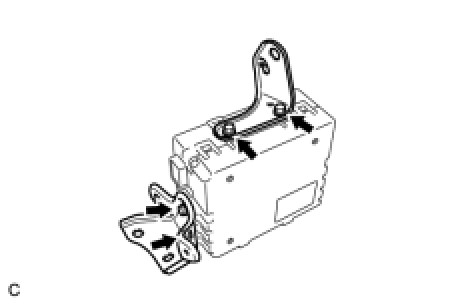

8. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY





(a) Remove the 2 bolts and No. 1 brake control power supply bracket.
(b) Remove the 2 bolts and No. 2 brake control power supply bracket.
