ABS Warning Light Does Not Come ON

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: ABS Warning Light does not Come ON

ABS Warning Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

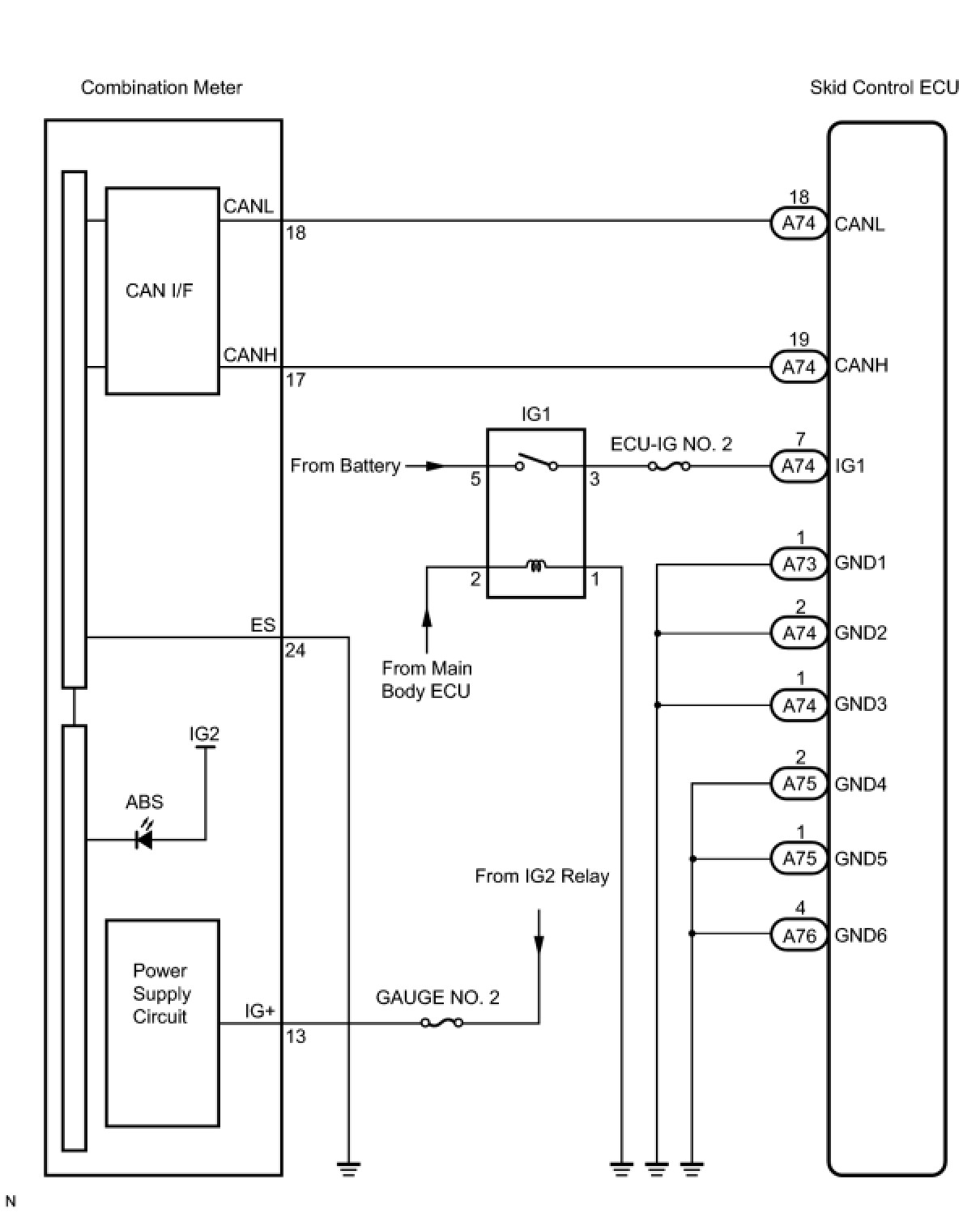

WIRING DIAGRAM






INSPECTION PROCEDURE
NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration Initialization.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication system DTC is output Diagnosis System.
Result:






B -- INSPECT CAN COMMUNICATION SYSTEM
A -- Continue to next step.
2. CHECK ABS WARNING LIGHT
(a) Disconnect the skid control ECU connector.
(b) Turn the power switch on (IG).
(c) Check that the ABS warning light comes on.
OK:
The ABS warning light comes on.
HINT: If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

OK -- REPLACE SKID CONTROL ECU
NG -- Continue to next step.
3. INSPECT COMBINATION METER ASSEMBLY
(a) Turn the power switch off.
(b) Reconnect the skid control ECU connector.
(c) Perform Active Test of the combination meter (meter CPU) using Techstream Scan Tool Testing and Procedures.
OK:
The ABS warning light turns on or off in accordance with Techstream.
HINT: If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- REPLACE SKID CONTROL ECU
