Installation

BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

INSTALLATION

1. INSTALL FRONT SPEED SENSOR





(a) Install the front speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71in-lbf)
NOTICE :
- Prevent foreign matter from attaching to the sensor tip.
- Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.

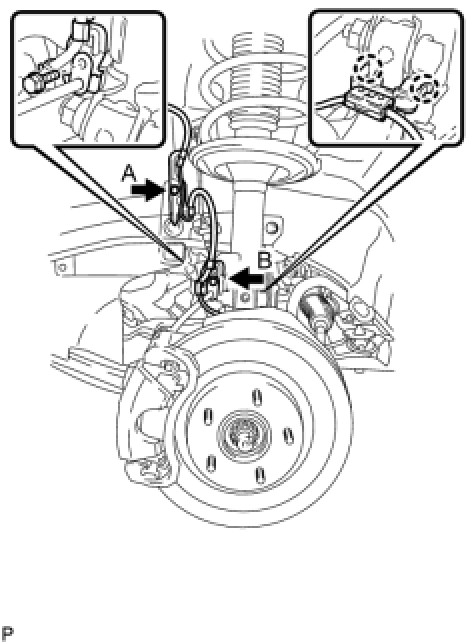

(b) Install the front speed sensor with the 2 bolts and engage the 2 claws.
Bolt A - Torque: 5.0 Nm (51 kgf-cm, 44in-lbf)
Bolt A - Torque: 19 Nm (194 kgf-cm, 14ft-lbf)
NOTICE: Do not twist the wire harness for the front speed sensor when installing the speed sensor.

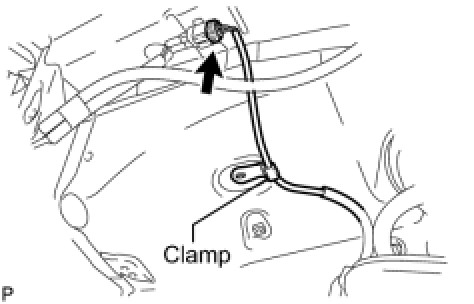

(c) Connect the front speed sensor connector and clamp.
2. INSTALL FRONT FENDER LINER Installation
3. INSTALL FRONT WHEEL OPENING EXTENSION PAD Installation
4. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
5. CHECK SPEED SENSOR SIGNAL
HINT: Refer the procedures up to "ELECTRONICALLY CONTROLLED BRAKE SYSTEM". Test Mode Procedure
