BRAKE CONTROL: SKID CONTROL SENSOR: INSTALLATION

INSTALLATION

1. INSTALL SKID CONTROL SENSOR





(a) Clean the contact surface between the axle hub and a new skid control sensor.
NOTICE: Prevent foreign matter from attaching to the sensor rotor.

(b) Place the skid control sensor on the axle hub so that the connector is positioned as shown in the illustration.

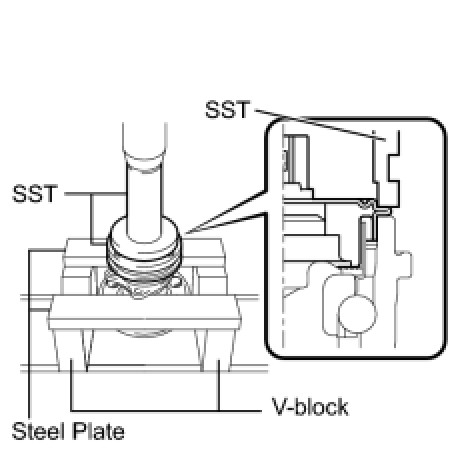

(c) Using SST, a press, 2 V-blocks, and 2 steel plates, install the skid control sensor to the axle hub.
SST: 09309-36010
SST: 09213-58013
NOTICE :
- Keep the sensor away from magnets.
- Do not use a hammer on the skid control sensor.
- Check that there is no foreign matter such as iron chips on the detecting portion of the skid control sensor.
- Slowly press the skid control sensor straight.

2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY WITH SKID CONTROL SENSOR Installation
3. INSPECT REAR AXLE HUB BEARING LOOSENESS Rear Axle Hub and Bearing
4. INSPECT REAR AXLE HUB RUNOUT Rear Axle Hub and Bearing
5. INSTALL REAR DISC Reassembly
6. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Reassembly
7. CONNECT SKID CONTROL SENSOR WIRE





(a) Connect the connector to the skid control sensor.
8. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
9. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
HINT: Refer the procedures up to "REAR WHEEL ALIGNMENT". Service and Repair

10. CHECK SPEED SENSOR SIGNAL
HINT: Refer the procedures up to "ELECTRONICALLY CONTROLLED BRAKE SYSTEM". Test Mode Procedure
