Disassembly

BRAKE: BRAKE PEDAL: DISASSEMBLY

DISASSEMBLY

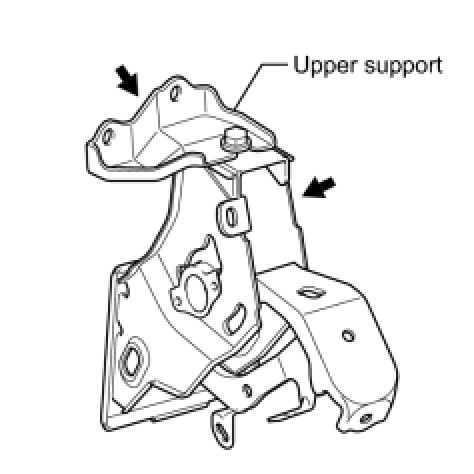

NOTICE: Do not disassembly the upper support portion. If disassembled, be sure to replace it with new parts.





1. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY





(a) Remove the 2 bolts and the brake pedal stroke sensor assembly.
2. REMOVE STOP LIGHT SWITCH ASSEMBLY

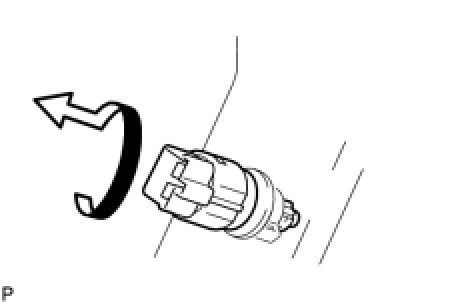

(a) Turn the stop light switch assembly and remove it as shown in the illustration.
3. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
(a) Remove the stop light switch mounting adjuster.
4. REMOVE BRAKE PEDAL SUB-ASSEMBLY





(a) Remove the bolt and the nut.
(b) Remove the 2 brake pedal bushings, brake pedal shaft collar, and the brake pedal sub-assembly.
5. REMOVE BRAKE PEDAL PAD
(a) Remove the brake pedal pad.
