BRAKE: BRAKE PEDAL: REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL REINFORCEMENT (for TMC Made)
HINT: Refer the procedures up to "REMOVE AIR CONDITIONING UNIT". Removal

2. REMOVE INSTRUMENT PANEL REINFORCEMENT (for TMMK Made)
HINT: Refer the procedures up to "REMOVE AIR CONDITIONING UNIT". Removal

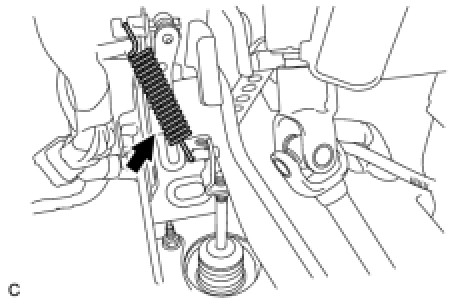

3. REMOVE BRAKE PEDAL RETURN SPRING

(a) Remove the brake pedal return spring.

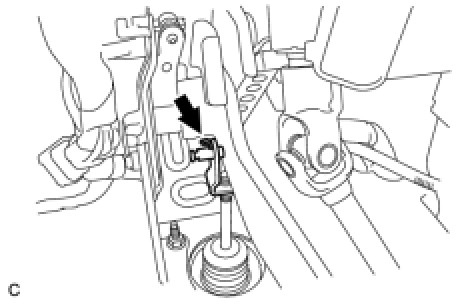

4. DISCONNECT MASTER CYLINDER PUSH ROD CLEVIS

(a) Remove the clip and clevis pin and disconnect the push rod clevis from the brake pedal.

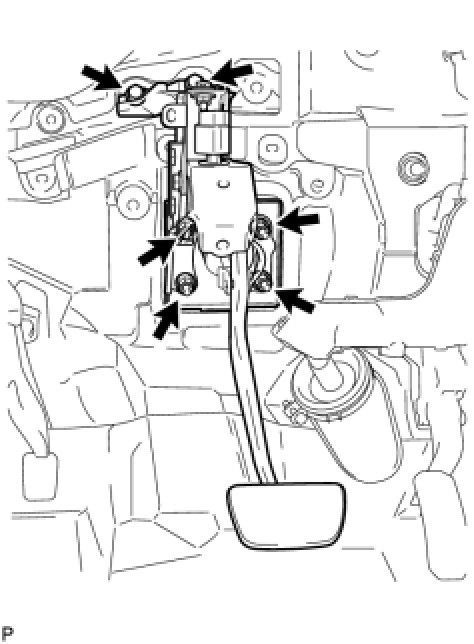

5. REMOVE BRAKE PEDAL ASSEMBLY

(a) Disconnect the connector from the stop light switch.

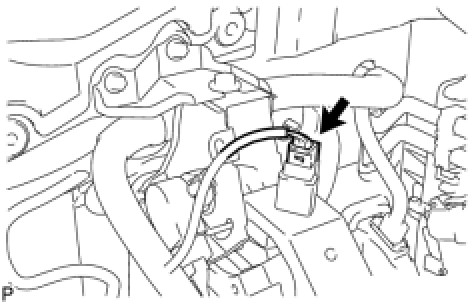

(b) Disconnect the connector from the pedal stroke sensor.
