Brakes and Traction Control: Description and Operation

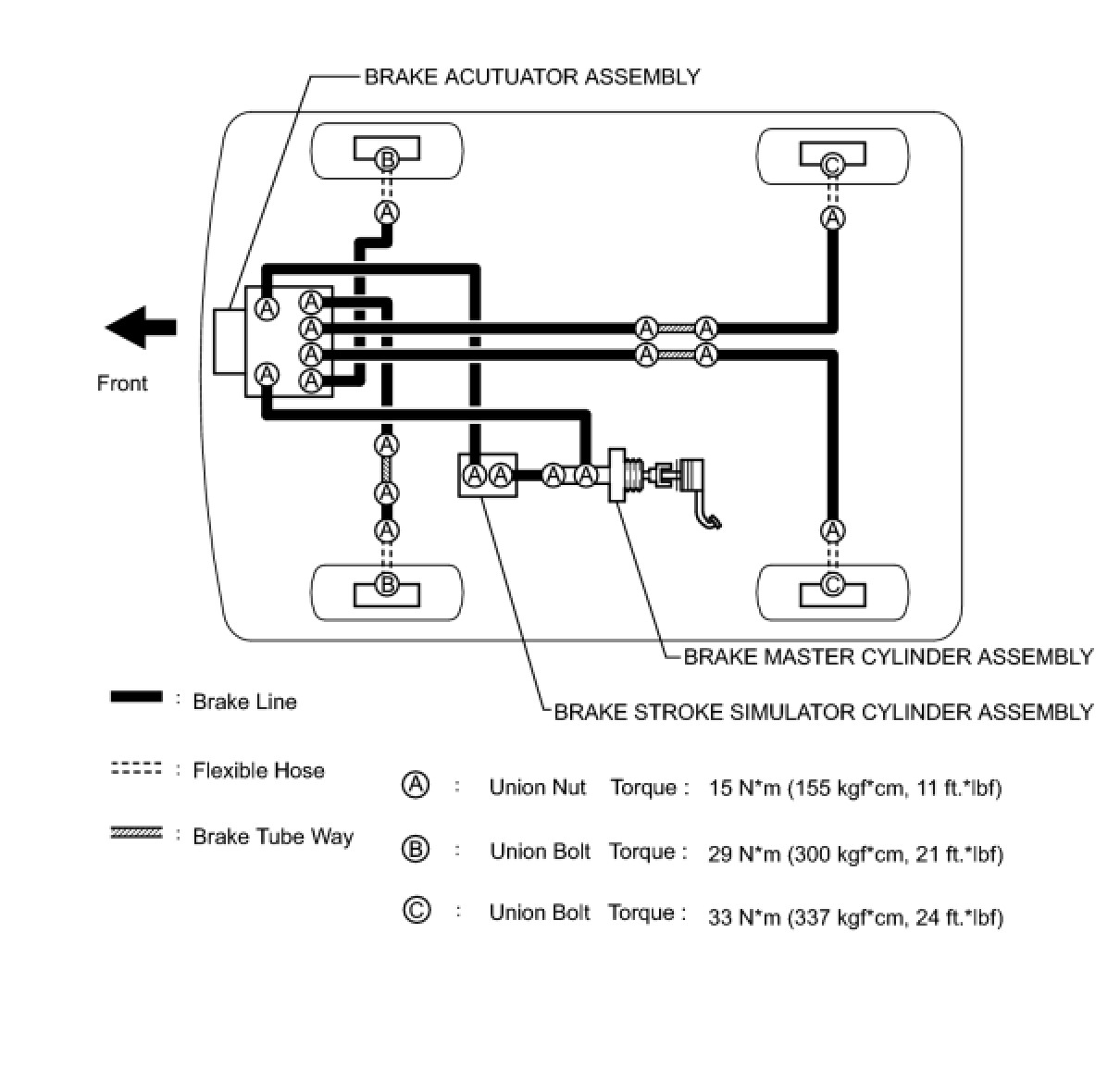

BRAKE: BRAKE SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
