Removal

BRAKE: REAR BRAKE: REMOVAL

REMOVAL
NOTICE: When the brake caliper is removed from the brake disc, do not start the hybrid system. If the hybrid system is started, the brake fluid pressure may increase.
HINT:
- Use the same procedures for the LH side and RH side.
- The procedure listed below are for the LH side.

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
NOTICE: If brake fluid leaks onto any painted surface, wash or remove it completely.

3. DISCONNECT REAR BRAKE FLEXIBLE HOSE

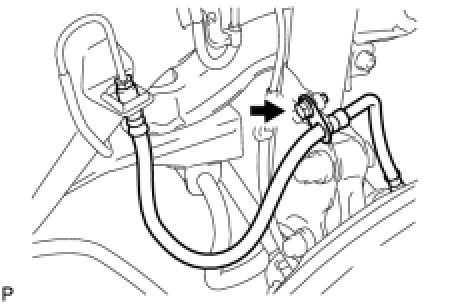

(a) Remove the bolt and separate the rear brake flexible hose from the shock absorber.





(b) Remove the union bolt and the gasket from the rear disc brake cylinder assembly, then disconnect the rear brake flexible hose.
4. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY





(a) Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly.
