Removal

BRAKE: FRONT BRAKE FLEXIBLE HOSE: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
3. REMOVE FRONT BRAKE FLEXIBLE HOSE

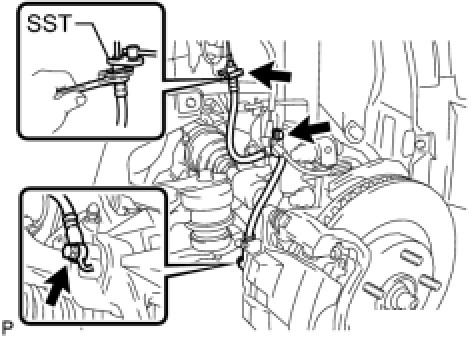

(a) Remove the clip.
(b) Remove the brake line with SST while holding the front brake flexible hose with a wrench.
SST: 09023-00101
NOTICE:
- Do not bend or damage the brake line.
- Do not allow any foreign matter such as dirt and dust to enter the brake line from the connecting points.

(c) Remove the bolt, and separate the front brake flexible hose and the speed sensor from the shock absorber.
(d) Remove the union bolt, the front brake flexible hose and gasket.
