Disassembly

BRAKE: BRAKE STROKE SIMULATOR CYLINDER: DISASSEMBLY

DISASSEMBLY

1. REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY





(a) Disconnect the connector from the brake stroke simulator bracket.

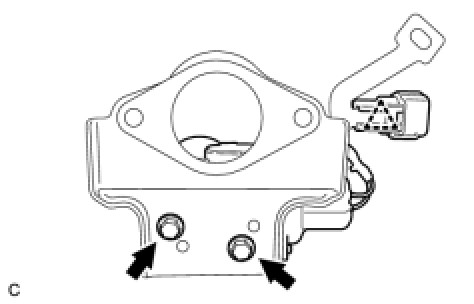

(b) Remove the 2 bolts and the brake stroke simulator cylinder sub-assembly from the brake stroke simulator bracket.
