Disposal

BRAKE CONTROL: BRAKE ACTUATOR: DISPOSAL

DISPOSAL

1. DISPOSE OF BRAKE ACTUATOR ASSEMBLY

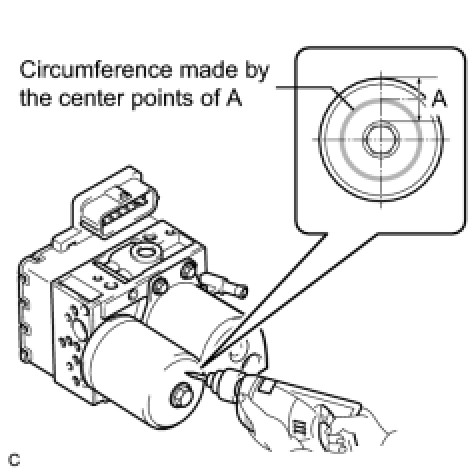

(a) Using a drill, slowly make a hole on the circumference made by the center points of A and discharge the gas.
CAUTION: Be sure to wear protective glasses to protect the eyes from fragments that may become airborne due to high pressure.
HINT :
- The hole may be drilled up to approximately 5 to 10 mm (0.20 to 0.39 in.) away from the circumference made by the center point of A without problem.
- The gas is nitrogen, which is colorless, odorless, and harmless.
