Inspection

BRAKE CONTROL: BRAKE ACTUATOR: INSPECTION

INSPECTION

1. INSPECT BRAKE ACTUATOR ASSEMBLY

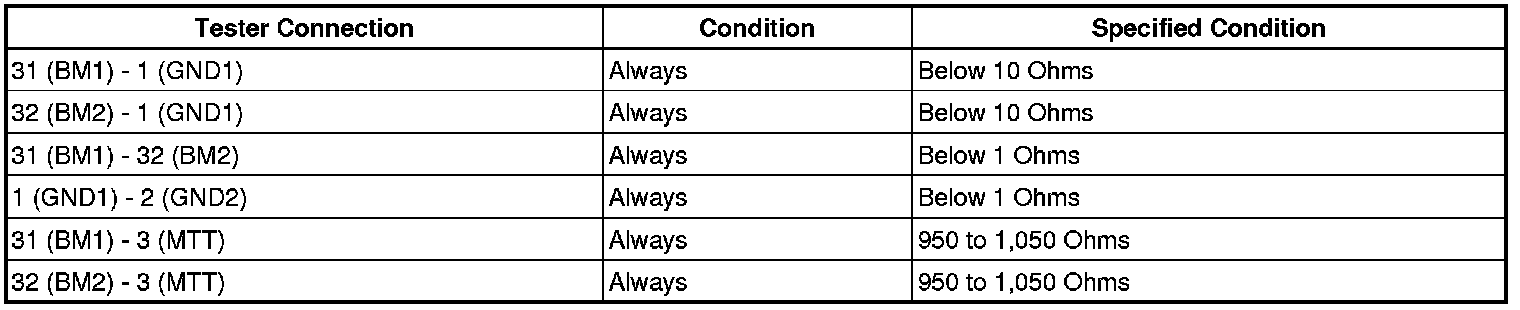

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the value is not as specified, replace the brake actuator assembly.
