Home >> Toyota >> 2009 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Cable >> Service and Repair >> Components

Components

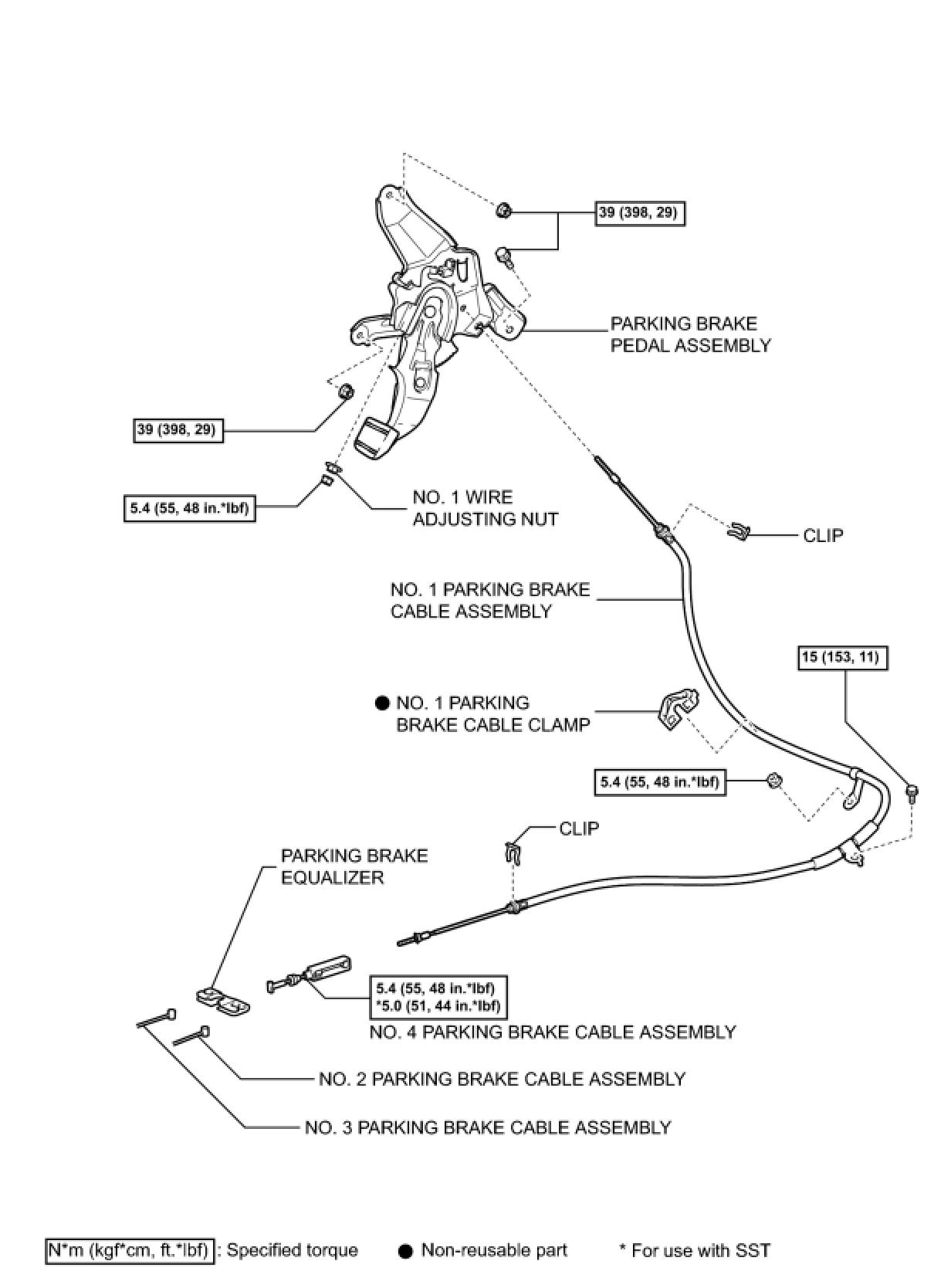

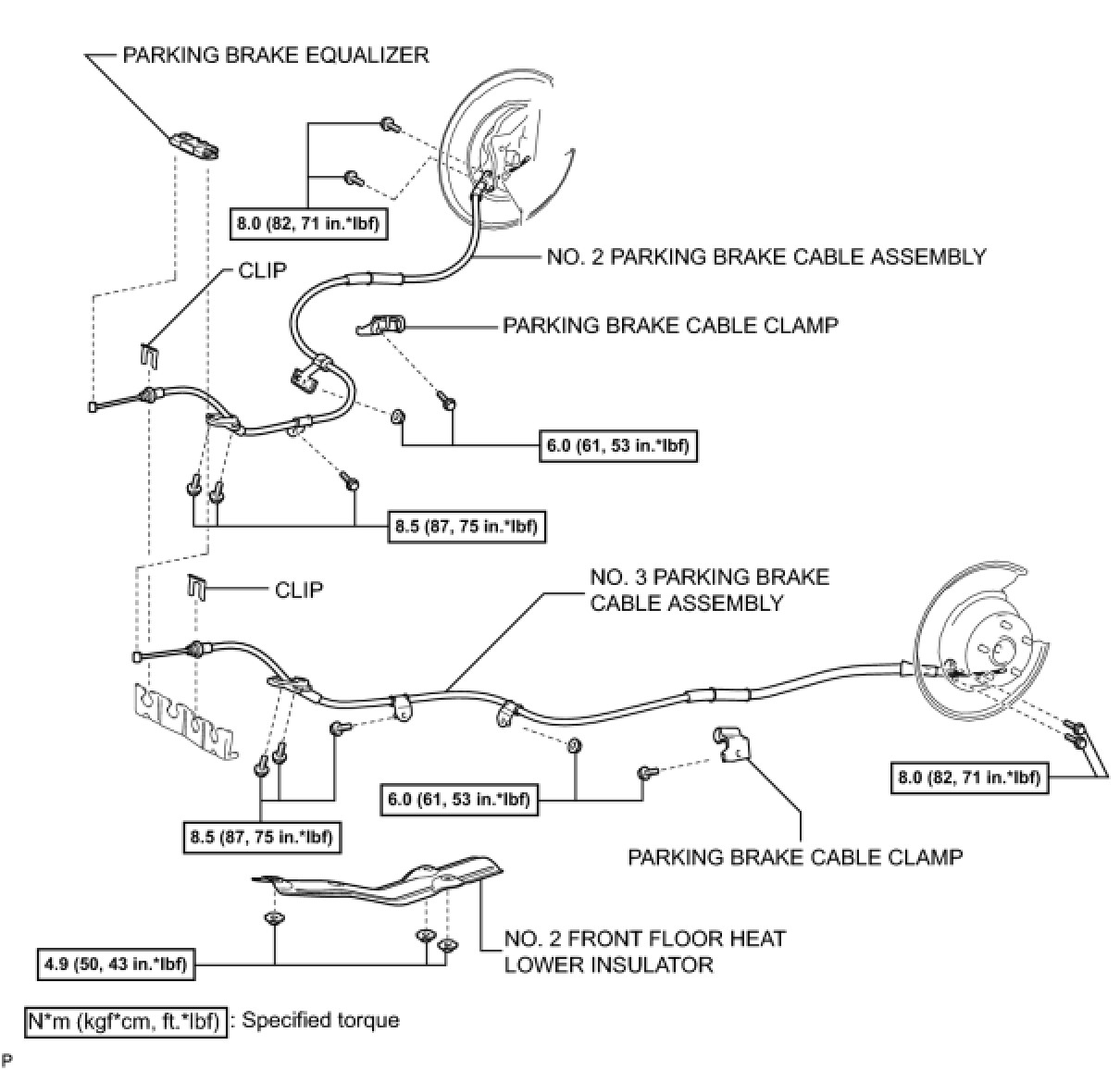

PARKING BRAKE: PARKING BRAKE CABLE: COMPONENTS

COMPONENTS

ILLUSTRATION
