Home >> Toyota >> 2009 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Brakes and Traction Control >> Relays and Modules - Brakes and Traction Control >> Brake Fluid Pump Relay >> Locations

Brake Fluid Pump Relay: Locations

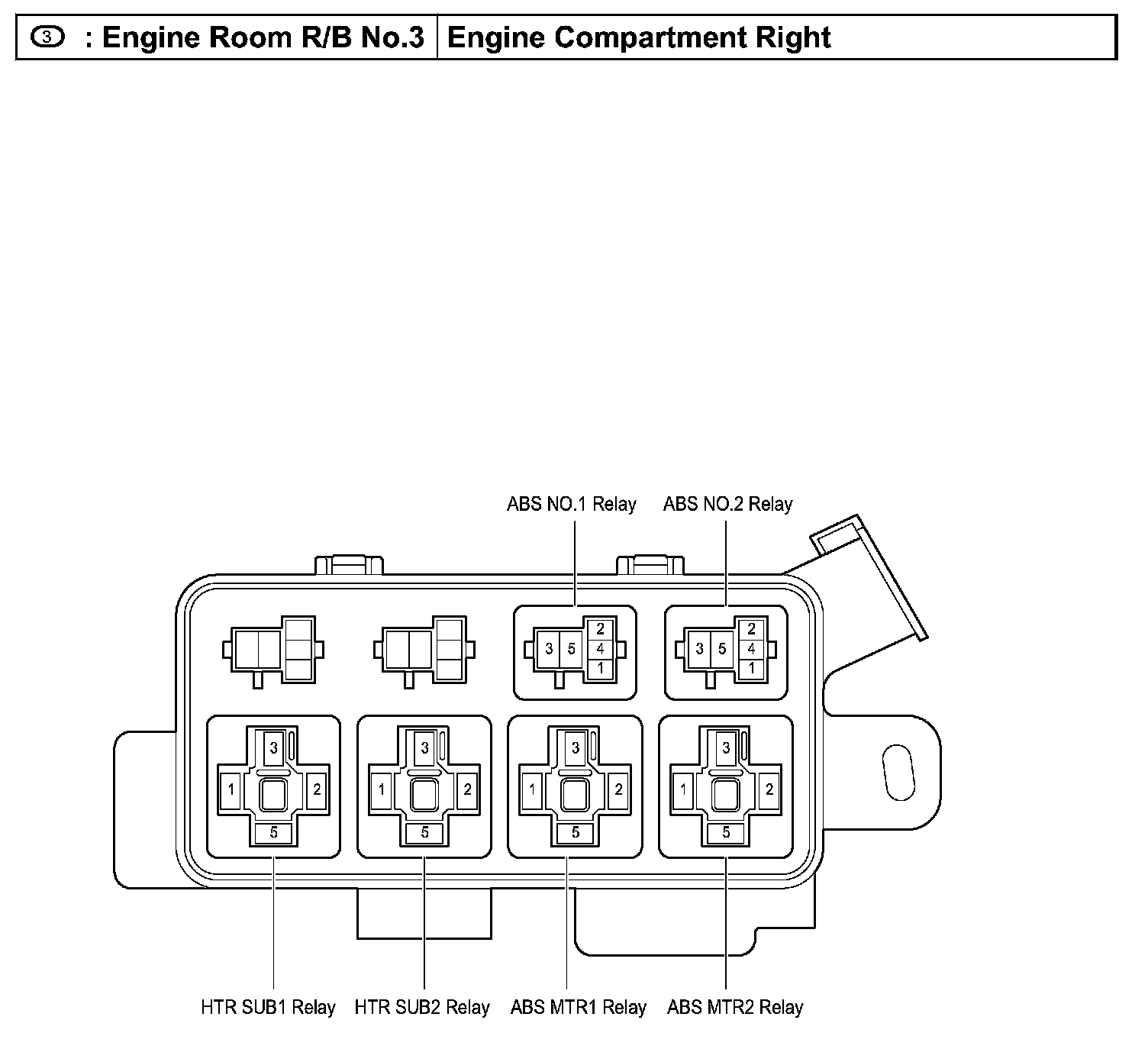

Engine Room R/B No.3 - Engine Compartment Right:
