Brake Fluid Pump Relay: Testing and Inspection

BRAKE CONTROL: ABS MOTOR RELAY: INSPECTION

INSPECTION

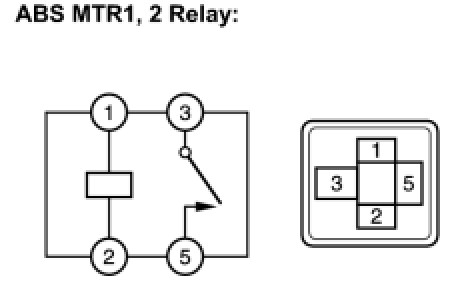

1. INSPECT ABS MOTOR RELAY

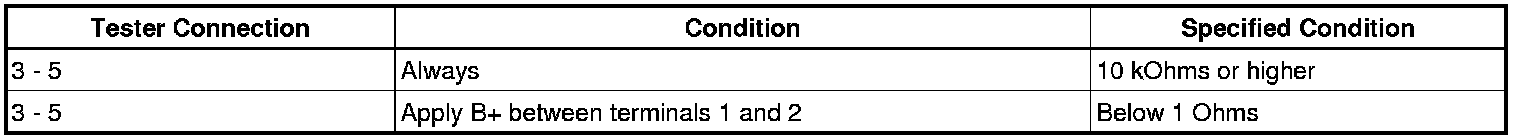

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the value is not as specified, replace the ABS MOTOR relay.
