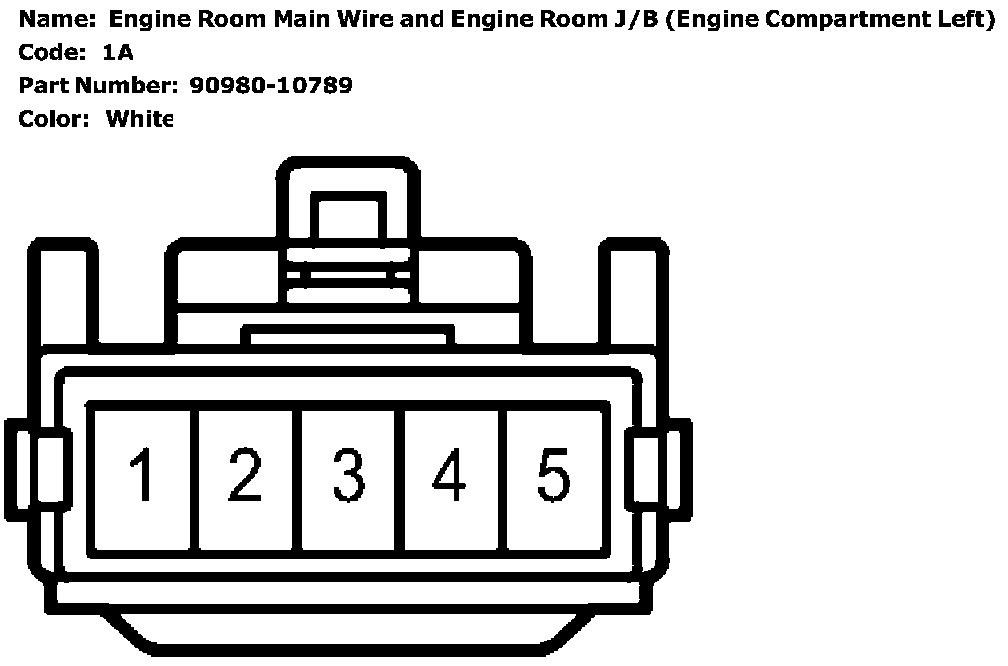

1A (Engine Room Main Wire and Engine Room J/B (Engine Compartment Left))
1A (Engine Room Main Wire and Engine Room J/B (Engine Compartment Left))
