Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

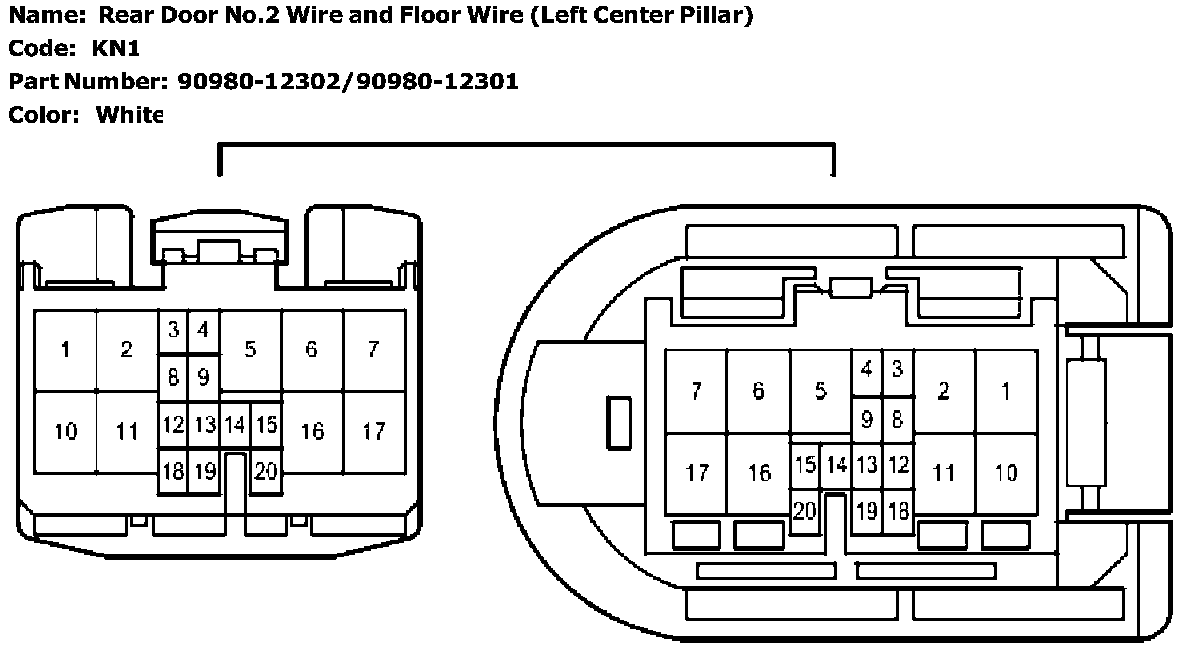

KN1 (Rear Door No.2 Wire and Floor Wire (Left Center Pillar))
KN1 (Rear Door No.2 Wire and Floor Wire (Left Center Pillar))
