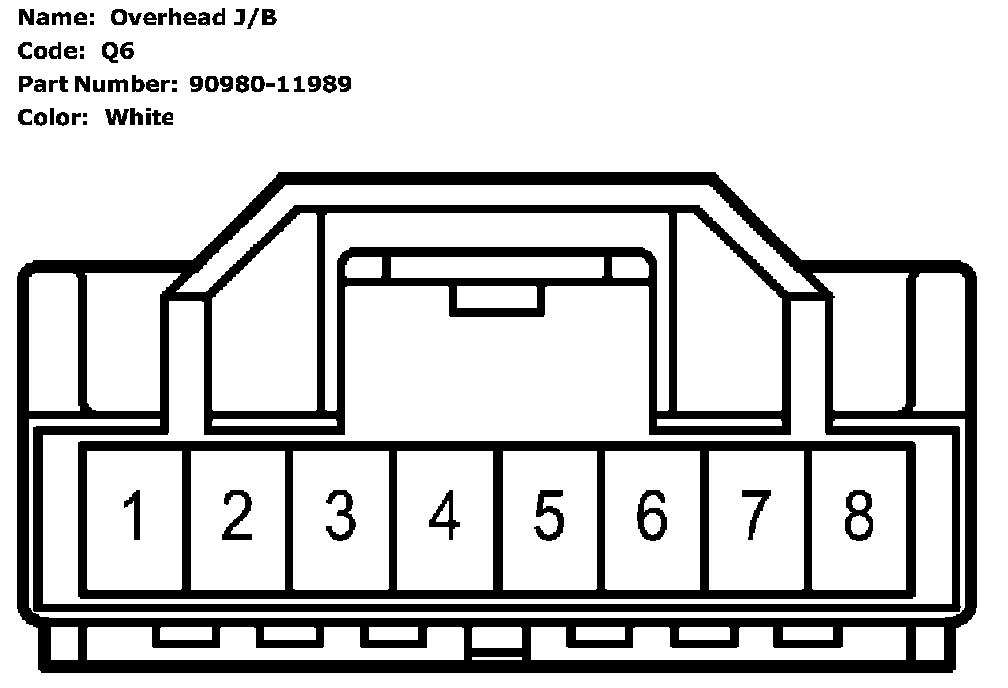

Q6 (Overhead J/B)

Overhead J/B:

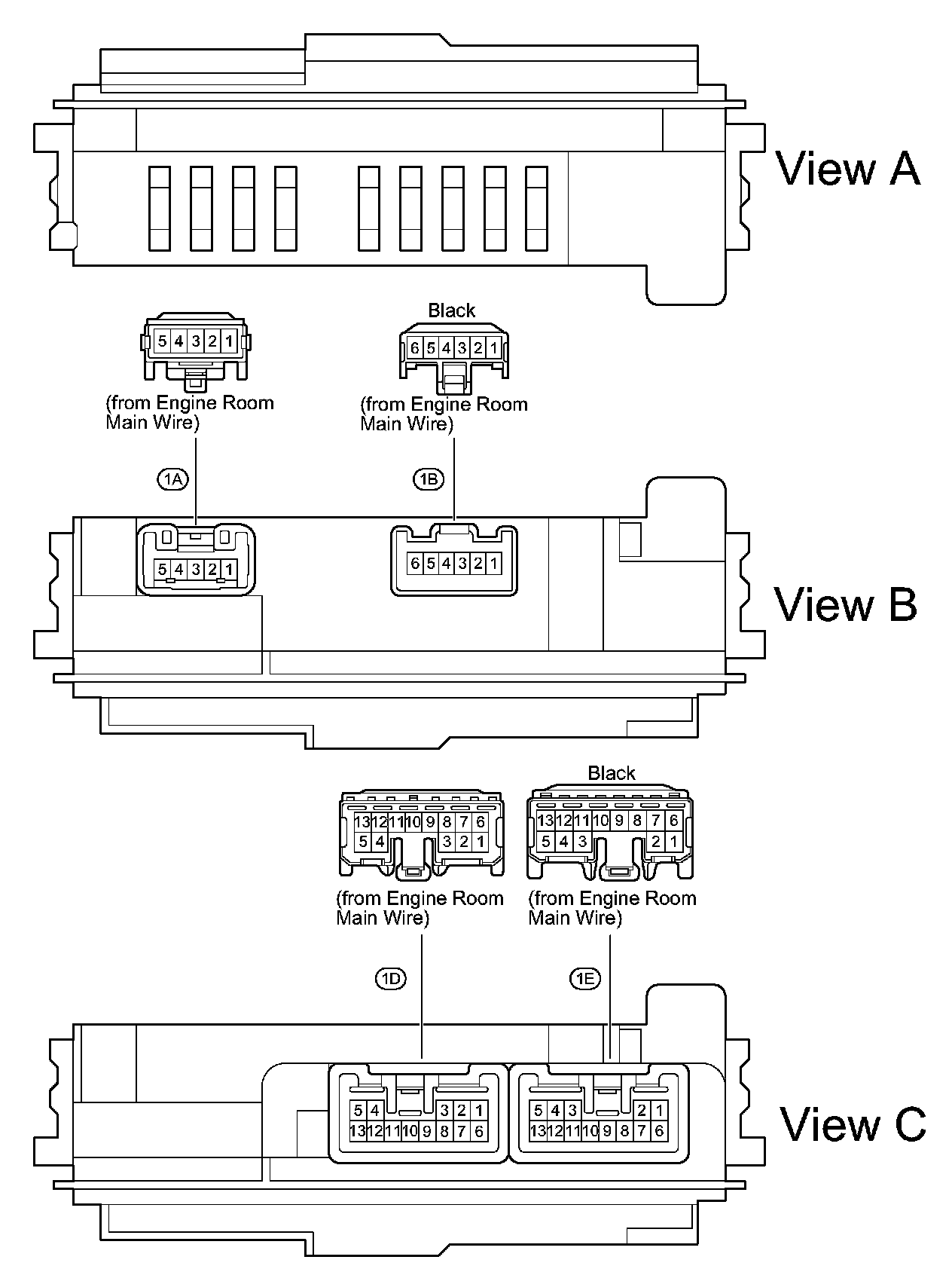

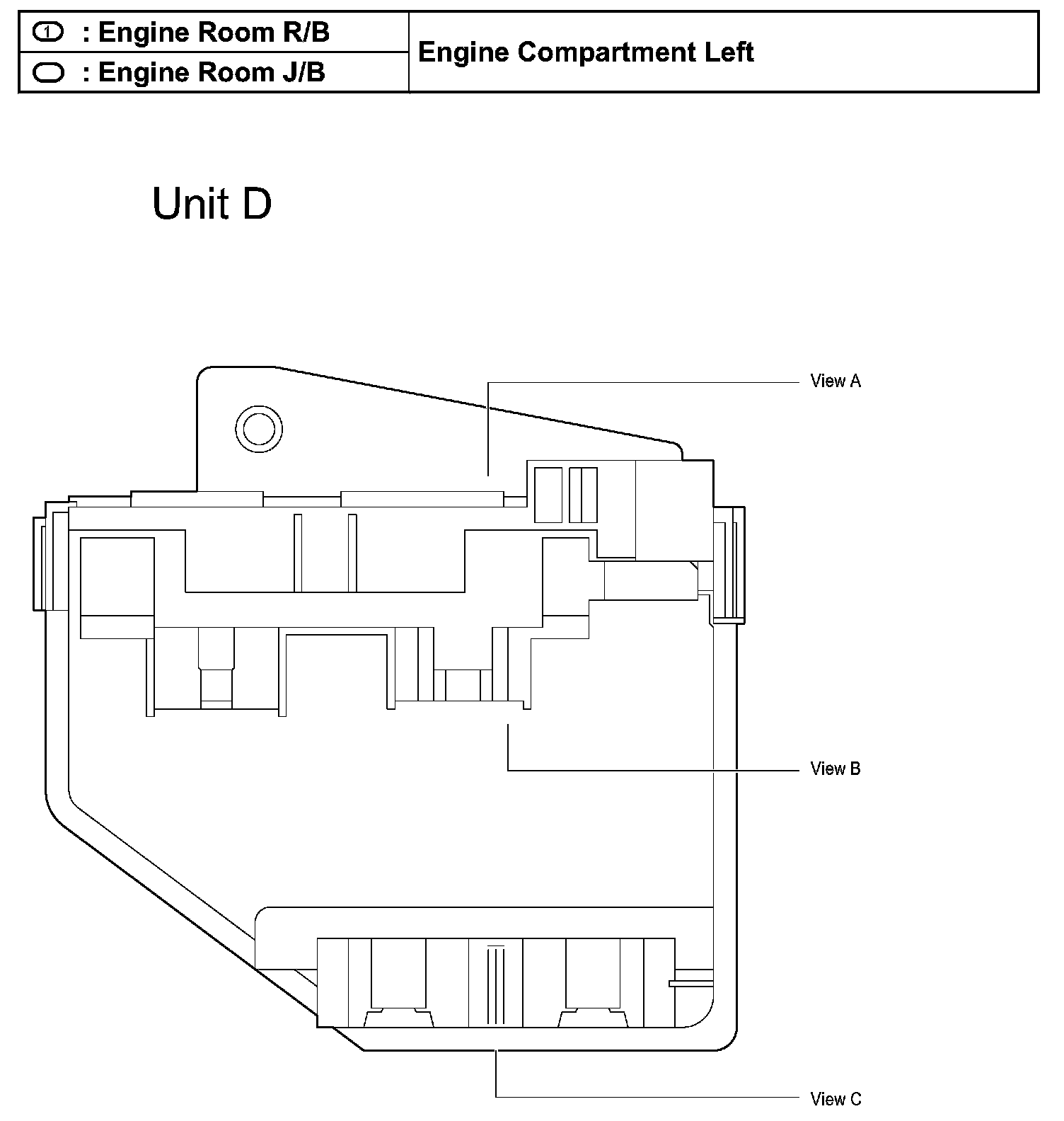

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

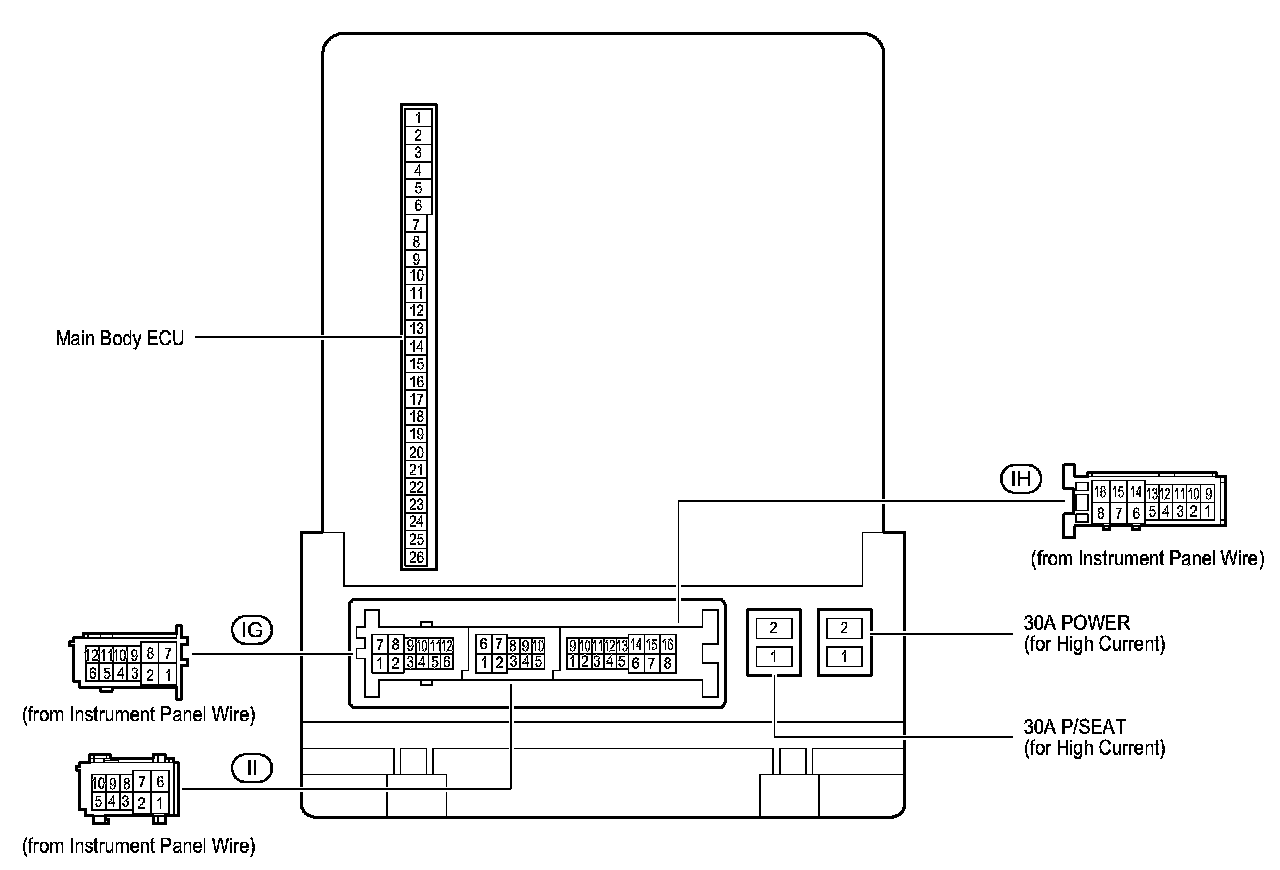

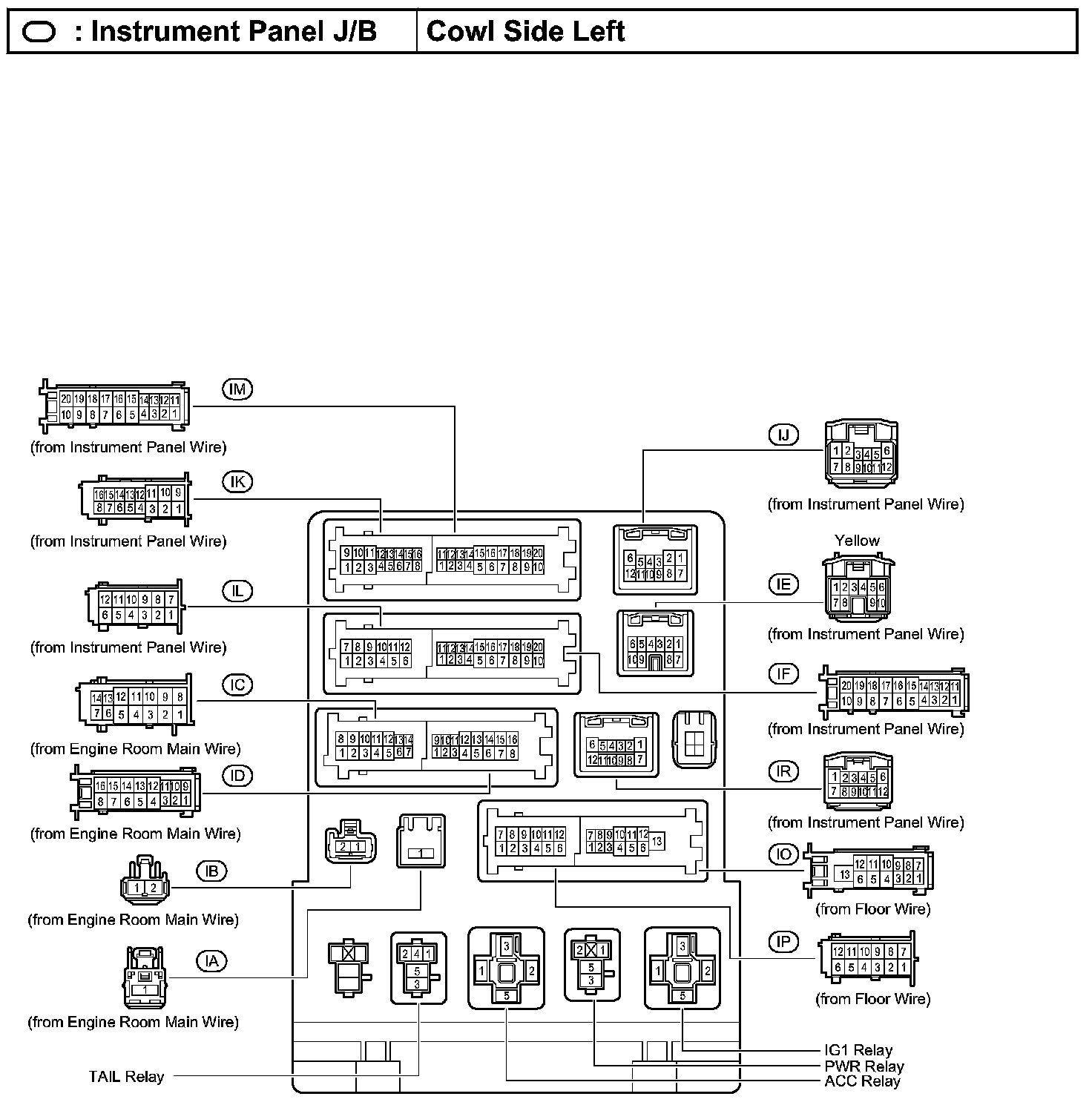

Instrument Panel J/B - Cowl Side Left:

Instrument Panel J/B - Cowl Side Left:

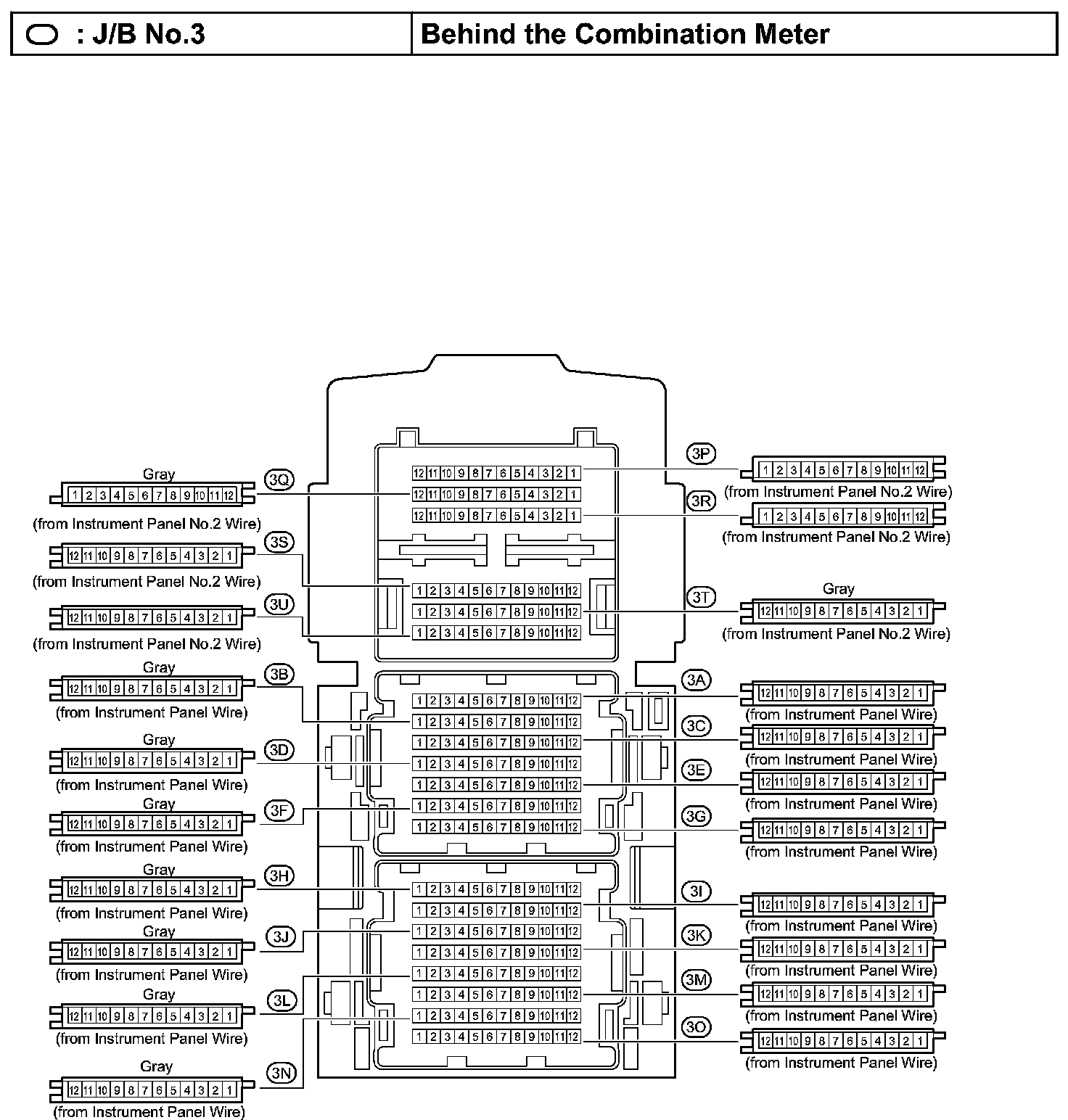

J/B No.3 - Behind The Combination Meter:

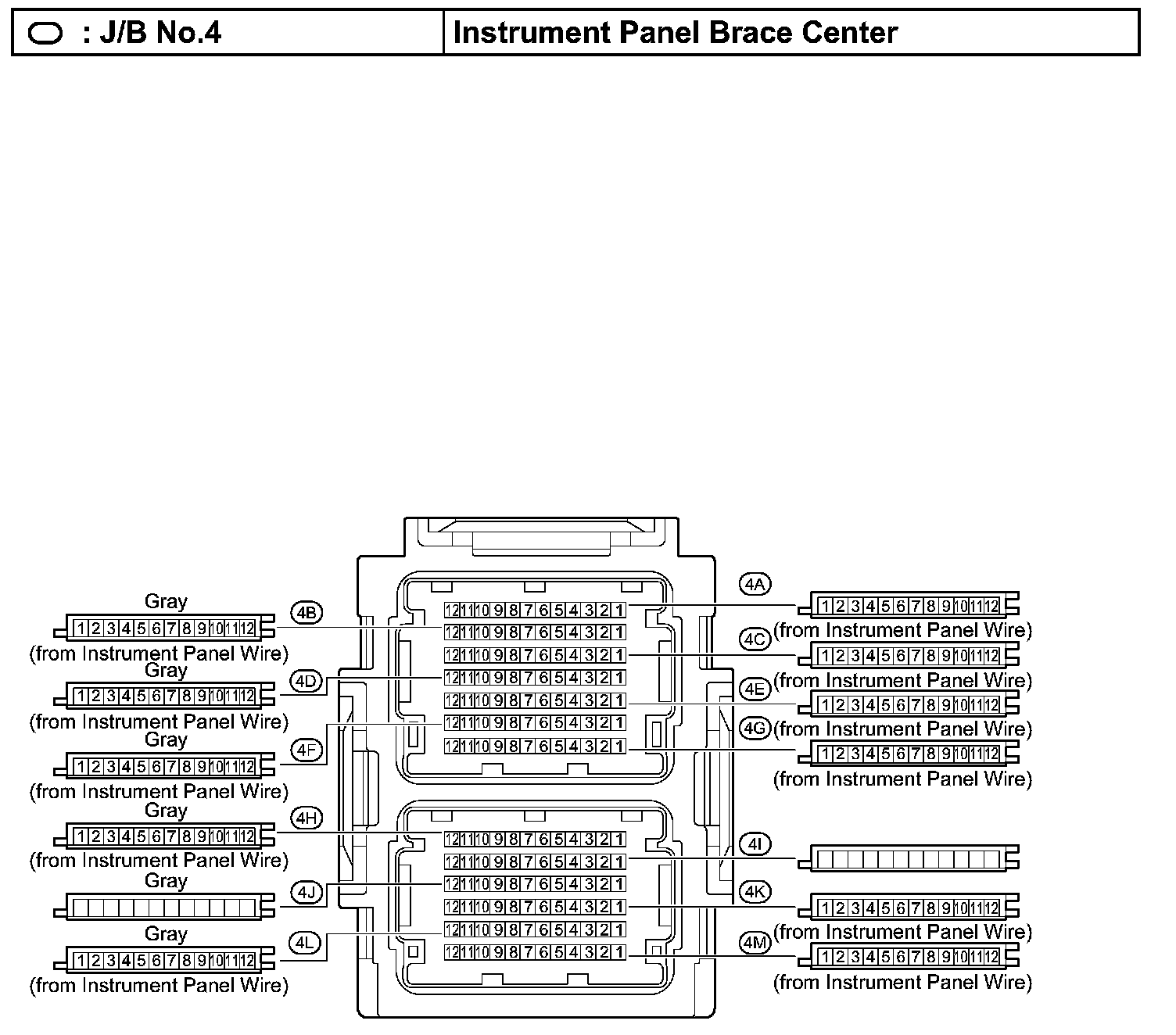

J/B No.4 - Instrument Panel Brace Center:

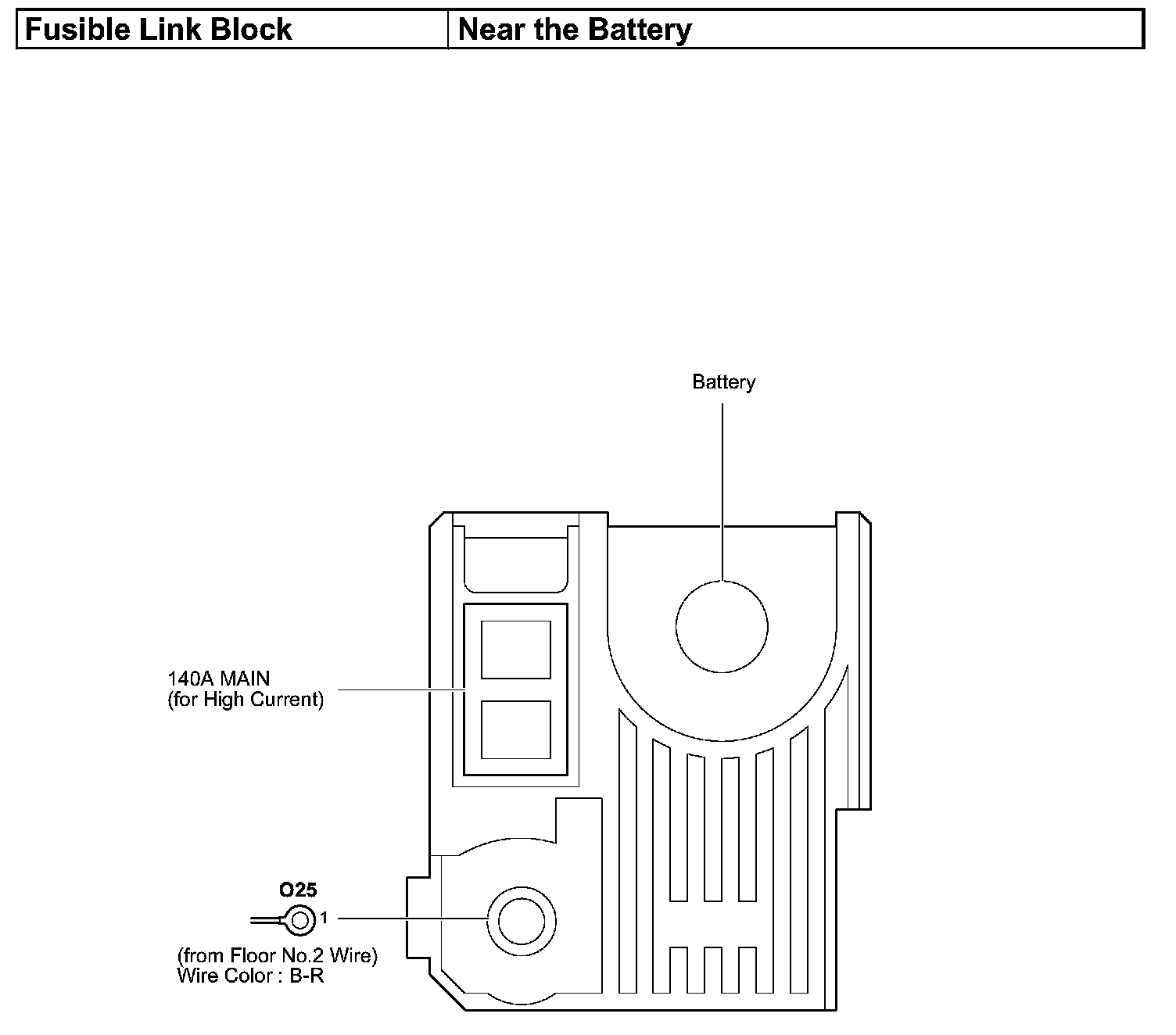

Fusible Link Block - Near The Battery:

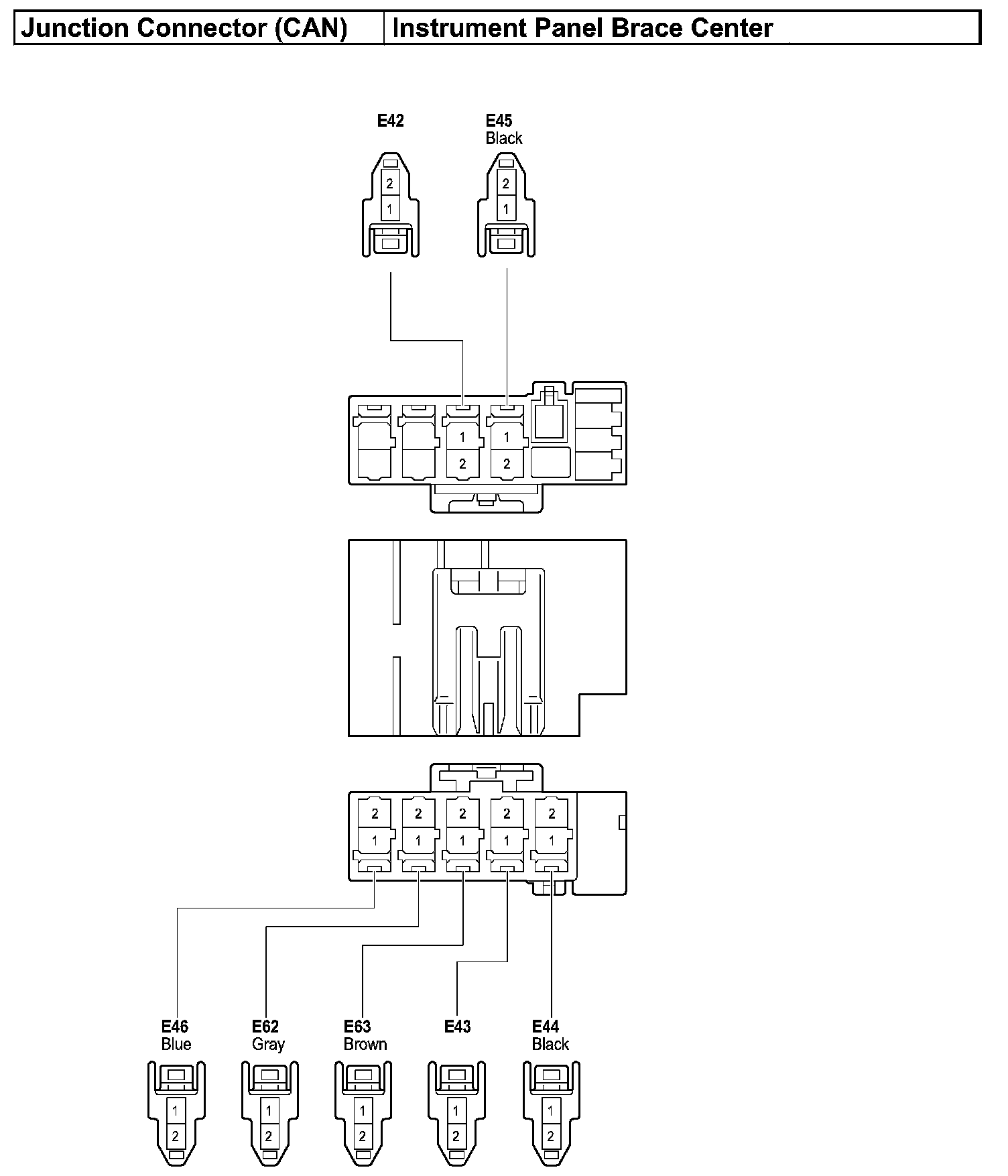

Junction Connector (CAN) - Instrument Panel Brace Center:
